Search › Model › V10
V10

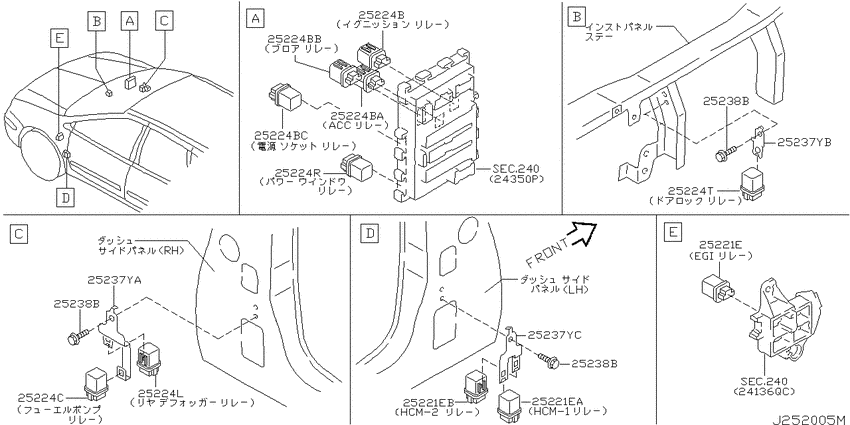

Relay (2000-03-01 ~ 2000-04-01; ﾎﾞﾃﾞｲｰ; W.QG18EM29) 8
| # | OEM | Part name |
|---|---|---|
| 25221 | 25230-79964 | Relay |
| 25224 | 25230-79915 | Relay-Egi |
| 25224 | 25230-79945 | Relay |
| 25224 | 25230-79971 | Relay |
| 25237 | 25238-4U011 | Bracket-Relay |
| 25237 | 25238-4U020 | Bracket-Relay |
| 25237 | 25238-5U300 | Bracket-Relay |
| 25238 | 01456-00641 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01456-00641 | SCREW | Relay (2000-03-01 ~ 2000-04-01; ﾎﾞﾃﾞｲｰ; W.QG18EM29) |
| 25230-79915 | Relay-Egi | Relay (2000-03-01 ~ 2000-04-01; ﾎﾞﾃﾞｲｰ; W.QG18EM29) |
| 25230-79945 | Relay | Relay (2000-03-01 ~ 2000-04-01; ﾎﾞﾃﾞｲｰ; W.QG18EM29) |
| 25230-79964 | Relay | Relay (2000-03-01 ~ 2000-04-01; ﾎﾞﾃﾞｲｰ; W.QG18EM29) |
| 25230-79971 | Relay | Relay (2000-03-01 ~ 2000-04-01; ﾎﾞﾃﾞｲｰ; W.QG18EM29) |
| 25238-4U011 | Bracket-Relay | Relay (2000-03-01 ~ 2000-04-01; ﾎﾞﾃﾞｲｰ; W.QG18EM29) |
| 25238-4U020 | Bracket-Relay | Relay (2000-03-01 ~ 2000-04-01; ﾎﾞﾃﾞｲｰ; W.QG18EM29) |
| 25238-5U300 | Bracket-Relay | Relay (2000-03-01 ~ 2000-04-01; ﾎﾞﾃﾞｲｰ; W.QG18EM29) |
