Search › Model › V10
V10

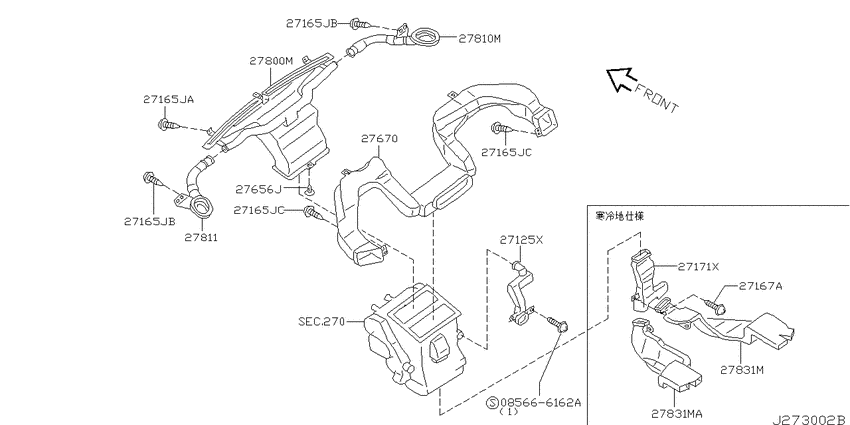

Nozzle & duct (2000-03-01 ~ 2002-10-01; W.QG18EM29) 9
| # | OEM | Part name |
|---|---|---|
| 27125 | 27836-4U000 | Duct-Foot |
| 27167 | 01456-00641 | SCREW |
| 27171 | 27830-4U000 | Duct-Heater |
| 27670 | 27860-4U000 | Duct-Ventilator, Center |
| 27800 | 27800-4U000 | Nozzle-Defrostor |
| 27810 | 27810-4U000 | Nozzle-Side Defroster Driver |
| 27811 | 27811-4U000 | Nozzle-Side Defroster Assist |
| 27831 | 27831-5U300 | Duct-Heater Floor 2Nd |
| 27831 | 27831-5U310 | Duct-Heater Floor 2Nd |
| OEM | Part name | Category |
|---|---|---|
| 01456-00641 | SCREW | Nozzle & duct (2000-03-01 ~ 2002-10-01; W.QG18EM29) |
| 27800-4U000 | Nozzle-Defrostor | Nozzle & duct (2000-03-01 ~ 2002-10-01; W.QG18EM29) |
| 27810-4U000 | Nozzle-Side Defroster Driver | Nozzle & duct (2000-03-01 ~ 2002-10-01; W.QG18EM29) |
| 27811-4U000 | Nozzle-Side Defroster Assist | Nozzle & duct (2000-03-01 ~ 2002-10-01; W.QG18EM29) |
| 27830-4U000 | Duct-Heater | Nozzle & duct (2000-03-01 ~ 2002-10-01; W.QG18EM29) |
| 27831-5U300 | Duct-Heater Floor 2Nd | Nozzle & duct (2000-03-01 ~ 2002-10-01; W.QG18EM29) |
| 27831-5U310 | Duct-Heater Floor 2Nd | Nozzle & duct (2000-03-01 ~ 2002-10-01; W.QG18EM29) |
| 27836-4U000 | Duct-Foot | Nozzle & duct (2000-03-01 ~ 2002-10-01; W.QG18EM29) |
| 27860-4U000 | Duct-Ventilator, Center | Nozzle & duct (2000-03-01 ~ 2002-10-01; W.QG18EM29) |
