Search › Model › V10
V10

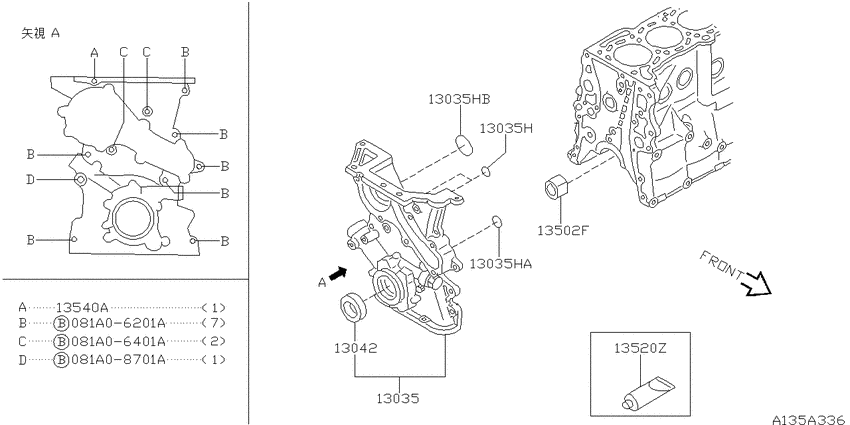

Front cover & fitting (2002-10-01 ~ ; QG18DE) 6
| # | OEM | Part name |
|---|---|---|
| 13035 | 13500-4M501 | Cover Assy-Front |
| 13035 | 15066-5E500 | Seal-O Ring |
| 13042 | 13510-50B01 | Seal-Oil, Crankshaft Front |
| 13042 | 13510-50B11 | Seal-Oil, Crankshaft Front |
| 13042 | 13510-V7202 | Seal-Oil, Crankshaft Front |
| 13540 | 13505-4M500 | Bolt-Front Cover |
| OEM | Part name | Category |
|---|---|---|
| 13500-4M501 | Cover Assy-Front | Front cover & fitting (2002-10-01 ~ ; QG18DE) |
| 13505-4M500 | Bolt-Front Cover | Front cover & fitting (2002-10-01 ~ ; QG18DE) |
| 13510-50B01 | Seal-Oil, Crankshaft Front | Front cover & fitting (2002-10-01 ~ ; QG18DE) |
| 13510-50B11 | Seal-Oil, Crankshaft Front | Front cover & fitting (2002-10-01 ~ ; QG18DE) |
| 13510-V7202 | Seal-Oil, Crankshaft Front | Front cover & fitting (2002-10-01 ~ ; QG18DE) |
| 15066-5E500 | Seal-O Ring | Front cover & fitting (2002-10-01 ~ ; QG18DE) |
