V10

Nissan TINO · 1998 · 4,273 parts · 809 categories

4,273 items

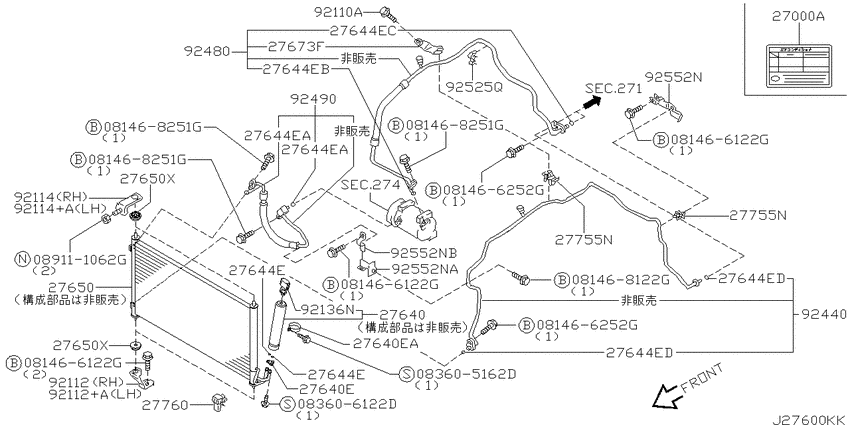

air conditioner (engine room) (2002-10-01 ~ ; W) 25

#	OEM	Part name
27000	27090-79910	Label-Air Conditioner
27640	92131-4M420	Tank Assy-Liquid
27640	92135-4M400	Bracket-Liquid Tank
27644	92471-N8210	O Ring
27650	92110-5U600	Condenser Assy
27673	92557-4M400	Protector-Clamp Tube
27673	92557-4M40A	Bracket-Pipe
27760	27722-31U00	Sensor Assy-Ambient
92110	01436-01261	SCREW
92114	92114-4U000	Bracket-Condenser
92114	92114-4U010	Bracket-Condenser
92136	92136-6J000	Sensor Assy-Pressure
92136	92136-6J001	Sensor Assy-Pressure
92440	92440-4U000	Pipe-Front Cooler, High
92480	92480-4U001	Hose-Flexible, Low
92490	92490-4U001	Hose-Flexible, High
92525	92551-64Y01	Clip
92552	92552-4M400	Bracket-Tube Clip
92552	92552-4M401	Bracket-Tube Clip
92552	92552-4M40A	Bracket-Tube Clip
92552	92552-6J000	Bracket-Tube Clip
92552	92553-4M400	Bracket-Tube Clip
81468122	08146-8122G	Bolt-hexagon
83605162	08360-5162D	スクリユ-,マシン
83606122	08360-6122D	Screw

OEM	Part name	Category
01436-01261	SCREW	air conditioner (engine room) (2002-10-01 ~ ; W)
08146-8122G	Bolt-hexagon	air conditioner (engine room) (2002-10-01 ~ ; W)
08360-5162D	スクリユ-,マシン	air conditioner (engine room) (2002-10-01 ~ ; W)
08360-6122D	Screw	air conditioner (engine room) (2002-10-01 ~ ; W)
27090-79910	Label-Air Conditioner	air conditioner (engine room) (2002-10-01 ~ ; W)
27722-31U00	Sensor Assy-Ambient	air conditioner (engine room) (2002-10-01 ~ ; W)
92110-5U600	Condenser Assy	air conditioner (engine room) (2002-10-01 ~ ; W)
92114-4U000	Bracket-Condenser	air conditioner (engine room) (2002-10-01 ~ ; W)
92114-4U010	Bracket-Condenser	air conditioner (engine room) (2002-10-01 ~ ; W)
92131-4M420	Tank Assy-Liquid	air conditioner (engine room) (2002-10-01 ~ ; W)
92135-4M400	Bracket-Liquid Tank	air conditioner (engine room) (2002-10-01 ~ ; W)
92136-6J000	Sensor Assy-Pressure	air conditioner (engine room) (2002-10-01 ~ ; W)
92136-6J001	Sensor Assy-Pressure	air conditioner (engine room) (2002-10-01 ~ ; W)
92440-4U000	Pipe-Front Cooler, High	air conditioner (engine room) (2002-10-01 ~ ; W)
92471-N8210	O Ring	air conditioner (engine room) (2002-10-01 ~ ; W)
92480-4U001	Hose-Flexible, Low	air conditioner (engine room) (2002-10-01 ~ ; W)
92490-4U001	Hose-Flexible, High	air conditioner (engine room) (2002-10-01 ~ ; W)
92551-64Y01	Clip	air conditioner (engine room) (2002-10-01 ~ ; W)
92552-4M400	Bracket-Tube Clip	air conditioner (engine room) (2002-10-01 ~ ; W)
92552-4M401	Bracket-Tube Clip	air conditioner (engine room) (2002-10-01 ~ ; W)
92552-4M40A	Bracket-Tube Clip	air conditioner (engine room) (2002-10-01 ~ ; W)
92552-6J000	Bracket-Tube Clip	air conditioner (engine room) (2002-10-01 ~ ; W)
92553-4M400	Bracket-Tube Clip	air conditioner (engine room) (2002-10-01 ~ ; W)
92557-4M400	Protector-Clamp Tube	air conditioner (engine room) (2002-10-01 ~ ; W)
92557-4M40A	Bracket-Pipe	air conditioner (engine room) (2002-10-01 ~ ; W)
