V10

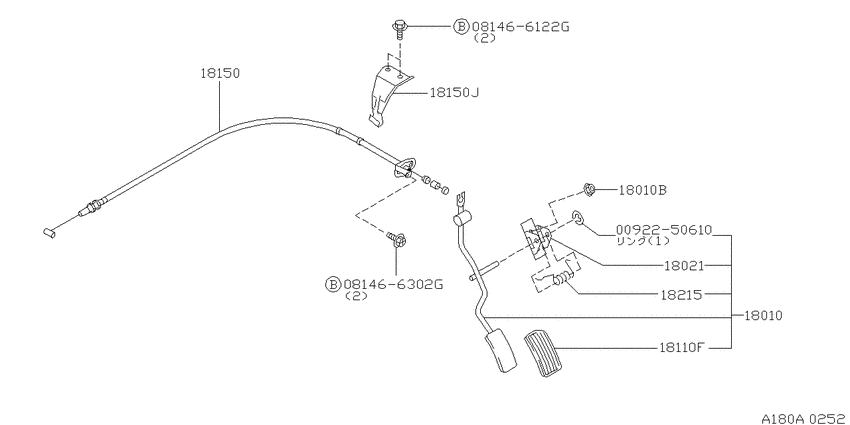

Accelerator linkage (1998-12-01 ~ 2002-10-01; QG18DE) 9
| # | OEM | Part name |
|---|---|---|
| 18010 | 18005-4U000 | Lever Assy-Pedal |
| 18010 | 18005-4U005 | Lever Assy-Pedal |
| 18021 | 18021-4M400 | Bracket-Pedal Lever |
| 18021 | 18021-4M900 | Bracket-Pedal Lever |
| 18110 | 18016-4M400 | Pad-Accelerator Pedal |
| 18150 | 18201-4M400 | Wire Assy-Accelerator |
| 18150 | 18201-4M403 | Wire Assy-Accelerator |
| 18150 | 18225-4U000 | Clip |
| 18215 | 18215-4M420 | Spring-Return |
| OEM | Part name | Category |
|---|---|---|
| 18005-4U000 | Lever Assy-Pedal | Accelerator linkage (1998-12-01 ~ 2002-10-01; QG18DE) |
| 18005-4U005 | Lever Assy-Pedal | Accelerator linkage (1998-12-01 ~ 2002-10-01; QG18DE) |
| 18016-4M400 | Pad-Accelerator Pedal | Accelerator linkage (1998-12-01 ~ 2002-10-01; QG18DE) |
| 18021-4M400 | Bracket-Pedal Lever | Accelerator linkage (1998-12-01 ~ 2002-10-01; QG18DE) |
| 18021-4M900 | Bracket-Pedal Lever | Accelerator linkage (1998-12-01 ~ 2002-10-01; QG18DE) |
| 18201-4M400 | Wire Assy-Accelerator | Accelerator linkage (1998-12-01 ~ 2002-10-01; QG18DE) |
| 18201-4M403 | Wire Assy-Accelerator | Accelerator linkage (1998-12-01 ~ 2002-10-01; QG18DE) |
| 18215-4M420 | Spring-Return | Accelerator linkage (1998-12-01 ~ 2002-10-01; QG18DE) |
| 18225-4U000 | Clip | Accelerator linkage (1998-12-01 ~ 2002-10-01; QG18DE) |
