Search › Model › UZZ40

UZZ40

Toyota SOARER · 2001 · 6,374 parts · 197 categories

6,374 items

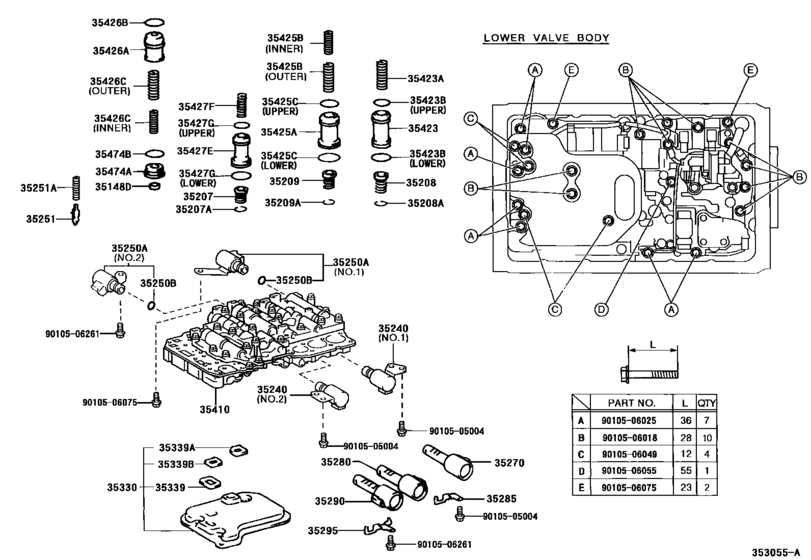

Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508)) 52

#	OEM	Part name
35148	35148-16010	Gasket (For Automatic Transfer Case)
35207	35207-50010	Spring Sub-Assy, B-0 Accumulator
35207	90521-22004	Ring, Hole Snap (For B-3 Accumulator Spring)
35208	35208-22010	Spring Sub-Assy, B-2 Accumulator
35209	35209-24010	Spring Sub-Assy, C-2 Accumulator
35240	35240-50010	Solenoid Assy, Automatic Transmission 3Way
35240	35240-50020	Solenoid Assy, Automatic Transmission 3Way
35250	35250-50010	Solenoid Assy, Transmission, No.3
35250	35250-50030	Valve, Solenoid(S4)
35250	90301-06004	Ring, O No.3(For Transmission Solenoid)
35251	35251-30020	Body, Check Ball
35251	90501-03005	Spring, Compression (For Check Ball Body)
35270	35270-30030	Solenoid Assy, Shift Control
35280	35280-30040	Solenoid Assy, Lock Up Control
35285	35285-30060	Plate, Solenoid Lock
35290	35290-30040	Solenoid Assy, Line Pressure Control
35295	35295-30010	Plate, Solenoid Lock, No.2
35330	35330-30070	Strainer Assy, Valve Body Oil
35339	35339-30080	Gasket, Oil Strainer
35339	35339-30090	Gasket, Oil Strainer, No.1
35339	35339-30100	Gasket, Oil Strainer, No.1
35410	35410-50110	Body Assy, Transmission Valve
35423	35423-30030	Piston, B-2 Accumulator
35423	90501-25052	Spring, Compression (For B-2 Accumulator Piston)
35423	90301-23010	Ring (For Accumulator Piston No.1)
35423	90301-31010	Ring, O (For B-2 Accumulator Piston)
35425	35425-40010	Piston, C-2 Accumulator
35425	90501-23152	Spring, Compression (For C-2 Accumulator Piston)
35425	90501-28035	Spring, Compression (For C-2 Accumulator Piston)
35425	90903-01001	Ring, O (For C-2 Accumulator Piston)
35425	90903-01003	Ring, O (For C-2 Accumulator Piston)
35426	35426-51010	Piston, C-0 Accumulator
35426	90301-24010	Ring, O (For C-0 Accumulator Piston)
35426	90501-20163	Spring, Compression (For C-0 Accumulator Piston)
35426	90501-20167	Spring, Compression (For C-0 Accumulator Piston)
35427	35427-30040	Piston, B-0 Accumulator
35427	90905-01025	Spring, Compression (For B-0 Accumulator Piston)
35427	90301-20008	Ring, O (For C-2 Accumulator Piston)
35427	90301-26011	Ring, O (For C-3 Accumulator Piston)
35474	35474-30010	Cover, Accumulator
82125	82125-50040	Wire, Transmission
82125	96721-24018	Ring, O
91611	91611-B0616	Bolt(For Transaxle Case Receiver)
9010505004	90105-05004	New Genuine Part
9010506018	90105-06018	Bolt (For Throttle Valve Cam Set)
9010506025	90105-06025	New Genuine Part
9010506025	91511-C0635	BOLT, FLANGE
9010506049	90105-06049	Bolt(For Transmission Case No.2 Plate)
9010506055	90105-06055	New Genuine Part
9010506075	90105-06075	New Genuine Part
9010506075	91511-C0622	Strainer Bolt
9010506261	90105-06261	Bolt(For Manual Detent Spring)

OEM	Part name	Category
35148-16010	Gasket (For Automatic Transfer Case)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35207-50010	Spring Sub-Assy, B-0 Accumulator	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35208-22010	Spring Sub-Assy, B-2 Accumulator	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35209-24010	Spring Sub-Assy, C-2 Accumulator	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35240-50010	Solenoid Assy, Automatic Transmission 3Way	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35240-50020	Solenoid Assy, Automatic Transmission 3Way	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35250-50010	Solenoid Assy, Transmission, No.3	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35250-50030	Valve, Solenoid(S4)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35251-30020	Body, Check Ball	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35270-30030	Solenoid Assy, Shift Control	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35280-30040	Solenoid Assy, Lock Up Control	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35285-30060	Plate, Solenoid Lock	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35290-30040	Solenoid Assy, Line Pressure Control	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35295-30010	Plate, Solenoid Lock, No.2	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35330-30070	Strainer Assy, Valve Body Oil	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35339-30080	Gasket, Oil Strainer	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35339-30090	Gasket, Oil Strainer, No.1	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35339-30100	Gasket, Oil Strainer, No.1	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35410-50110	Body Assy, Transmission Valve	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35423-30030	Piston, B-2 Accumulator	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35425-40010	Piston, C-2 Accumulator	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35426-51010	Piston, C-0 Accumulator	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35427-30040	Piston, B-0 Accumulator	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
35474-30010	Cover, Accumulator	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
82125-50040	Wire, Transmission	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90105-05004	New Genuine Part	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90105-06018	Bolt (For Throttle Valve Cam Set)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90105-06025	New Genuine Part	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90105-06049	Bolt(For Transmission Case No.2 Plate)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90105-06055	New Genuine Part	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90105-06075	New Genuine Part	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90105-06261	Bolt(For Manual Detent Spring)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90301-06004	Ring, O No.3(For Transmission Solenoid)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90301-20008	Ring, O (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90301-23010	Ring (For Accumulator Piston No.1)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90301-24010	Ring, O (For C-0 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90301-26011	Ring, O (For C-3 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90301-31010	Ring, O (For B-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90501-03005	Spring, Compression (For Check Ball Body)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90501-20163	Spring, Compression (For C-0 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90501-20167	Spring, Compression (For C-0 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90501-23152	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90501-25052	Spring, Compression (For B-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90501-28035	Spring, Compression (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90521-22004	Ring, Hole Snap (For B-3 Accumulator Spring)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90903-01001	Ring, O (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90903-01003	Ring, O (For C-2 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
90905-01025	Spring, Compression (For B-0 Accumulator Piston)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
91511-C0622	Strainer Bolt	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
91511-C0635	BOLT, FLANGE	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
91611-B0616	Bolt(For Transaxle Case Receiver)	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
96721-24018	Ring, O	Valve Body & Oil Strainer (Atm) ([04.2001 - 08.2005] A650E (0104-0508))
