Search › Model › UZZ31

UZZ31

Toyota SOARER · 1991 · 7,480 parts · 237 categories

7,480 items

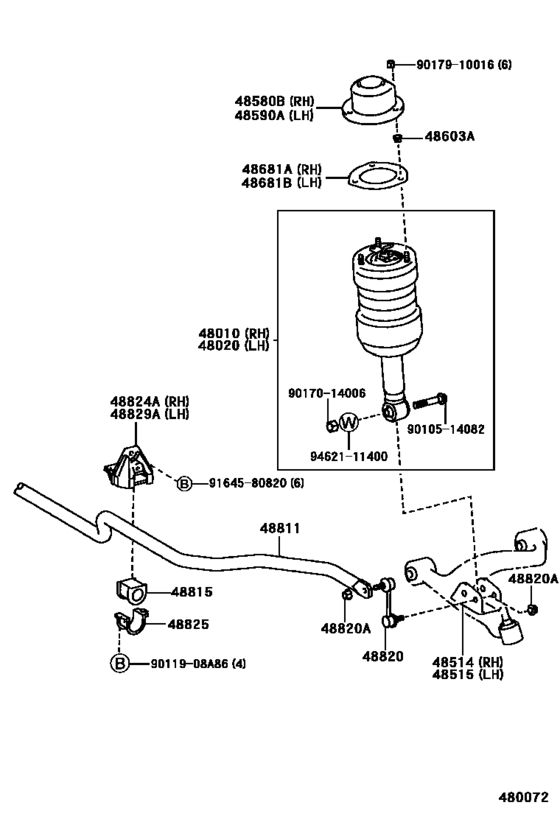

Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31) 38

#	OEM	Part name
48010	48010-29035	Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
48010	48010-24051	Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
48010	48010-29036	Cylinder Assy, Pneumatic, Front Rh W/shock Absorber
48020	48020-29015	Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
48020	48020-24031	Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
48020	48020-29016	Cylinder Assy, Pneumatic, Front Lh W/shock Absorber
48514	48514-24010	Bracket, Front Shock Absorber, Lower Rh
48515	48515-24010	Bracket, Front Shock Absorber, Lower Lh
48580	48553-24110	Cap Assy, Front Shock Absorber, Rh
48580	48553-24120	Cap Assy, Front Shock Absorber, Rh
48580	48580-24030	Cap Assy, Front Shock Absorber, Rh
48580	48580-24050	Cap Assy, Front Shock Absorber, Rh
48580	48580-24031	Cap Assy, Front Shock Absorber, Rh
48580	48580-50010	Cap Assy, Front Shock Absorber, Rh
48580	48553-50090	Cap, Shock Absorber, Upper
48590	48590-24030	Cap Assy, Front Shock Absorber, Lh
48590	48590-24031	Cap Assy, Front Shock Absorber, Lh
48590	48590-50010	Cap Assy, Front Shock Absorber, Lh
48603	90179-10016	Nut(For Counter Gear Shaft)
48603	90179-10132	Nut
48603	90179-10200	Nut(For Front Suspension Support)
48681	48681-24040	Support, Front Suspension, No.1
48811	48811-24070	Bar, Stabilizer, Front
48811	48811-24090	Bar, Stabilizer, Front
48811	48811-24120	Bar, Stabilizer, Front
48815	48815-24050	Bush, Front Stabilizer Bar, No.1
48815	48815-24051	Bush, Front Stabilizer Bar, No.1
48820	48820-24010	Link Assy, Front Stabilizer, Lh
48820	90179-10054	Nut, No.1 (For Center Support Bearing)
48824	48809-24010	Bracket, Front Stabilizer, No.1 Rh
48825	48824-24030	Bracket, Stabilizer, No.2
48829	48809-24020	Bracket, Front Stabilizer, No.1 Lh
9011908	90119-08A86	New Genuine Part
9010514082	90105-14082	BOLT, WASHER BASED
9017014006	90170-14006	Nut
9164580820	91645-80820	New Genuine Part
9164580820	91641-K0816	BOLT WWASHER
9462111400	94621-11400	WASHER

OEM	Part name	Category
48010-24051	Cylinder Assy, Pneumatic, Front Rh W/shock Absorber	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48010-29035	Cylinder Assy, Pneumatic, Front Rh W/shock Absorber	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48010-29036	Cylinder Assy, Pneumatic, Front Rh W/shock Absorber	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48020-24031	Cylinder Assy, Pneumatic, Front Lh W/shock Absorber	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48020-29015	Cylinder Assy, Pneumatic, Front Lh W/shock Absorber	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48020-29016	Cylinder Assy, Pneumatic, Front Lh W/shock Absorber	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48514-24010	Bracket, Front Shock Absorber, Lower Rh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48515-24010	Bracket, Front Shock Absorber, Lower Lh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48553-24110	Cap Assy, Front Shock Absorber, Rh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48553-24120	Cap Assy, Front Shock Absorber, Rh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48553-50090	Cap, Shock Absorber, Upper	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48580-24030	Cap Assy, Front Shock Absorber, Rh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48580-24031	Cap Assy, Front Shock Absorber, Rh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48580-24050	Cap Assy, Front Shock Absorber, Rh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48580-50010	Cap Assy, Front Shock Absorber, Rh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48590-24030	Cap Assy, Front Shock Absorber, Lh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48590-24031	Cap Assy, Front Shock Absorber, Lh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48590-50010	Cap Assy, Front Shock Absorber, Lh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48681-24040	Support, Front Suspension, No.1	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48809-24010	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48809-24020	Bracket, Front Stabilizer, No.1 Lh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48811-24070	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48811-24090	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48811-24120	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48815-24050	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48815-24051	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48820-24010	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
48824-24030	Bracket, Stabilizer, No.2	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
90105-14082	BOLT, WASHER BASED	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
90119-08A86	New Genuine Part	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
90170-14006	Nut	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
90179-10016	Nut(For Counter Gear Shaft)	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
90179-10054	Nut, No.1 (For Center Support Bearing)	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
90179-10132	Nut	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
90179-10200	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
91641-K0816	BOLT WWASHER	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
91645-80820	New Genuine Part	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
94621-11400	WASHER	Front Spring & Shock Absorber ([05.1991 - ] (9105- )UZZ31)
