UZS207

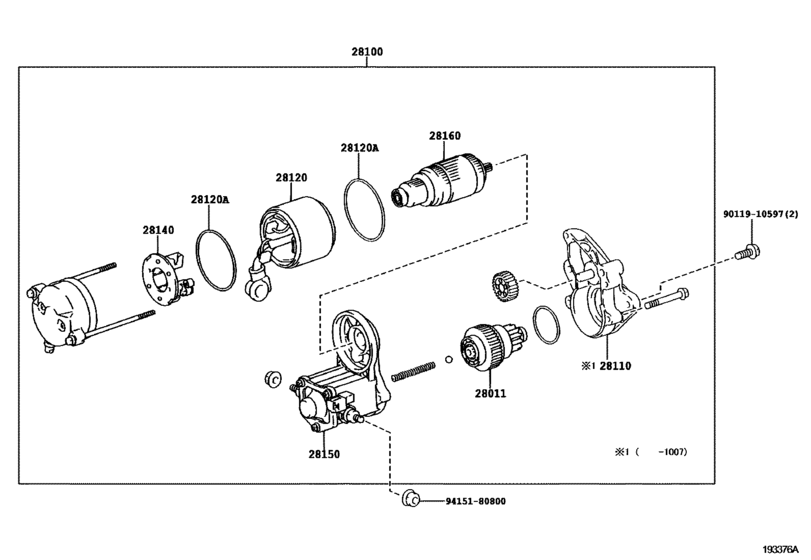

Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) 11
| # | OEM | Part name |
|---|---|---|
| 28011 | 28011-50080 | Clutch Sub-Assy, Starter |
| 28100 | 28100-50080 | Starter Assy |
| 28100 | 28100-50081 | Starter Assy |
| 28110 | 28110-50080 | Housing Assy, Starter Drive |
| 28120 | 28120-66040 | Yoke Assy, Starter |
| 28120 | 90099-14064 | Rubber(For Starter Yoke) |
| 28140 | 28140-76070 | Holder Assy, Starter Brush |
| 28150 | 28150-50090 | Switch Assy, Magnet Starter |
| 28160 | 28160-74070 | Armature Assy, Starter |
| 9011910597 | 90119-10597 | New Genuine Part |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) |
| OEM | Part name | Category |
|---|---|---|
| 28011-50080 | Clutch Sub-Assy, Starter | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
| 28100-50080 | Starter Assy | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
| 28100-50081 | Starter Assy | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
| 28110-50080 | Housing Assy, Starter Drive | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
| 28120-66040 | Yoke Assy, Starter | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
| 28140-76070 | Holder Assy, Starter Brush | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
| 28150-50090 | Switch Assy, Magnet Starter | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
| 28160-74070 | Armature Assy, Starter | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
| 90099-14064 | Rubber(For Starter Yoke) | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
| 90119-10597 | New Genuine Part | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
| 94151-80800 | Nut (For Transmission Control Cable) | Starter ([07.2009 - ] 12V 1.4KW (0907- )3UZFE) |
