Search › Model › UZS187
UZS187

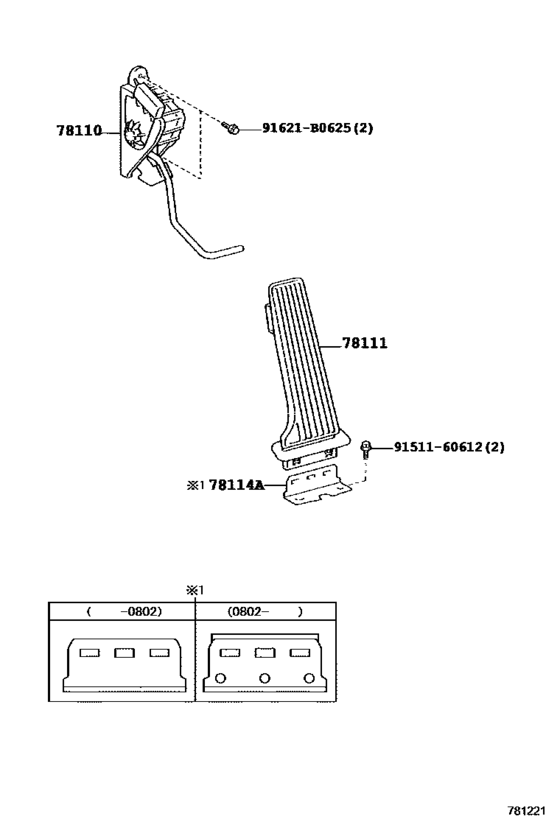

Accelerator Link ([12.2003 - ] (0312- )UZS18#) 7
| # | OEM | Part name |
|---|---|---|
| 78110 | 78120-30A00 | Rod Assy, Accelerator Pedal |
| 78110 | 78120-30A01 | Rod Assy, Accelerator Pedal |
| 78111 | 78111-30130 | Pedal, Accelerator |
| 78114 | 78108-30130 | Bracket Sub-Assy, Accelerator Torque Rod |
| 78114 | 78114-30100 | Bracket, Accelerator Pedal Support |
| 91621 | 91621-B0625 | New Genuine Part |
| 9151160612 | 91511-60612 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 78108-30130 | Bracket Sub-Assy, Accelerator Torque Rod | Accelerator Link ([12.2003 - ] (0312- )UZS18#) |
| 78111-30130 | Pedal, Accelerator | Accelerator Link ([12.2003 - ] (0312- )UZS18#) |
| 78114-30100 | Bracket, Accelerator Pedal Support | Accelerator Link ([12.2003 - ] (0312- )UZS18#) |
| 78120-30A00 | Rod Assy, Accelerator Pedal | Accelerator Link ([12.2003 - ] (0312- )UZS18#) |
| 78120-30A01 | Rod Assy, Accelerator Pedal | Accelerator Link ([12.2003 - ] (0312- )UZS18#) |
| 91511-60612 | BOLT | Accelerator Link ([12.2003 - ] (0312- )UZS18#) |
| 91621-B0625 | New Genuine Part | Accelerator Link ([12.2003 - ] (0312- )UZS18#) |
