Search › Model › UZS186

UZS186

Toyota CROWN-MAJESTA · 2004 · 4,987 parts · 207 categories

4,987 items

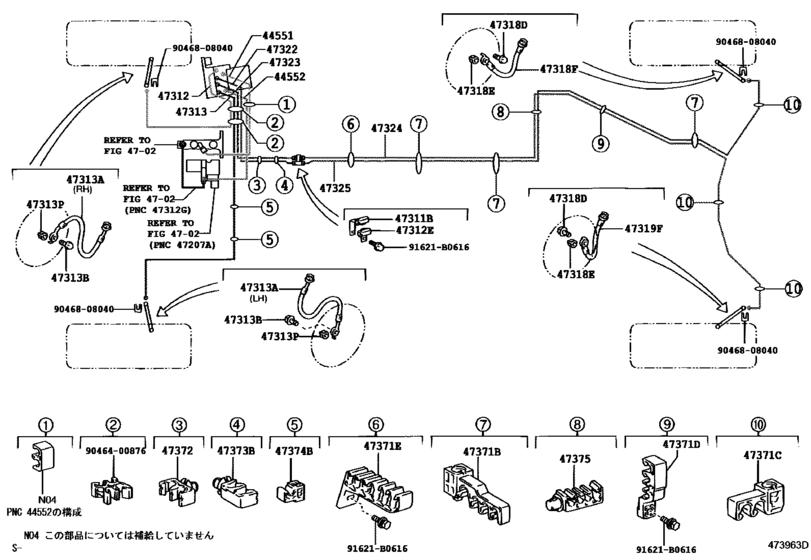

Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186) 42

#	OEM	Part name
31478	31478-30010	Bleeder Plug Cap
44510	44050-30250	Actuator Assy, Brake
44545	44545-63010	Bolt, Union(For Brake Actuator)
44546	44546-58010	Cushion, Brake Actuator Bolt
44546	44546-58020	Cushion, Brake Actuator Bolt
44551	44551-30170	Tube, Brake Actuator, No.1
44552	44552-30120	Tube, Brake Actuator, No.2
44590	44590-30110	Bracket Assy, Brake Actuator
44590	44590-30150	Bracket Assy, Brake Actuator
44595	44595-30010	Bracket, Brake Actuator, No.5
47311	90412-10250	Way, No.1(For Front Brake Tube)
47312	47312-30580	Tube, Front Brake, No.2
47312	90412-10144	Way, No.1(For Front Brake Tube)
47313	47313-30530	Tube, Front Brake, No.3
47313	90947-02D89	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50020	Gasket(For Front Flexible Hose)
47318	90947-02D88	Hose, Flexible(For Rear Rh)
47318	90947-02F67	Hose, Flexible(For Rear Rh)
47322	47322-30340	Tube, Rear Brake, No.2
47323	47323-30300	Tube, Rear Brake, No.3
47324	47324-30310	Tube, Rear Brake, No.4
47325	47325-30090	Tube, Rear Brake, No.5
47371	90949-01D09	Clamp, Brake Tube, No.6
47371	90949-01D11	Clamp, Brake Tube, No.6
47371	77298-30150	Clamp, Brake Tube, No.8
47371	77412-30060	Clamp, Brake Tube, No.9
47372	90949-01D12	Clamp(For Clutch Master Cylinder Tube)
47373	90949-01D13	Clamp, Brake Tube, No.9
47374	90949-01D10	Clamp, Brake Tube, No.4
47374	90949-01D20	Clamp, Brake Tube, No.4
47375	77286-30110	Clamp, Brake Tube, No.5
47547	47547-22020	Plug, Bleeder(For Rear Disc Brake)
47997	47997-48010	Label, Brake Booster Accumlator Caution, No.1
91621	91621-B0616	Bolt
91641	91641-C0612	New Genuine Part
9009905277	90099-05277	New Genuine Part
9046400876	90464-00876	Clamp, Brake Tube, No.1
9046808040	90468-08040	CLIP
9155380810	91553-80810	New Genuine Part
9155380812	91553-80812	New Genuine Part
9415180800	94151-80800	Nut (For Transmission Control Cable)

OEM	Part name	Category
31478-30010	Bleeder Plug Cap	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
44050-30250	Actuator Assy, Brake	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
44545-63010	Bolt, Union(For Brake Actuator)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
44546-58010	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
44546-58020	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
44551-30170	Tube, Brake Actuator, No.1	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
44552-30120	Tube, Brake Actuator, No.2	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
44590-30110	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
44590-30150	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
44595-30010	Bracket, Brake Actuator, No.5	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
47312-30580	Tube, Front Brake, No.2	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
47313-30530	Tube, Front Brake, No.3	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
47322-30340	Tube, Rear Brake, No.2	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
47323-30300	Tube, Rear Brake, No.3	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
47324-30310	Tube, Rear Brake, No.4	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
47325-30090	Tube, Rear Brake, No.5	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
47547-22020	Plug, Bleeder(For Rear Disc Brake)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
47997-48010	Label, Brake Booster Accumlator Caution, No.1	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
77286-30110	Clamp, Brake Tube, No.5	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
77298-30150	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
77412-30060	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90099-05277	New Genuine Part	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90412-10144	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90412-10250	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90464-00876	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90468-08040	CLIP	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90947-02D88	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90947-02D89	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90947-02F67	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90949-01D09	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90949-01D10	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90949-01D11	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90949-01D12	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90949-01D13	Clamp, Brake Tube, No.9	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
90949-01D20	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
91553-80810	New Genuine Part	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
91553-80812	New Genuine Part	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
91621-B0616	Bolt	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
91641-C0612	New Genuine Part	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
94151-80800	Nut (For Transmission Control Cable)	Brake Tube & Clamp ([06.2004 - ] (0406- )UZS186)
