Search › Model › UZS160

UZS160

Lexus GS · 1997 · 5,352 parts · 166 categories
UZS160 ×

← Back to categories

5,352 items

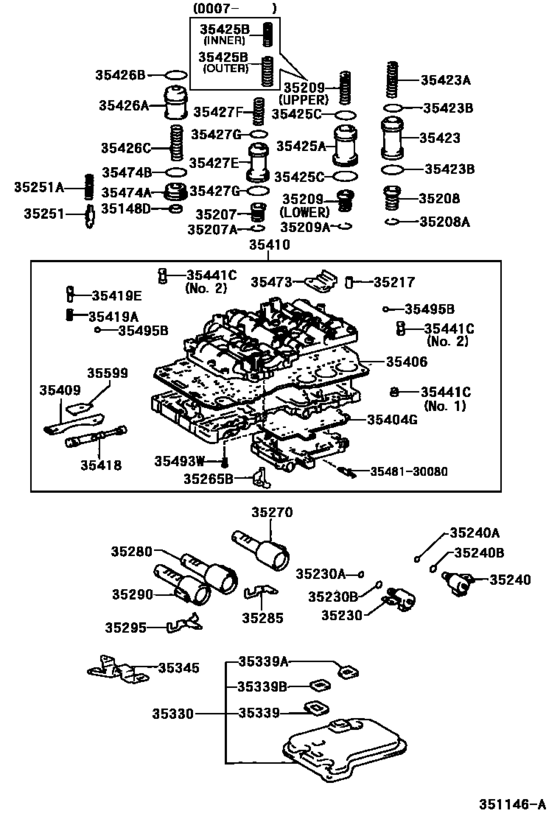

Valve Body & Oil Strainer (Atm) ([08.1997 - ] A650E (9708- )JZS160,UZS160) 72
#OEMPart name
35148 35148-16010 Gasket (For Automatic Transfer Case)
35207 35207-50010 Spring Sub-Assy, B-0 Accumulator
35207 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35208 35208-22010 Spring Sub-Assy, B-2 Accumulator
35209 35209-24010 Spring Sub-Assy, C-2 Accumulator
35209 35209-50030 Spring Sub-Assy, C-2 Accumulator
35217 35217-30010 Valve, Accumulator Control, No.2
35230 35230-30010 Solenoid Assy, Transmission 3Way, No.2
35230 90301-08013 Ring, O, No.1(For Transmission 3Way Solenoid No.2)
35230 90301-12013 Ring, O, No.2 (For Transmission 3Way Solenoid No.2)
35240 35240-30020 Solenoid Assy, Automatic Transmission 3Way
35240 90301-08011 Ring, O, No.1 (For Transmission 3Way Solenoid)
35240 90301-12014 Ring, O, No.2 (For Transmission 3Way Solenoid)
35251 35251-30020 Body, Check Ball
35251 90501-03005 Spring, Compression (For Check Ball Body)
35265 35265-50010 Tube, Oil Cooler Return
35270 35270-30030 Solenoid Assy, Shift Control
35280 35280-30040 Solenoid Assy, Lock Up Control
35285 35285-30060 Plate, Solenoid Lock
35290 35290-30040 Solenoid Assy, Line Pressure Control
35295 35295-30010 Plate, Solenoid Lock, No.2
35330 35330-30030 Strainer Assy, Valve Body Oil
35330 35330-30050 Strainer Assy, Valve Body Oil
35330 35330-30070 Strainer Assy, Valve Body Oil
35339 35339-30080 Gasket, Oil Strainer
35339 35339-30090 Gasket, Oil Strainer, No.1
35339 35339-30100 Gasket, Oil Strainer, No.1
35345 35345-50010 Plate, Oil Guide
35404 35404-30020 Plate Sub-Assy, Valve Body, No.2
35406 35406-30210 Plate Sub-Assy, Valve Body
35409 35409-50020 Spring Sub-Assy, Manual Detent
35410 35410-30840 Body Assy, Transmission Valve
35418 35418-30090 Valve, Manual
35419 90501-09093 Spring, Compression (For Check Valve)
35419 35419-50010 Valve, Check, No.1
35423 35423-30030 Piston, B-2 Accumulator
35423 90501-25052 Spring, Compression (For B-2 Accumulator Piston)
35423 90301-23010 Ring (For Accumulator Piston No.1)
35423 90301-31010 Ring, O (For B-2 Accumulator Piston)
35425 35425-40010 Piston, C-2 Accumulator
35425 90903-01001 Ring, O (For C-2 Accumulator Piston)
35425 90903-01003 Ring, O (For C-2 Accumulator Piston)
35426 35426-50010 Piston, C-0 Accumulator
35426 90301-24010 Ring, O (For C-0 Accumulator Piston)
35426 90501-21021 Spring, Compression (For C-0 Accumulator Piston)
35427 35427-30040 Piston, B-0 Accumulator
35427 90905-01025 Spring, Compression (For B-0 Accumulator Piston)
35427 90301-20008 Ring, O (For C-2 Accumulator Piston)
35427 90301-26011 Ring, O (For C-3 Accumulator Piston)
35441 35441-24020 Strainer, Solenoid Oil
35441 35441-50030 Strainer, Solenoid Oil
35473 35473-50020 Cover, Transmission Valve Body
35474 35474-30010 Cover, Accumulator
35493 35493-50040 Seat, Valve Body
35495 35495-22020 Ball (For Transfer Upper Valve Body)
35599 35599-22020 Cover, Manual Detent Spring
3548130080 35481-30080 Body, Governor
9010505002 90105-05002 New Genuine Part
9010505003 90105-05003 Bolt (For Pressure Regulator Valve No.2)
9010505003 90119-05035 Bolt (For Pressure Regulator Valve No.2)
9010505004 90105-05004 New Genuine Part
9010505008 90105-05008 New Genuine Part
9010505009 90105-05009 New Genuine Part
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9010506025 90105-06025 New Genuine Part
9010506025 91511-C0635 BOLT, FLANGE
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
9010506053 90105-06053 Bolt(For Sensor Rotor Adapter)
9010506055 90105-06055 New Genuine Part
9010506075 90105-06075 New Genuine Part
9010506075 91511-C0622 Strainer Bolt
9010506261 90105-06261 Bolt(For Manual Detent Spring)
