UZS151

Toyota CROWN-MAJESTA · 1995 · 6,368 parts · 256 categories
UZS151 ×

← Back to categories

6,368 items

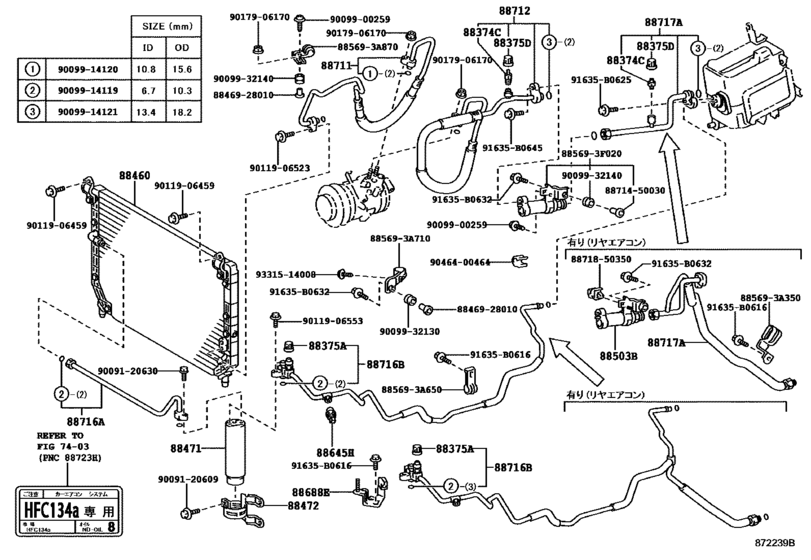

Heating & Air Conditioning - Cooler Piping ([08.1995 - ] ﾌﾛﾝﾄ (9508- )UZS151,157) 51
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88460 88460-30740 Condenser Assy, Cooler
88471 88471-30370 Tank, Receiver Air Conditioner
88472 88472-30020 Bracket, Receiver Tank, No.1
88503 88503-30780 Regulator Sub-Assy, Pressure
88645 88645-22080 Switch, Pressure No.1
88688 88688-3A490 Bracket, Cooler Refrigerant Hose, No.1
88711 88711-3A340 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-3A300 Hose, Cooler Refrigerant Discharge, No.1
88712 88704-30580 Hose, Cooler Refrigerant Suction, No.1
88712 88712-3A800 Hose, Cooler Refrigerant Suction, No.1
88716 88726-30170 Pipe, Cooler Refrigerant Liquid, A
88716 88726-3K340 Pipe, Cooler Refrigerant Liquid, B
88716 88726-3K160 Pipe, Cooler Refrigerant Liquid, B
88717 88727-3F060 Pipe, Cooler Refrigerant Suction, A
88717 88727-3A780 Pipe, Cooler Refrigerant Suction, A
91635 91635-B0616 New Genuine Part
91635 91631-J0612 BRACKET
91635 91635-B0625 New Genuine Part
91635 91631-B0625 BOLT W-WASHER
91635 91635-B0632 New Genuine Part
91635 91631-B0630 BOLT WWASHER
91635 91635-B0645 New Genuine Part
91635 91631-B0645 New Genuine Part
885693 88569-3A350 Clamp (for Cooler Relay)
885693 88569-3A650 Clamp (for Cooler Relay)
885693 88569-3A710 Clamp (for Cooler Relay)
885693 88569-3A870 Clamp (for Cooler Relay)
885693 88569-3F020 Clamp (for Cooler Relay)
885693 88569-3F090 Clamp (for Cooler Relay)
8846928010 88469-28010 Collar, Condenser Bracket, No.1
8871450030 88714-50030 Collar, Condenser Bracket, No.1
8871850350 88718-50350 Pipe, Cooler Refrigerant Suction, No.2
9009120609 90091-20609 BOLT
9009120630 90091-20630 New Genuine Part
9009900259 90099-00259 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009932130 90099-32130 Grommet (For Power Take-Off Cable Bracket)
9009932140 90099-32140 New Genuine Part
9011906459 90119-06459 New Genuine Part
9011906523 90119-06523 New Genuine Part
9011906553 90119-06553 New Genuine Part
9011906553 91651-F0625 BOLT WWASHER
9017906170 90179-06170 New Genuine Part
9046400464 90464-00464 New Genuine Part
9331514008 93315-14008 New Genuine Part
