UZS151

Toyota CROWN-MAJESTA · 1995 · 6,368 parts · 256 categories

6,368 items

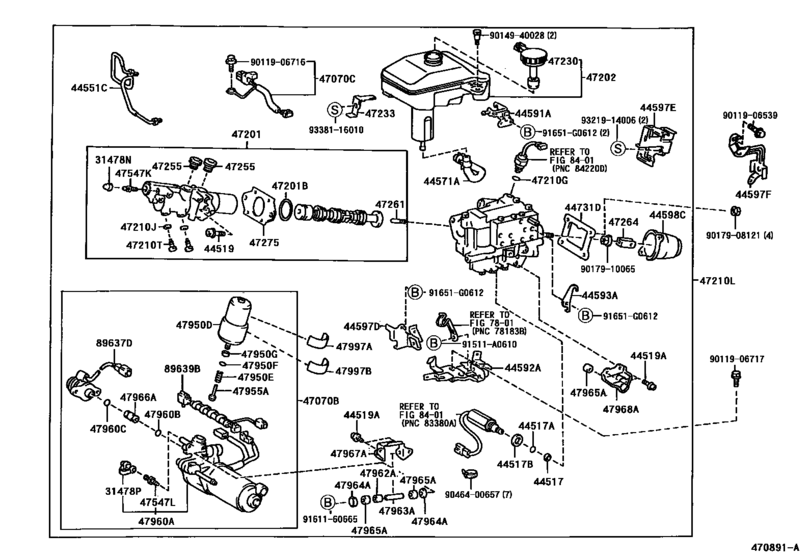

Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E) 85

#	OEM	Part name
31478	31478-30010	Bleeder Plug Cap
31478	31478-50010	Cap, Bleeder Plug(For Brake Traction Actuator)
44517	44517-24010	Ring, Brake Actuator Back-Up
44517	96761-24011	Ring, O(For Brake Actuator Pressure Switch)
44517	90430-22010	Gasket(For Oil Cooler Pipe)
44519	44519-24010	Bolt, Brake Actuator
44519	44519-24020	Bolt, Brake Actuator
44551	44551-30050	Tube, Brake Actuator, No.1
44571	44571-24010	Hose, Brake Actuator
44591	44591-30120	Bracket, Brake Actuator, No.1
44592	44592-30050	Bracket, Brake Actuator, No.2
44593	44593-30020	Bracket, Brake Actuator, No.3
44597	44597-30070	Clamp, Brake Actuator Connector, No.1
44597	44597-30080	Clamp, Brake Actuator Connector, No.2
44597	44597-30010	Clamp, Brake Actuator Connector, No.1
44598	44598-24040	Cover, Brake Actuator
44731	44731-30070	Bracket, Brake Booster
47070	47070-30030	Pump Assy, Brake Booster W/accumulator
47070	47070-30040	Pump Assy, Brake Booster W/accumulator
47201	47201-39025	Cylinder Sub-Assy, Brake Master
47201	47201-39035	Cylinder Sub-Assy, Brake Master
47201	96761-19035	Ring, O(For Brake Master Cylinder)
47202	47220-30040	Reservoir Sub-Assy, Brake Master Cylinder
47210	96761-19014	Ring, O(For Differential Valve Switch)
47210	90430-06104	Gasket(For Brake Actuator)
47210	47210-30040	Brake Booster Assy, W/master Cylinder
47210	47210-30050	Brake Booster Assy, W/master Cylinder
47210	90101-06035	Bolt(For Brake Master Cylinder)
47230	84460-24020	Cap Assy, Brake Master Cylinder Reservoir Filler
47233	47233-30030	Bracket, Reservoir
47255	47255-16010	Grommet, Master Cylinder Reservoir
47261	47261-24110	Rod, Master Cylinder Push
47261	47261-24120	Rod, Master Cylinder Push
47261	47261-24130	Rod, Master Cylinder Push
47261	47261-24140	Rod, Master Cylinder Push
47261	47261-24150	Rod, Master Cylinder Push
47261	47261-24160	Rod, Master Cylinder Push
47261	47261-24170	Rod, Master Cylinder Push
47261	47261-24180	Rod, Master Cylinder Push
47261	47261-24190	Rod, Master Cylinder Push
47261	47261-24200	Rod, Master Cylinder Push
47261	47261-24210	Rod, Master Cylinder Push
47261	47261-24220	Rod, Master Cylinder Push
47261	47261-24230	Rod, Master Cylinder Push
47264	47264-28010	Clevis, Master Cylinder Push Rod
47275	47275-24020	Gasket, Brake Master Cylinder
47547	47547-10060	Plug, Bleeder(For Rear Disc Brake)
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47547	47547-26010	Plug, Bleeder (For Deceleration Sensing Proportionin)
47547	47547-27030	Plug, Bleeder(For Front Disc Brake)
47950	47950-24020	Accumulator Assy, Brake Booster
47950	90501-12147	Spring, Compression
47950	90301-08006	Ring, O, No.1(For Brake Booster Accumlator)
47950	90562-09006	Ring, O, No.2(For Brake Booster Accumlator)
47955	47955-24010	Pipe, Brake Booster Accumulator
47960	47960-30010	Pump Assy, Brake Booster
47960	90301-15014	Ring, O(For Drain Plug)
47960	90561-16009	Spacer(For Brake Booster Pump Oil Pressure Sensor)
47962	47962-24010	Collar, Brake Booster Pump
47963	47963-24010	Shaft, Brake Booster Pump
47964	47964-24010	Washer, Brake Booster Pump
47965	47965-24010	Bush, Brake Booster Pump
47966	47966-24010	Pipe, Brake Booster Pump Oil
47967	47967-30010	Bracket, Brake Booster Pump
47968	47968-30010	Bracket, Brake Booster Pump, No.2
47997	47997-24020	Label, Brake Booster Accumlator Caution, No.1
47997	47997-24010	Label, Brake Booster Accumlator Caution, No.1
89637	89637-30010	Sensor, Oil Pressure
89637	89637-30020	Sensor, Oil Pressure
89639	89639-30040	Wire, Brake Control
89639	89639-30070	Wire, Brake Control
91511	91511-A0610	Bolt (For Propeller Shaft Heat Insulator)
91511	91531-A0610	Bolt (For Propeller Shaft Heat Insulator)
91651	91651-G0612	New Genuine Part
9011906539	90119-06539	New Genuine Part
9011906716	90119-06716	New Genuine Part
9011906717	90119-06717	New Genuine Part
9014940028	90149-40028	New Genuine Part
9017908121	90179-08121	NUT
9017908121	90179-08017	NUT
9017910065	90179-10065	Nut, Master Cylinder Push Rod Clevis Lock
9046400657	90464-00657	CLAMP
9161160665	91611-60665	New Genuine Part
9321914006	93219-14006	New Genuine Part
9338116010	93381-16010	New Genuine Part

OEM	Part name	Category
31478-30010	Bleeder Plug Cap	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
31478-50010	Cap, Bleeder Plug(For Brake Traction Actuator)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44517-24010	Ring, Brake Actuator Back-Up	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44519-24010	Bolt, Brake Actuator	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44519-24020	Bolt, Brake Actuator	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44551-30050	Tube, Brake Actuator, No.1	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44571-24010	Hose, Brake Actuator	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44591-30120	Bracket, Brake Actuator, No.1	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44592-30050	Bracket, Brake Actuator, No.2	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44593-30020	Bracket, Brake Actuator, No.3	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44597-30010	Clamp, Brake Actuator Connector, No.1	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44597-30070	Clamp, Brake Actuator Connector, No.1	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44597-30080	Clamp, Brake Actuator Connector, No.2	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44598-24040	Cover, Brake Actuator	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
44731-30070	Bracket, Brake Booster	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47070-30030	Pump Assy, Brake Booster W/accumulator	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47070-30040	Pump Assy, Brake Booster W/accumulator	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47201-39025	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47201-39035	Cylinder Sub-Assy, Brake Master	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47210-30040	Brake Booster Assy, W/master Cylinder	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47210-30050	Brake Booster Assy, W/master Cylinder	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47220-30040	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47233-30030	Bracket, Reservoir	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47255-16010	Grommet, Master Cylinder Reservoir	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24110	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24120	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24130	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24140	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24150	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24160	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24170	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24180	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24190	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24200	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24210	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24220	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47261-24230	Rod, Master Cylinder Push	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47264-28010	Clevis, Master Cylinder Push Rod	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47275-24020	Gasket, Brake Master Cylinder	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47547-10060	Plug, Bleeder(For Rear Disc Brake)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47547-20010	Plug, Bleeder(For Release Cylinder)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47547-26010	Plug, Bleeder (For Deceleration Sensing Proportionin)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47547-27030	Plug, Bleeder(For Front Disc Brake)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47950-24020	Accumulator Assy, Brake Booster	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47955-24010	Pipe, Brake Booster Accumulator	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47960-30010	Pump Assy, Brake Booster	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47962-24010	Collar, Brake Booster Pump	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47963-24010	Shaft, Brake Booster Pump	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47964-24010	Washer, Brake Booster Pump	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47965-24010	Bush, Brake Booster Pump	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47966-24010	Pipe, Brake Booster Pump Oil	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47967-30010	Bracket, Brake Booster Pump	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47968-30010	Bracket, Brake Booster Pump, No.2	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47997-24010	Label, Brake Booster Accumlator Caution, No.1	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
47997-24020	Label, Brake Booster Accumlator Caution, No.1	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
84460-24020	Cap Assy, Brake Master Cylinder Reservoir Filler	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
89637-30010	Sensor, Oil Pressure	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
89637-30020	Sensor, Oil Pressure	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
89639-30040	Wire, Brake Control	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
89639-30070	Wire, Brake Control	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90101-06035	Bolt(For Brake Master Cylinder)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90119-06539	New Genuine Part	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90119-06716	New Genuine Part	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90119-06717	New Genuine Part	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90149-40028	New Genuine Part	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90179-08017	NUT	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90179-08121	NUT	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90179-10065	Nut, Master Cylinder Push Rod Clevis Lock	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90301-08006	Ring, O, No.1(For Brake Booster Accumlator)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90301-15014	Ring, O(For Drain Plug)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90430-06104	Gasket(For Brake Actuator)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90430-22010	Gasket(For Oil Cooler Pipe)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90464-00657	CLAMP	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90501-12147	Spring, Compression	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90561-16009	Spacer(For Brake Booster Pump Oil Pressure Sensor)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
90562-09006	Ring, O, No.2(For Brake Booster Accumlator)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
91511-A0610	Bolt (For Propeller Shaft Heat Insulator)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
91531-A0610	Bolt (For Propeller Shaft Heat Insulator)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
91611-60665	New Genuine Part	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
91651-G0612	New Genuine Part	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
93219-14006	New Genuine Part	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
93381-16010	New Genuine Part	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
96761-19014	Ring, O(For Differential Valve Switch)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
96761-19035	Ring, O(For Brake Master Cylinder)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
96761-24011	Ring, O(For Brake Actuator Pressure Switch)	Brake Master Cylinder ([08.1995 - 09.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9508-9609)JZS155,UZS151,157..A,C,E,F ; (9609-97 07)A,E)
