Search › Model › UZS131

UZS131

Toyota CROWN-MAJESTA · 1989 · 5,334 parts · 209 categories

5,334 items

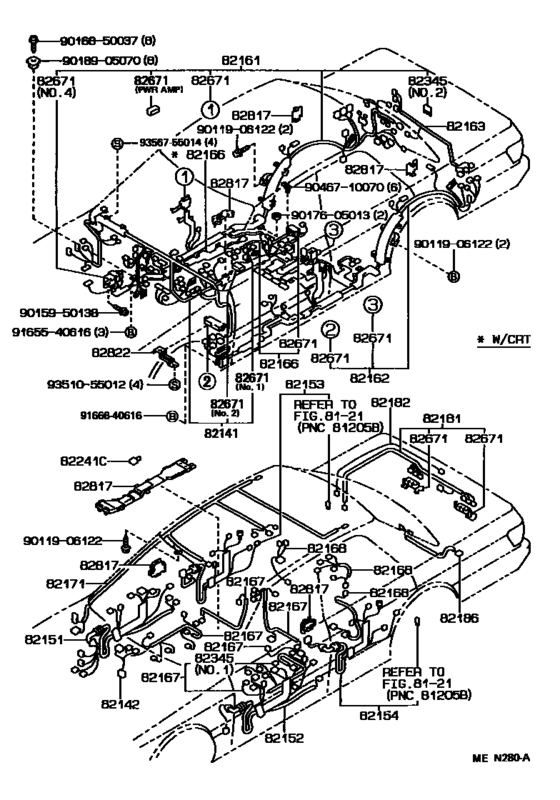

Wiring & Clamp ([09.1987 - ] (8709- )HT) 60

#	OEM	Part name
82141	82141-30132	Wire, Instrument Panel
82151	82151-30471	Wire, Front Door, Rh
82151	82151-30491	Wire, Front Door, Rh
82152	82152-30311	Wire, Front Door, Lh
82152	82152-30321	Wire, Front Door, Lh
82153	82153-30301	Wire, Rear Door, No.1
82153	82153-30320	Wire, Rear Door, No.1
82154	82154-30191	Wire, Rear Door, No.2
82154	82154-30210	Wire, Rear Door, No.2
82161	82161-30811	Wire, Floor
82162	82162-30192	Wire, Floor, No.2
82166	82166-30091	Wire, Console Box
82167	82167-30220	Wire, Seat, No.1
82167	82167-30261	Wire, Seat, No.1
82167	82167-30291	Wire, Seat, No.1
82167	82167-30320	Wire, Seat, No.1
82167	82167-30351	Wire, Seat, No.1
82167	82167-30460	Wire, Seat, No.1
82168	82168-30091	Wire, Seat, No.2
82168	82168-30171	Wire, Seat, No.2
82168	82168-30191	Wire, Seat, No.2
82168	82168-30220	Wire, Seat, No.2
82168	82168-30231	Wire, Seat, No.2
82171	82171-30300	Wire, Roof, No.1
82171	82171-30320	Wire, Roof, No.1
82181	82181-30031	Wire, Luggage Room, No.1
82182	82182-30030	Wire, Luggage Room, No.2
82186	82186-30070	Wire, Rear Window, No.1
82345	82345-12030	Diode
82345	82345-12050	Diode
82345	82345-22051	Diode
82345	82345-30010	Diode
82345	82345-32020	Diode
82671	82671-30090	Block, Junction
82671	82671-30100	Block, Junction
82671	82671-30110	Block, Junction
82671	82671-30140	Block, Junction
82671	82671-30160	Block, Junction
82671	82671-30170	Block, Junction
82671	82671-30180	Block, Junction
82671	82671-30200	Block, Junction
82671	82671-30250	Block, Junction
82671	82671-30300	Block, Junction
82817	82817-3A240	Protector, Wiring Harness, No.1
82817	82817-3A250	Protector, Wiring Harness, No.1
82817	82817-3A260	Protector, Wiring Harness, No.1
82822	82822-30010	Bracket,connector Block
9011906122	90119-06122	New Genuine Part
9015950138	90159-50138	SCREW
9016850037	90168-50037	New Genuine Part
9017605013	90176-05013	New Genuine Part
9018905070	90189-05070	New Genuine Part
9046710070	90467-10070	New Genuine Part
9165540616	91655-40616	Bolt
9165540616	91651-60614	Bolt
9166640616	91666-40616	New Genuine Part
9166640616	91661-60616	BOLT
9351055012	93510-55012	New Genuine Part
9356755014	93567-55014	Direct
9356755014	93568-55014	Screw

OEM	Part name	Category
82141-30132	Wire, Instrument Panel	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82151-30471	Wire, Front Door, Rh	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82151-30491	Wire, Front Door, Rh	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82152-30311	Wire, Front Door, Lh	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82152-30321	Wire, Front Door, Lh	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82153-30301	Wire, Rear Door, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82153-30320	Wire, Rear Door, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82154-30191	Wire, Rear Door, No.2	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82154-30210	Wire, Rear Door, No.2	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82161-30811	Wire, Floor	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82162-30192	Wire, Floor, No.2	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82166-30091	Wire, Console Box	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82167-30220	Wire, Seat, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82167-30261	Wire, Seat, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82167-30291	Wire, Seat, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82167-30320	Wire, Seat, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82167-30351	Wire, Seat, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82167-30460	Wire, Seat, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82168-30091	Wire, Seat, No.2	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82168-30171	Wire, Seat, No.2	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82168-30191	Wire, Seat, No.2	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82168-30220	Wire, Seat, No.2	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82168-30231	Wire, Seat, No.2	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82171-30300	Wire, Roof, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82171-30320	Wire, Roof, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82181-30031	Wire, Luggage Room, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82182-30030	Wire, Luggage Room, No.2	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82186-30070	Wire, Rear Window, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82345-12030	Diode	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82345-12050	Diode	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82345-22051	Diode	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82345-30010	Diode	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82345-32020	Diode	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82671-30090	Block, Junction	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82671-30100	Block, Junction	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82671-30110	Block, Junction	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82671-30140	Block, Junction	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82671-30160	Block, Junction	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82671-30170	Block, Junction	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82671-30180	Block, Junction	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82671-30200	Block, Junction	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82671-30250	Block, Junction	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82671-30300	Block, Junction	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82817-3A240	Protector, Wiring Harness, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82817-3A250	Protector, Wiring Harness, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82817-3A260	Protector, Wiring Harness, No.1	Wiring & Clamp ([09.1987 - ] (8709- )HT)
82822-30010	Bracket,connector Block	Wiring & Clamp ([09.1987 - ] (8709- )HT)
90119-06122	New Genuine Part	Wiring & Clamp ([09.1987 - ] (8709- )HT)
90159-50138	SCREW	Wiring & Clamp ([09.1987 - ] (8709- )HT)
90168-50037	New Genuine Part	Wiring & Clamp ([09.1987 - ] (8709- )HT)
90176-05013	New Genuine Part	Wiring & Clamp ([09.1987 - ] (8709- )HT)
90189-05070	New Genuine Part	Wiring & Clamp ([09.1987 - ] (8709- )HT)
90467-10070	New Genuine Part	Wiring & Clamp ([09.1987 - ] (8709- )HT)
91651-60614	Bolt	Wiring & Clamp ([09.1987 - ] (8709- )HT)
91655-40616	Bolt	Wiring & Clamp ([09.1987 - ] (8709- )HT)
91661-60616	BOLT	Wiring & Clamp ([09.1987 - ] (8709- )HT)
91666-40616	New Genuine Part	Wiring & Clamp ([09.1987 - ] (8709- )HT)
93510-55012	New Genuine Part	Wiring & Clamp ([09.1987 - ] (8709- )HT)
93567-55014	Direct	Wiring & Clamp ([09.1987 - ] (8709- )HT)
93568-55014	Screw	Wiring & Clamp ([09.1987 - ] (8709- )HT)
