Search › Model › UZS131

UZS131

Toyota CROWN-MAJESTA · 1989 · 5,334 parts · 209 categories

5,334 items

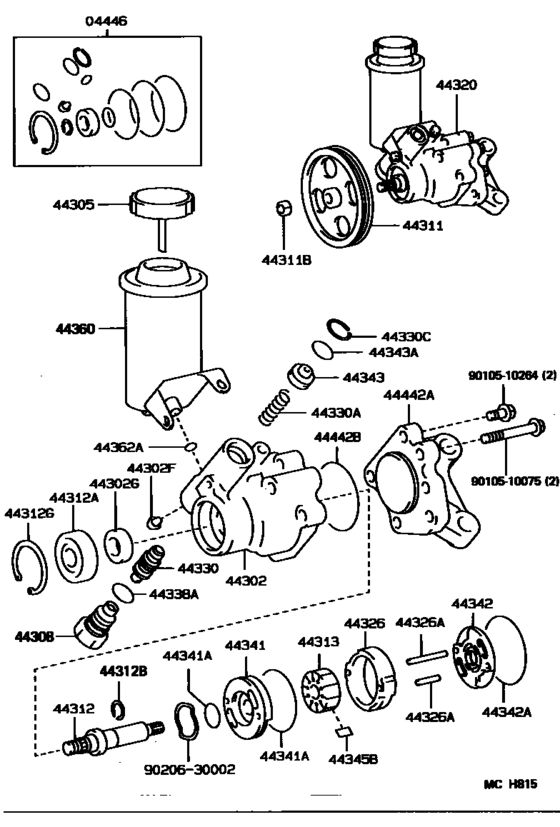

Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131) 60

#	OEM	Part name
4446	04446-50010	Gasket Kit, Power Steering Pump
4446	04446-30173	Gasket Kit, Power Steering Pump
44302	44302-50010	Housing Sub-Assy, Vane Pump, Front
44302	44302-50020	Housing Sub-Assy, Vane Pump, Front
44302	90116-10189	New Genuine Part
44302	90410-05005	Seat, Union(For Power Steering Control Valve)
44302	90311-17004	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-50010	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-50020	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-30120	Union Sub-Assy, Pressure Port
44311	44311-30130	Pulley, Vane Pump
44311	90179-12022	Nut(For Vane Pump Pulley)
44312	44312-50010	Shaft, Vane Pump
44312	90363-17007	Bearing(For Vane Pump Shaft)
44312	90363-17017	Bearing(For Vane Pump Shaft)
44312	90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)
44312	90521-51003	Ring, Snap, No.1(For Vane Pump Housing)
44313	44313-32010	Rotor, Vane Pump
44313	44313-32020	Rotor, Vane Pump
44313	44313-32030	Rotor, Vane Pump
44313	44313-32040	Rotor, Vane Pump
44313	44313-32050	Rotor, Vane Pump
44320	44320-30370	Pump Assy, Vane
44320	44320-30371	Pump Assy, Vane
44326	44325-32010	Ring, Cam(For Vane Pump)
44326	44325-32020	Ring, Cam(For Vane Pump)
44326	44325-32030	Ring, Cam(For Vane Pump)
44326	44325-32040	Ring, Cam(For Vane Pump)
44326	44325-32050	Ring, Cam(For Vane Pump)
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-30280	Valve Assy, Flow Control
44330	44330-30290	Valve Assy, Flow Control
44330	44330-30300	Valve Assy, Flow Control
44330	44330-30310	Valve Assy, Flow Control
44330	44330-30320	Valve Assy, Flow Control
44330	44330-30330	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-02200	Ring(For Clutch Master Cylinder Reservoir)
44338	90301-19003	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44341	44341-30050	Plate, Vane Pump Side, Front
44341	90301-28005	Ring, O(For Vane Pump Front Side Plate)
44341	90301-53003	Ring, O(For Vane Pump Front Side Plate)
44341	90301-53004	Ring, O(For Pump Housing Rear)
44342	44342-20010	Plate, Vane Pump Side, Rear
44343	44343-50010	Seat, Flow Control Spring
44343	96711-19019	Ring, O(For Vane Pump Union)
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44306-50010	Reservoir Sub-Assy, Vane Pump Oil
44362	90301-12003	Ring, O(For Power Steering Suction Port)
44362	90301-11016	Ring, O(For Power Steering Suction Port)
44442	44442-50010	Bracket, Vane Pump, Rear
9010510075	90105-10075	Bolt(For Alternator)
9010510264	90105-10264	Bolt (For Front Differential Carrier Cover Setting)
9020630002	90206-30002	New Genuine Part

OEM	Part name	Category
04446-30173	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
04446-50010	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44302-50010	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44302-50020	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44305-50010	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44305-50020	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44306-50010	Reservoir Sub-Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44308-30120	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44311-30130	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44312-50010	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44313-32010	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44313-32020	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44313-32030	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44313-32040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44313-32050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44320-30370	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44320-30371	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44325-32010	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44325-32020	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44325-32030	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44325-32040	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44325-32050	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44330-30280	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44330-30290	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44330-30300	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44330-30310	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44330-30320	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44330-30330	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44341-30050	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44342-20010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44343-50010	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
44442-50010	Bracket, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90105-10075	Bolt(For Alternator)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90105-10264	Bolt (For Front Differential Carrier Cover Setting)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90116-10189	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90301-12003	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90301-19003	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90301-28005	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90301-53003	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90301-53004	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90311-17004	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90363-17007	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90363-17017	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90410-05005	Seat, Union(For Power Steering Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
90521-51003	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
96151-02200	Ring(For Clutch Master Cylinder Reservoir)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
96711-19019	Ring, O(For Vane Pump Union)	Vane Pump & Reservoir (Power Steering) ([08.1989 - ] (8908- )UZS131)
