Search › Model › UZS131

UZS131

Toyota CROWN-MAJESTA · 1989 · 5,334 parts · 209 categories

5,334 items

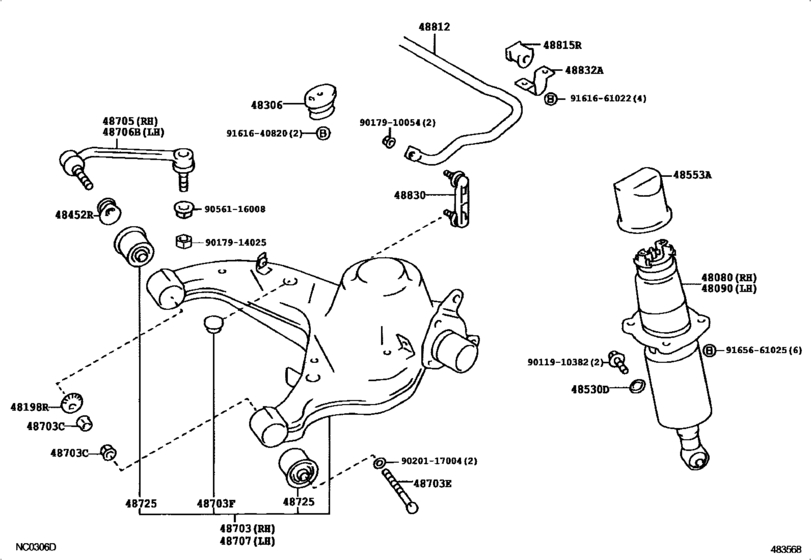

Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131) 38

#	OEM	Part name
48080	48080-39015	Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber
48080	48080-30040	Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber
48090	48090-39015	Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber
48090	48090-30040	Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber
48198	48198-30010	Cam, Rear Suspension Camber Adjust, No.2
48306	48306-30100	Bumper Sub-Assy, Rear Spring
48452	48452-30020	Plate, Rear Suspension Toe Adjust, No.2
48530	90948-03019	Washer, Rear Shock Absorber Cushion, No.3
48553	48553-30020	Cap, Shock Absorber
48703	48703-30905	Arm Sub-Assy, Rear Suspension, Rh
48703	90179-14025	Nut (For Front Lower Ball Joint Setting)
48703	90179-16011	Nut(For Rear Suspension Arm)
48703	90101-16017	Bolt(For Rear Suspension Arm)
48703	47491-22020	Plug, Shoe Adjusting Hole (For Parking Brake)
48703	47491-30050	Plug, Hole(For Rear Suspension Arm)
48703	90950-01258	Plug, Hole(For Rear Suspension Arm)
48703	90950-01478	Plug, Hole(For Front Suspension Lower Arm)
48705	48705-30052	Link Sub-Assy, Toe Control, Rh
48705	48705-30060	Link Sub-Assy, Toe Control, Rh
48706	48706-30042	Link Sub-Assy, Toe Control, Lh
48706	48706-30030	Link Sub-Assy, Toe Control, Lh
48707	48707-30905	Arm Sub-Assy, Rear Suspension, Lh
48725	48725-30050	Bush, Lower Control Arm
48725	48725-30060	Bush, Lower Control Arm
48812	48812-30190	Bar, Stabilizer, Rear
48815	48815-30220	Bush, Stabilizer(For Rear)
48830	48830-30010	Link Assy, Rear Stabilizer
48830	48830-30020	Link Assy, Rear Stabilizer
48832	48832-30030	Bracket, Rear Stabilizer Bar, No.1
9011910382	90119-10382	BOLT WWASHER
9017910054	90179-10054	Nut, No.1 (For Center Support Bearing)
9020117004	90201-17004	New Genuine Part
9056116008	90561-16008	New Genuine Part
9161640820	91616-40820	Bolt, Engine Rear Cover Hinge Set
9161661022	91616-61022	Bolt(for Transaxle & Engine Setting)
9161661022	91612-B1020	Bolt (For Transfer Case)Cover No.2
9165661025	91656-61025	Bolt(For Transaxle Case & Engine Setting)
9165661025	91651-61025	Bolt with washer

OEM	Part name	Category
47491-22020	Plug, Shoe Adjusting Hole (For Parking Brake)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
47491-30050	Plug, Hole(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48080-30040	Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48080-39015	Cylinder Assy, Pneumatic, Rear Rh W/shock Absorber	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48090-30040	Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48090-39015	Cylinder Assy, Pneumatic, Rear Lh W/shock Absorber	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48198-30010	Cam, Rear Suspension Camber Adjust, No.2	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48306-30100	Bumper Sub-Assy, Rear Spring	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48452-30020	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48553-30020	Cap, Shock Absorber	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48703-30905	Arm Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48705-30052	Link Sub-Assy, Toe Control, Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48705-30060	Link Sub-Assy, Toe Control, Rh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48706-30030	Link Sub-Assy, Toe Control, Lh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48706-30042	Link Sub-Assy, Toe Control, Lh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48707-30905	Arm Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48725-30050	Bush, Lower Control Arm	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48725-30060	Bush, Lower Control Arm	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48812-30190	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48815-30220	Bush, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48830-30010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48830-30020	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
48832-30030	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
90101-16017	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
90119-10382	BOLT WWASHER	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
90179-10054	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
90179-14025	Nut (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
90179-16011	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
90201-17004	New Genuine Part	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
90561-16008	New Genuine Part	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
90948-03019	Washer, Rear Shock Absorber Cushion, No.3	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
90950-01258	Plug, Hole(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
90950-01478	Plug, Hole(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
91616-40820	Bolt, Engine Rear Cover Hinge Set	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
91616-61022	Bolt(for Transaxle & Engine Setting)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
91651-61025	Bolt with washer	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
91656-61025	Bolt(For Transaxle Case & Engine Setting)	Rear Spring & Shock Absorber ([09.1987 - ] (8709- )MS137,UZS131)
