UZS131

Toyota CROWN-MAJESTA · 1989 · 5,334 parts · 209 categories

5,334 items

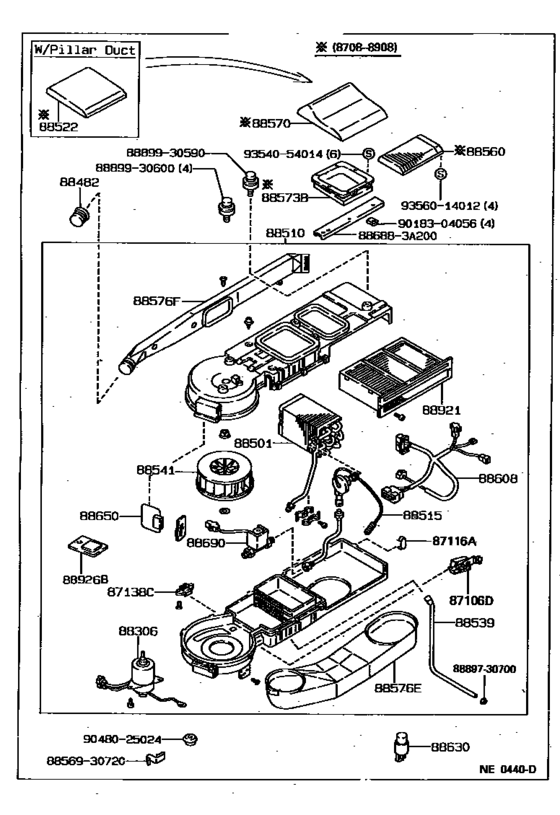

Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG) 39

#	OEM	Part name
87106	87106-30160	Servo Sub-Assy, Damper, No.1
87138	87138-30290	Resistor, Blower
88306	88550-30330	Motor Sub-Assy, Cooler Blower, No.1
88482	88482-30260	Cap, Cooler
88501	88501-30630	Evaporator Sub-Assy, Cooler, No.1
88501	88501-30660	Evaporator Sub-Assy, Cooler, No.1
88501	88501-30670	Evaporator Sub-Assy, Cooler, No.1
88510	88510-3A191	Unit Assy, Cooler
88510	88510-3A570	Unit Assy, Cooler
88510	88510-3A330	Unit Assy, Cooler
88510	88510-3A350	Unit Assy, Cooler
88510	88510-3A390	Unit Assy, Cooler
88515	88515-30310	Valve, Cooler Expansion
88515	88515-30332	Valve, Cooler Expansion
88515	88515-30333	Valve, Cooler Expansion
88539	88539-30610	Hose, Cooler Unit Drain, No.1
88539	88539-30630	Hose, Cooler Unit Drain, No.1
88541	88541-30280	Fan, Cooler Blower, No.1
88576	88576-30770	Duct, Cooler Air, No.1
88576	88576-30780	Duct, Cooler Air, No.2
88608	88608-30710	Harness Sub-Assy, Wiring Air Conditioner
88630	90987-02004	Relay Assy, Starter
88650	88650-30590	Amplifier Assy, Cooler Stabilizer
88650	88650-30660	Amplifier Assy, Cooler Stabilizer
88650	88650-30670	Amplifier Assy, Cooler Stabilizer
88690	88691-30510	Valve Assy, Cooler Magnet
88921	88926-30100	Filter, Air Purifier, No.1
88921	88926-30140	Filter, Air Purifier, No.1
88921	88926-30101	Filter, Air Purifier, No.1
88926	88926-30120	Odor, Cartridge
886883	88688-3A200	Bracket, Cooler Diaphragm
8856930720	88569-30720	Clamp (for Cooler Relay)
8889730700	88897-30700	Valve, Cooler Magnet
8889930590	88899-30590	Cover, Evaporator
8889930600	88899-30600	Cover, Evaporator
9018304056	90183-04056	Nut, Spring
9048025024	90480-25024	New Genuine Part
9354054014	93540-54014	SCREW
9356014012	93560-14012	SCREW

OEM	Part name	Category
87106-30160	Servo Sub-Assy, Damper, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
87138-30290	Resistor, Blower	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88482-30260	Cap, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88501-30630	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88501-30660	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88501-30670	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88510-3A191	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88510-3A330	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88510-3A350	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88510-3A390	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88510-3A570	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88515-30310	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88515-30332	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88515-30333	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88539-30610	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88539-30630	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88541-30280	Fan, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88550-30330	Motor Sub-Assy, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88569-30720	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88576-30770	Duct, Cooler Air, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88576-30780	Duct, Cooler Air, No.2	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88608-30710	Harness Sub-Assy, Wiring Air Conditioner	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88650-30590	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88650-30660	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88650-30670	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88688-3A200	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88691-30510	Valve Assy, Cooler Magnet	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88897-30700	Valve, Cooler Magnet	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88899-30590	Cover, Evaporator	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88899-30600	Cover, Evaporator	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88926-30100	Filter, Air Purifier, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88926-30101	Filter, Air Purifier, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88926-30120	Odor, Cartridge	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
88926-30140	Filter, Air Purifier, No.1	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
90183-04056	Nut, Spring	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
90480-25024	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
90987-02004	Relay Assy, Starter	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
93540-54014	SCREW	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
93560-14012	SCREW	Heating & Air Conditioning - Cooler Unit ([09.1987 - ] REAR(MEAKER OPT) (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131..ROY,ROYG)
