UZS131

Toyota CROWN-MAJESTA · 1989 · 5,334 parts · 209 categories
UZS131 ×

← Back to categories

5,334 items

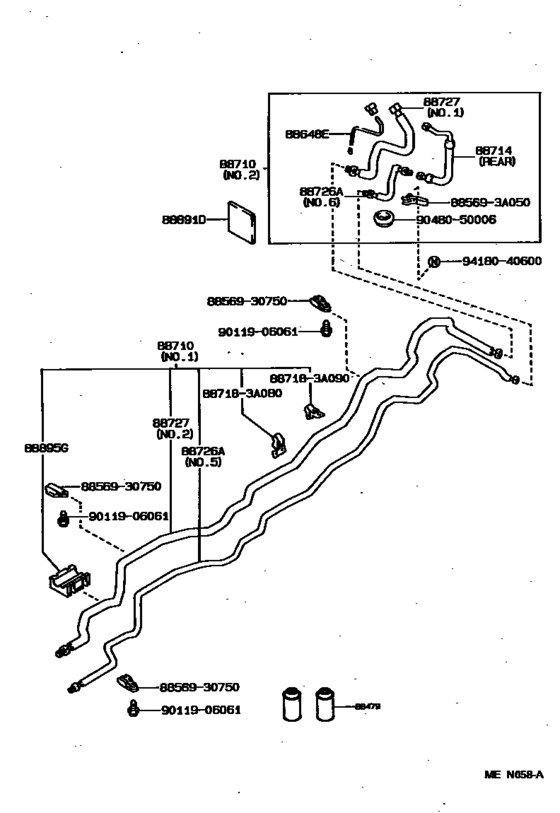

Heating & Air Conditioning - Cooler Piping ([09.1987 - ] (8709- )GS131..ROY..SPC ; (8709- )JZS131,M S135,137,UZS131) 26
#OEMPart name
88648 88648-30550 Wiring, Cooler
88710 88710-30430 Tube Assy, Air Conditioner
88710 88710-30460 Tube Assy, Air Conditioner
88714 88721-30310 Hose, Cooler Refrigerant Liquid, No.1
88726 88726-3A020 Pipe, Cooler Refrigerant Liquid, A
88726 88726-3A040 Pipe, Cooler Refrigerant Liquid, A
88726 88726-3A050 Pipe, Cooler Refrigerant Liquid, E
88726 88706-30320 Tube Sub-Assy, Liquid, A
88726 88726-3A090 Pipe, Cooler Refrigerant Liquid, A
88726 88726-3A100 Pipe, Cooler Refrigerant Liquid, B
88726 88706-30250 Tube Sub-Assy, Liquid, A
88726 88726-3A110 Pipe, Cooler Refrigerant Liquid, C
88726 88726-3A250 Pipe, Cooler Refrigerant Liquid, C
88727 88727-30720 Tube, Suction, No.2
88727 88727-30740 Tube, Suction, No.2
88727 88727-30750 Tube, Suction, No.2
88727 88727-3A030 Tube, Suction, No.2
88891 88578-30410 Packing, Cooler Pipe, No.1
88895 88895-30640 Bush
885693 88569-3A050 Clamp (for Cooler Relay)
887183 88718-3A080 Pipe, Cooler Refrigerant Suction, No.2
887183 88718-3A090 Pipe, Cooler Refrigerant Suction, No.2
8856930750 88569-30750 Clamp (for Cooler Relay)
9011906061 90119-06061 New Genuine Part
9048050006 90480-50006 New Genuine Part
9418040600 94180-40600 Retainer, Roof Window Hinge
