Search › Model › UZS131

UZS131

Toyota CROWN-MAJESTA · 1989 · 5,334 parts · 209 categories

5,334 items

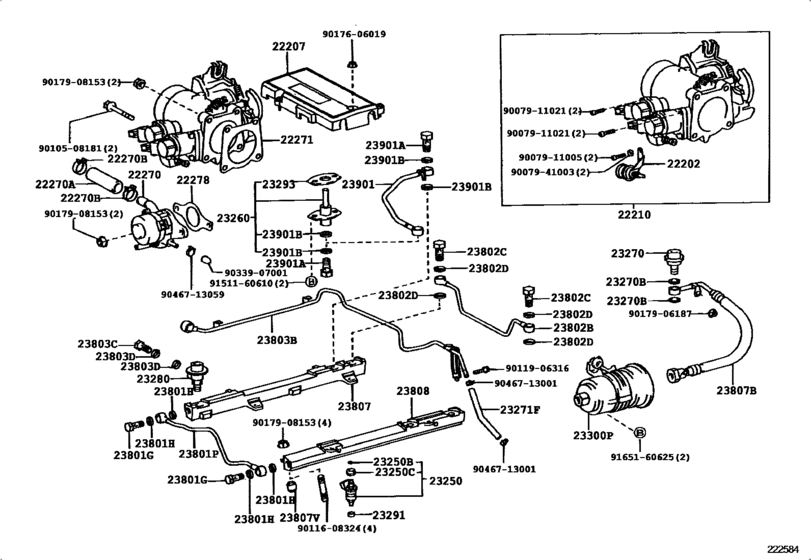

Fuel Injection System ([08.1989 - ] (8908- )1UZFE) 62

#	OEM	Part name
22202	22202-50011	Dash Pot Sub-Assy
22207	22207-50030	Cover Sub-Assy, Throttle Body
22210	22030-50020	Body Assy, Throttle
22270	22270-50010	Valve Assy, Idle Speed Control(For Thlottle Body)
22270	17341-50020	Hose, Air, No.1(For Idle Speed Control Valve)
22270	90467-22007	Clip(For Ventilation Hose)
22270	96134-52100	Clip(For Ventilation Hose)
22270	90467-23009	Clip Or Clamp(For Ventilation Hose)
22271	22271-50010	Gasket, Throttle Body
22278	22278-50010	Gasket, Idle Speed Control Valve
23250	23209-50010	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23260	23260-59035	Injector Assy, Cold Start Fuel
23260	23260-59045	Injector Assy, Cold Start Fuel
23270	23270-50010	Damper Assy, Fuel Pressure Pulsation
23270	23270-50012	Damper Assy, Fuel Pressure Pulsation
23270	23232-28010	Gasket(For Fuel Pump Hose)
23270	23232-41081	Gasket(For Fuel Pump Hose)
23270	90430-12005	Gasket(For Water Hole)
23270	90430-12026	Gasket
23271	23271-50020	Hose, Fuel
23280	23280-50010	Regulator Assy, Fuel Pressure
23291	23291-41010	Insulator, Injector Vibration
23293	23293-50010	Gasket, Cold Start Injector
23300	23300-50030	Filter, Fuel(For Efi)
23801	90401-12023	Bolt, Union(For Fuel Pipe)
23801	23801-50010	Pipe Sub-Assy, Fuel, No.1
23802	23802-50010	Pipe Sub-Assy, Fuel, No.2
23802	23802-50011	Pipe Sub-Assy, Fuel, No.2
23803	23803-50030	Pipe Sub-Assy, Fuel, No.3
23803	90401-10038	Bolt, Union(For Fuel Pipe Or Hose Set)
23803	90430-10012	Gasket(For Turbo Oil Inlet Pipe)
23803	90430-10204	Gasket(For Water Hole)
23807	23807-50010	Pipe Sub-Assy, Fuel Delivery
23807	23807-50011	Pipe Sub-Assy, Fuel Delivery
23807	90923-01368	Hose, Fuel Delivery Pipe
23807	90561-08029	Spacer, No.1(For Delivery Pipe)
23808	23808-50010	Pipe Sub-Assy, Fuel Delivery, No.2
23808	23808-50011	Pipe Sub-Assy, Fuel Delivery, No.2
23901	23901-50010	Tube Sub-Assy, Fuel
23901	90401-08007	Bolt, Union(For Fuel Tube)
23901	90430-08005	Gasket
23901	90430-08012	Gasket
9007911005	90079-11005	New Genuine Part
9007911021	90079-11021	New Genuine Part
9007941003	90079-41003	New Genuine Part
9010508181	90105-08181	Bolt(For Alternator)
9010508181	91511-J0840	Bolt(For Alternator)
9011608324	90116-08324	New Genuine Part
9011906316	90119-06316	New Genuine Part
9017606019	90176-06019	Nut (For Rear Wiper Arm Setting)
9017906187	90179-06187	New Genuine Part
9017908153	90179-08153	NUT
9033907001	90339-07001	Plug, Heater Water
9046713001	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001	96135-51300	Clamp, Hose
9046713059	90467-13059	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713059	90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)
9151160610	91511-60610	New Genuine Part
9151160610	91511-B0610	BOLT FLANGE
9165160625	91651-60625	New Genuine Part

OEM	Part name	Category
17341-50020	Hose, Air, No.1(For Idle Speed Control Valve)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
22030-50020	Body Assy, Throttle	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
22202-50011	Dash Pot Sub-Assy	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
22207-50030	Cover Sub-Assy, Throttle Body	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
22270-50010	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
22271-50010	Gasket, Throttle Body	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
22278-50010	Gasket, Idle Speed Control Valve	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23209-50010	Injector Assy, Fuel	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23232-28010	Gasket(For Fuel Pump Hose)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23232-41081	Gasket(For Fuel Pump Hose)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23260-59035	Injector Assy, Cold Start Fuel	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23260-59045	Injector Assy, Cold Start Fuel	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23270-50010	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23270-50012	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23271-50020	Hose, Fuel	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23280-50010	Regulator Assy, Fuel Pressure	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23293-50010	Gasket, Cold Start Injector	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23300-50030	Filter, Fuel(For Efi)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23801-50010	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23802-50010	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23802-50011	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23803-50030	Pipe Sub-Assy, Fuel, No.3	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23807-50010	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23807-50011	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23808-50010	Pipe Sub-Assy, Fuel Delivery, No.2	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23808-50011	Pipe Sub-Assy, Fuel Delivery, No.2	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
23901-50010	Tube Sub-Assy, Fuel	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90079-11005	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90079-11021	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90079-41003	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90105-08181	Bolt(For Alternator)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90116-08324	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90119-06316	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90176-06019	Nut (For Rear Wiper Arm Setting)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90179-06187	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90179-08153	NUT	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90339-07001	Plug, Heater Water	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90401-08007	Bolt, Union(For Fuel Tube)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90401-10038	Bolt, Union(For Fuel Pipe Or Hose Set)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90401-12023	Bolt, Union(For Fuel Pipe)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90430-08005	Gasket	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90430-08012	Gasket	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90430-10012	Gasket(For Turbo Oil Inlet Pipe)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90430-10204	Gasket(For Water Hole)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90430-12005	Gasket(For Water Hole)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90430-12026	Gasket	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90467-13054	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90467-13059	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90467-22007	Clip(For Ventilation Hose)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90467-23009	Clip Or Clamp(For Ventilation Hose)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90561-08029	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
90923-01368	Hose, Fuel Delivery Pipe	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
91511-60610	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
91511-B0610	BOLT FLANGE	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
91511-J0840	Bolt(For Alternator)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
91651-60625	New Genuine Part	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
96134-52100	Clip(For Ventilation Hose)	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
96135-51300	Clamp, Hose	Fuel Injection System ([08.1989 - ] (8908- )1UZFE)
