Search › Model › UZS131

UZS131

Toyota CROWN-MAJESTA · 1989 · 5,334 parts · 209 categories

5,334 items

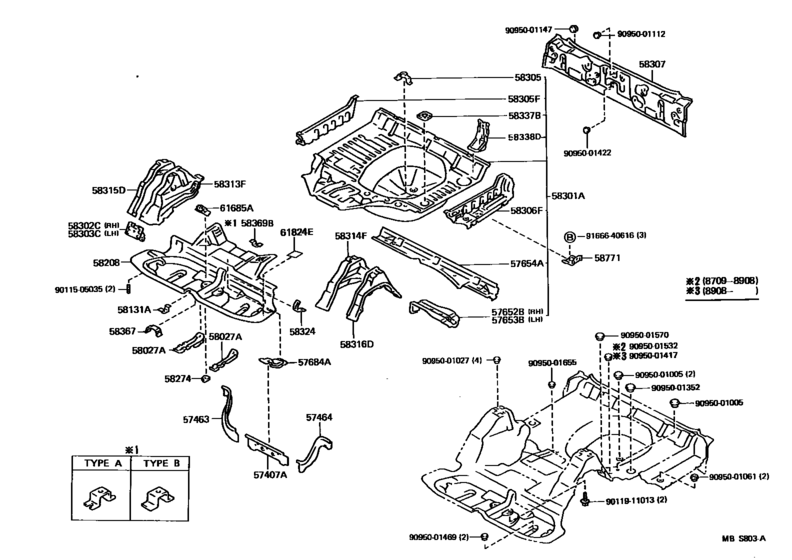

Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131) 55

#	OEM	Part name
57407	57461-30050	Member Sub-Assy, Center Floor Cross
57463	57463-30030	Member, Center Floor Cross, No.3
57464	57464-30030	Strength, Center Floor Crossmember
57652	57652-30040	Member, Rear Floor Cross, Front Rh
57652	57652-30041	Member, Rear Floor Cross, Front Rh
57653	57653-30060	Member, Rear Floor Cross, Front Lh
57653	57653-30061	Member, Rear Floor Cross, Front Lh
57654	57654-30060	Member, Rear Floor Cross, No.3
57684	57684-30040	Bracket, Fuel Tank Mounting, No.2
58027	58027-30010	Reinforce Sub-Assy, Seat Belt Anchor
58027	58028-30080	Reinforce Sub-Assy, Seat Belt Anchor
58131	58131-14030	Bracket, Mounting, Floor, No.1
58208	58211-30230	Pan, Center Floor
58274	58274-30020	Reinforcement, Belt Anchor To Center Floor, No.1
58301	58301-30451	Panel Sub-Assy, Rear Floor
58302	58302-30030	Bracket Sub-Assy, Rear Absorber, Rh
58303	58303-30060	Bracket Sub-Assy, Rear Absorber, Lh
58305	58305-10011	Bracket Sub-Assy, Spare Wheel Clamp
58305	58305-30110	Panel Sub-Assy, Rear Floor Side, Rh
58306	58306-30110	Panel Sub-Assy, Rear Floor Side, Lh
58307	58307-30470	Panel Sub-Assy, Body Lower Back
58313	58313-30090	Extension, Rear Floor Pan To Quarter Panel, Rh
58314	58314-30080	Extension, Rear Floor Pan To Quarter Panel, Lh
58315	58315-30010	Extension, Rear Floor Pan, Rh
58316	58316-30020	Extension, Rear Floor Pan, Lh
58324	47351-30220	Bracket, Flexible Hose
58337	58337-30060	Reinforcement, No.7 Body Mounting
58338	58338-30040	Reinforcement, Tail End Body Mounting
58338	58338-30041	Reinforcement, Tail End Body Mounting
58367	58367-30090	Bracket, Fuel Tube Clamp
58369	58369-30040	Bracket, Fuel Tube, No.3
58369	58369-32010	Bracket, Insulator Heat
58771	58795-30010	Clamp, Jack, No.1
61824	61824-30010	Plate, Noise Control, No.1
9011505035	90115-05035	New Genuine Part
9011911013	90119-11013	New Genuine Part
9095001005	90950-01005	PLUGHOLE
9095001005	90950-01867	PLUG HOLE
9095001027	90950-01027	Plug, Hole, No.3(For Dash Panel)
9095001061	90950-01061	Plug, Hole, No.3(For Dash Panel)
9095001061	90950-01872	Plug, Hole, No.3(For Dash Panel)
9095001112	90950-01112	Plug, Hole(For Heater Control Cable Hole)
9095001147	90950-01147	Plug, Hole(For Luggage Compartment Door Panel)
9095001147	90950-01864	Plug, Hole(For Luggage Compartment Door Panel)
9095001352	90950-01352	New Genuine Part
9095001417	90950-01417	PLUG
9095001417	90950-01865	PLUG HOLE
9095001422	90950-01422	New Genuine Part
9095001422	90950-01528	New Genuine Part
9095001469	90950-01469	New Genuine Part
9095001532	90950-01532	New Genuine Part
9095001570	90950-01570	Lid, Spare Wheel Carrier, No.1
9095001655	90950-01655	New Genuine Part
9166640616	91666-40616	New Genuine Part
9166640616	91661-60616	BOLT

OEM	Part name	Category
47351-30220	Bracket, Flexible Hose	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
57461-30050	Member Sub-Assy, Center Floor Cross	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
57463-30030	Member, Center Floor Cross, No.3	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
57464-30030	Strength, Center Floor Crossmember	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
57652-30040	Member, Rear Floor Cross, Front Rh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
57652-30041	Member, Rear Floor Cross, Front Rh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
57653-30060	Member, Rear Floor Cross, Front Lh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
57653-30061	Member, Rear Floor Cross, Front Lh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
57654-30060	Member, Rear Floor Cross, No.3	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
57684-30040	Bracket, Fuel Tank Mounting, No.2	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58027-30010	Reinforce Sub-Assy, Seat Belt Anchor	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58028-30080	Reinforce Sub-Assy, Seat Belt Anchor	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58131-14030	Bracket, Mounting, Floor, No.1	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58211-30230	Pan, Center Floor	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58274-30020	Reinforcement, Belt Anchor To Center Floor, No.1	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58301-30451	Panel Sub-Assy, Rear Floor	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58302-30030	Bracket Sub-Assy, Rear Absorber, Rh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58303-30060	Bracket Sub-Assy, Rear Absorber, Lh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58305-10011	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58305-30110	Panel Sub-Assy, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58306-30110	Panel Sub-Assy, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58307-30470	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58313-30090	Extension, Rear Floor Pan To Quarter Panel, Rh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58314-30080	Extension, Rear Floor Pan To Quarter Panel, Lh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58315-30010	Extension, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58316-30020	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58337-30060	Reinforcement, No.7 Body Mounting	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58338-30040	Reinforcement, Tail End Body Mounting	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58338-30041	Reinforcement, Tail End Body Mounting	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58367-30090	Bracket, Fuel Tube Clamp	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58369-30040	Bracket, Fuel Tube, No.3	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58369-32010	Bracket, Insulator Heat	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
58795-30010	Clamp, Jack, No.1	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
61824-30010	Plate, Noise Control, No.1	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90115-05035	New Genuine Part	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90119-11013	New Genuine Part	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01005	PLUGHOLE	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01027	Plug, Hole, No.3(For Dash Panel)	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01061	Plug, Hole, No.3(For Dash Panel)	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01112	Plug, Hole(For Heater Control Cable Hole)	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01147	Plug, Hole(For Luggage Compartment Door Panel)	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01352	New Genuine Part	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01417	PLUG	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01422	New Genuine Part	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01469	New Genuine Part	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01528	New Genuine Part	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01532	New Genuine Part	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01570	Lid, Spare Wheel Carrier, No.1	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01655	New Genuine Part	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01864	Plug, Hole(For Luggage Compartment Door Panel)	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01865	PLUG HOLE	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01867	PLUG HOLE	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
90950-01872	Plug, Hole, No.3(For Dash Panel)	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
91661-60616	BOLT	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
91666-40616	New Genuine Part	Floor Pan & Lower Back Panel ([09.1987 - ] (8709- )GS131,JZS131,LS131,MS135,137,UZS131)
