Search › Model › UZJ120

UZJ120

Lexus GX · 2002 · 6,465 parts · 218 categories

6,465 items

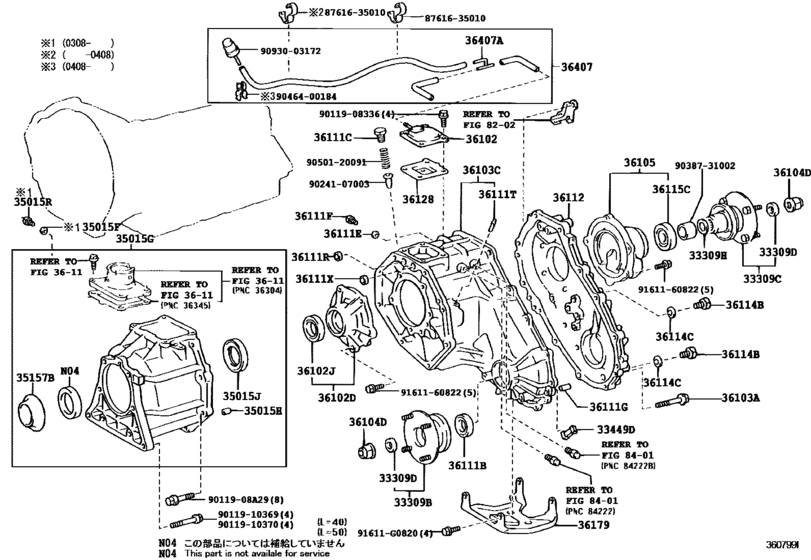

Transfer Case & Extension Housing ([11.2002 - ] (0211- )) 57

#	OEM	Part name
33309	33309-35111	Flange Sub-Assy, Output Shaft Companion
33309	33309-35112	Flange Sub-Assy, Output Shaft Companion
33309	90311-41017	Seal, Oil (For Transfer Case)
33309	33309-35113	Flange Sub Assembly Out
33309	33309-35130	Flange Sub-Assy, Output Shaft Companion (Front)
33309	90311-41013	Seal, Oil (For Transfer Case)
33309	33309-35120	Flange Sub-Assy, Output Shaft Companion
33309	90312-23001	Seal, Oil(For Transfer Output Shaft Companion Flange)
33309	36275-35030	Washer, Transfer Output Shaft
33449	33449-32020	Magnet, Transmission
35015	90301-15004	Ring, O(For Oil Cooler Tube Union)
35015	90521-72001	Ring, Hole Snap(For Transfer Adapter)
35015	35015-60120	Adapter, Transfer, Rear
35015	35015-60190	Adapter, Transfer, Rear
35015	90250-11003	Pin, Ring(For Transfer Case)
35015	90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)
35015	90311-43007	Seal, Oil(For Transfer Case Adapter Rear)
35015	90341-18059	Plug, W/head Straight Screw(For Transmission Case Adapter)
35157	35157-60010	Receiver, Transfer Case Rear Adapter Oil
36102	36102-35040	Cover Sub-Assy, Transfer Case
36102	36102-35060	Retainer Sub-Assy, Transfer Rh Bearing
36102	90311-43008	Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)
36103	90119-08A28	Bolt (For Transfer Case)
36103	36103-60350	Case, Transfer, Front
36104	90179-22016	Nut (For Manual Transmission Output Shaft Rear Set)
36105	36105-35050	Housing Sub-Assy, Transfer Extension, Front
36111	90311-41010	Seal, Oil (For Transfer Case)
36111	90311-41012	Seal, Oil (For Transfer Case)
36111	90341-14012	Plug (For Transfer Case)
36111	90430-18008	Gasket
36111	90430-T0021	Gasket(For Manual Transmission Filler Plug)
36111	90341-18006	Plug (No magnet)
36111	90250-10214	Pin, Straight(For End Plate)
36111	90331-25005	Plug, Tight (For Transfer Case)
36111	90441-05001	Tube (For Transfer Case)
36111	90311-15008	Seal, Oil (For Transfer Case)
36112	36112-60170	Case, Transfer, Rear
36115	90311-41007	Seal, Oil (Transfer Extension Front Housing Sub-Assy)
36115	90311-41020	Oil Seal (Transfer Extension Housing Sub-Assy)
36128	36128-35060	Deflector Sub-Assy, Breather Oil
36179	36179-35020	Protector, Transfer Case Lower
36179	36179-60030	Protector, Transfer Case Lower
36407	36407-60090	Hose Sub-Assy, Transfer Breather
36407	36407-60130	Hose Sub-Assy, Transfer Breather
36407	90413-04008	Way, 3(For Transfer Breather Hose)
91611	91611-G0820	Bolt
9011908	90119-08A29	Bolt(For Head To Camshaft Bearing Cap)
8761635010	87616-35010	Clamp, Cooling Unit Case
9011908336	90119-08336	BOLT
9011910369	90119-10369	New Genuine Part
9011910370	90119-10370	New Genuine Part
9024107003	90241-07003	Pin, Slotted Spring (For Transfer Case)
9038731002	90387-31002	COLLAR
9046400184	90464-00184	Clamp, Vacuum Tube
9050120091	90501-20091	Spring, Compression (For Transfer Case)
9093003172	90930-03172	PLUG BREATHER
9161160822	91611-60822	Bolt

OEM	Part name	Category
33309-35111	Flange Sub-Assy, Output Shaft Companion	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
33309-35112	Flange Sub-Assy, Output Shaft Companion	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
33309-35113	Flange Sub Assembly Out	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
33309-35120	Flange Sub-Assy, Output Shaft Companion	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
33309-35130	Flange Sub-Assy, Output Shaft Companion (Front)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
33449-32020	Magnet, Transmission	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
35015-60120	Adapter, Transfer, Rear	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
35015-60190	Adapter, Transfer, Rear	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
35157-60010	Receiver, Transfer Case Rear Adapter Oil	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36102-35040	Cover Sub-Assy, Transfer Case	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36102-35060	Retainer Sub-Assy, Transfer Rh Bearing	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36103-60350	Case, Transfer, Front	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36105-35050	Housing Sub-Assy, Transfer Extension, Front	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36112-60170	Case, Transfer, Rear	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36128-35060	Deflector Sub-Assy, Breather Oil	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36179-35020	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36179-60030	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36275-35030	Washer, Transfer Output Shaft	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36407-60090	Hose Sub-Assy, Transfer Breather	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
36407-60130	Hose Sub-Assy, Transfer Breather	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
87616-35010	Clamp, Cooling Unit Case	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90119-08336	BOLT	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90119-08A28	Bolt (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90119-08A29	Bolt(For Head To Camshaft Bearing Cap)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90119-10369	New Genuine Part	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90119-10370	New Genuine Part	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90179-22016	Nut (For Manual Transmission Output Shaft Rear Set)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90241-07003	Pin, Slotted Spring (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90250-10214	Pin, Straight(For End Plate)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90250-11003	Pin, Ring(For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90301-15004	Ring, O(For Oil Cooler Tube Union)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90311-15008	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90311-41007	Seal, Oil (Transfer Extension Front Housing Sub-Assy)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90311-41010	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90311-41012	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90311-41013	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90311-41017	Seal, Oil (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90311-41020	Oil Seal (Transfer Extension Housing Sub-Assy)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90311-43007	Seal, Oil(For Transfer Case Adapter Rear)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90311-43008	Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90312-23001	Seal, Oil(For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90331-25005	Plug, Tight (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90341-14012	Plug (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90341-18006	Plug (No magnet)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90341-18059	Plug, W/head Straight Screw(For Transmission Case Adapter)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90387-31002	COLLAR	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90413-04008	Way, 3(For Transfer Breather Hose)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90430-18008	Gasket	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90441-05001	Tube (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90464-00184	Clamp, Vacuum Tube	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90501-20091	Spring, Compression (For Transfer Case)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90521-72001	Ring, Hole Snap(For Transfer Adapter)	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
90930-03172	PLUG BREATHER	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
91611-60822	Bolt	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
91611-G0820	Bolt	Transfer Case & Extension Housing ([11.2002 - ] (0211- ))
