Search › Model › UZJ100

UZJ100

Toyota LAND-CRUISER · 1998 · 5,176 parts · 268 categories

5,176 items

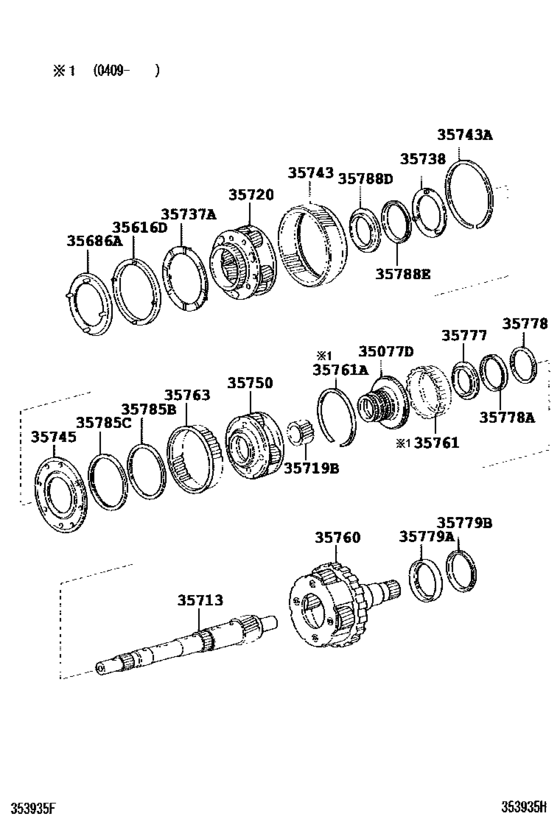

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC) 27

#	OEM	Part name
35077	35077-60010	Flange Sub-Assy, Rr Planetary Ring Gear
35616	35616-60010	Washer, Clutch Drum Thrust
35686	35686-60010	Washer, Clutch Drum Thrust, No.2
35713	35713-60050	Shaft, Intermediate
35719	35719-60050	Gear, Planetary Sun
35720	35720-60080	Gear Assy, Front Planetary
35737	35737-60030	Washer, Planetary Carrier Thrust, No.1
35738	35738-60030	Washer, Planetary Carrier Thrust, No.2
35743	35743-60050	Gear, Front Planetary Ring
35743	35743-60060	Gear, Front Planetary Ring
35743	35763-60020	Gear, Center Planetary Ring
35743	90520-99076	Ring, Shaft Snap (For Front Planetary Ring Gear)
35745	35745-60010	Flange, Front Planetary Ring Gear
35750	35750-60010	Gear Assy, Center Planetary
35760	35760-60071	Gear Assy, Rear Planetary
35761	35761-60040	Gear, Rear Planetary Ring
35761	90520-99073	Ring, Snap (For Rear Planetary Ring Gear Flange)
35763	35763-60010	Gear, Center Planetary Ring
35777	35777-60010	Race, Thrust Bearing, No.7
35778	35778-60010	Race, Thrust Bearing, No.8
35778	90374-32010	Bearing, Thrust Needle Roller
35779	35779-60011	Race, Thrust Bearing, No.9
35779	90374-43007	Bearing, Thrust Needle Roller
35785	35785-60010	Race, Thrust Bearing, No.4
35785	90374-55004	Bearing, Thrust Needle Roller
35788	35788-60010	Race, Thrust Bearing, No.3
35788	90374-44005	Bearing, Thrust Needle Roller

OEM	Part name	Category
35077-60010	Flange Sub-Assy, Rr Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35616-60010	Washer, Clutch Drum Thrust	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35686-60010	Washer, Clutch Drum Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35713-60050	Shaft, Intermediate	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35719-60050	Gear, Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35720-60080	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35737-60030	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35738-60030	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35743-60050	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35743-60060	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35745-60010	Flange, Front Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35750-60010	Gear Assy, Center Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35760-60071	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35761-60040	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35763-60010	Gear, Center Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35763-60020	Gear, Center Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35777-60010	Race, Thrust Bearing, No.7	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35778-60010	Race, Thrust Bearing, No.8	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35779-60011	Race, Thrust Bearing, No.9	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35785-60010	Race, Thrust Bearing, No.4	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
35788-60010	Race, Thrust Bearing, No.3	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
90374-32010	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
90374-43007	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
90374-44005	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
90374-55004	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
90520-99073	Ring, Snap (For Rear Planetary Ring Gear Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)
90520-99076	Ring, Shaft Snap (For Front Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.2002 - ] A750F (0208- )5FC)

Source: Public OEM parts-catalog data
Variants: 2 / 30
Category: 268
Collected: 2026-07-23
