USK56

Toyota TUNDRA · 2007 · 3,611 parts · 203 categories

3,611 items

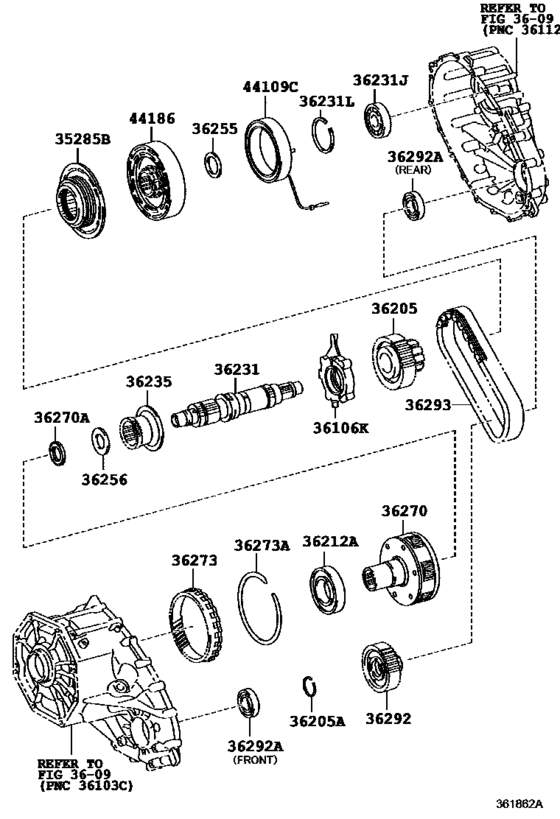

Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57) 21

#	OEM	Part name
35285	35285-0C010	Plate, Solenoid Lock
36106	36106-0C010	Body Sub-Assy, Transfer Oil Pump
36205	36205-0C010	Sprocket Sub-Assy, Transfer Drive
36205	90520-A0041	Ring, Shaft Snap
36212	90363-A0011	Bearing, Radial Ball (For Transfer Input Gear)
36231	36231-0C010	Shaft, Transfer Output, Rear
36231	90363-A0012	Bearing, Radial Ball (For Transfer Output Shaft Rear)
36231	90520-A0039	Ring, Shaft Snap (For Transfer Output Shaft Rear)
36235	36235-0C010	Sleeve, Transfer High & Low Clutch
36255	36255-0C010	Spacer, Transfer Output Shaft, No.1
36256	36256-0C010	Spacer, Transfer Output Shaft, No.2
36270	36270-0C020	Gear Assy, Transfer Low Planetary
36270	90374-A0043	Bearing (For Transfer Low Planetary Gear)
36273	36273-0C010	Gear, Transfer Low Planetary Ring
36273	90520-A0040	Ring, Hole Snap (For Transfer Low Planetary Ring Gear)
36292	36292-0C010	Sprocket, Transfer Driven
36292	90363-A0013	Bearing (For Transfer Driven Sprocket)
36292	90363-A0014	Bearing (For Transfer Driven Sprocket)
36293	36293-0C010	Chain, Transfer Front Drive
44109	44109-0C010	Coil Sub-Assy, Solenoid
44186	44186-0C010	Cover, Solenoid

OEM	Part name	Category
35285-0C010	Plate, Solenoid Lock	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
36106-0C010	Body Sub-Assy, Transfer Oil Pump	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
36205-0C010	Sprocket Sub-Assy, Transfer Drive	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
36231-0C010	Shaft, Transfer Output, Rear	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
36235-0C010	Sleeve, Transfer High & Low Clutch	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
36255-0C010	Spacer, Transfer Output Shaft, No.1	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
36256-0C010	Spacer, Transfer Output Shaft, No.2	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
36270-0C020	Gear Assy, Transfer Low Planetary	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
36273-0C010	Gear, Transfer Low Planetary Ring	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
36292-0C010	Sprocket, Transfer Driven	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
36293-0C010	Chain, Transfer Front Drive	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
44109-0C010	Coil Sub-Assy, Solenoid	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
44186-0C010	Cover, Solenoid	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
90363-A0011	Bearing, Radial Ball (For Transfer Input Gear)	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
90363-A0012	Bearing, Radial Ball (For Transfer Output Shaft Rear)	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
90363-A0013	Bearing (For Transfer Driven Sprocket)	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
90363-A0014	Bearing (For Transfer Driven Sprocket)	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
90374-A0043	Bearing (For Transfer Low Planetary Gear)	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
90520-A0039	Ring, Shaft Snap (For Transfer Output Shaft Rear)	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
90520-A0040	Ring, Hole Snap (For Transfer Low Planetary Ring Gear)	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
90520-A0041	Ring, Shaft Snap	Transfer Gear ([08.2013 - ] (1308- )UPK56,USK56,57)
