Search › Model › USK56

USK56

Toyota TUNDRA · 2007 · 3,611 parts · 203 categories

3,611 items

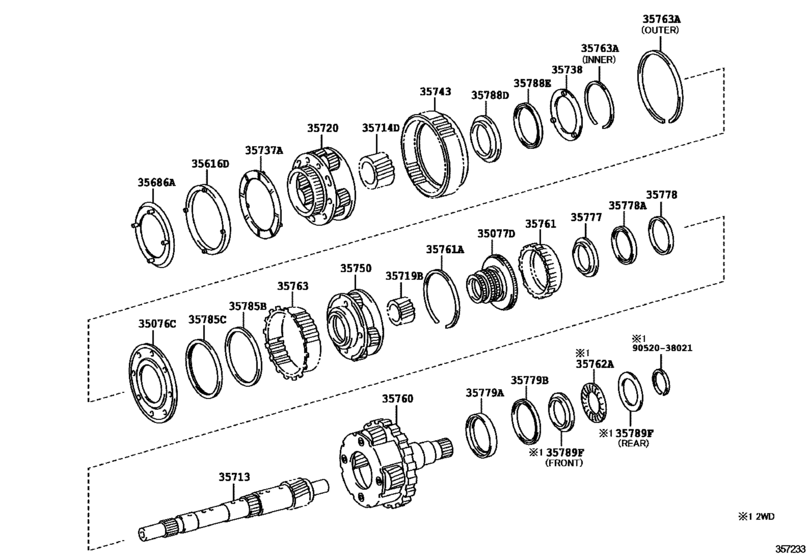

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#) 29

#	OEM	Part name
35076	35076-34020	Flange Sub-Assy, Front Planetary Ring Gear
35077	35077-0C030	Flange Sub-Assy, Rr Planetary Ring Gear
35616	35616-34010	Washer, Clutch Drum Thrust
35686	35686-34010	Washer, Clutch Drum Thrust, No.2
35713	35713-0C020	Shaft, Intermediate
35714	35714-34010	Gear, Fr Planetary Sun
35719	35719-34010	Gear, Planetary Sun
35720	35720-34020	Gear Assy, Front Planetary
35737	35737-34010	Washer, Planetary Carrier Thrust, No.1
35738	35738-34010	Washer, Planetary Carrier Thrust, No.2
35743	35743-34010	Gear, Front Planetary Ring
35750	35750-34010	Gear Assy, Center Planetary
35760	35760-0C060	Gear Assy, Rear Planetary
35761	35761-0C020	Gear, Rear Planetary Ring
35761	90520-99137	Ring, Hole Snap (For Rear Planetary Ring Gear)
35761	90520-A0050	Ring, Hole Snap (For Rear Planetary Ring Gear)
35763	35763-34020	Gear, Center Planetary Ring
35763	90520-99139	Ring, Snap(For Center Planetary Ring Gear)
35763	90520-99140	Ring, Snap(For Center Planetary Ring Gear)
35777	35777-0C020	Race, Thrust Bearing, No.7
35778	35778-0C020	Race, Thrust Bearing, No.8
35778	90374-A0019	Bearing, Thrust Needle Roller
35779	35779-0C020	Race, Thrust Bearing, No.9
35779	90374-A0017	Bearing, Thrust Needle Roller
35785	35785-34010	Race, Thrust Bearing, No.4
35785	90374-65002	Bearing, Thrust Needle Roller
35788	35788-34010	Race, Thrust Bearing, No.3
35788	90374-54004	Bearing, Thrust Needle Roller
9052038021	90520-38021	New Genuine Part

OEM	Part name	Category
35076-34020	Flange Sub-Assy, Front Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35077-0C030	Flange Sub-Assy, Rr Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35616-34010	Washer, Clutch Drum Thrust	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35686-34010	Washer, Clutch Drum Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35713-0C020	Shaft, Intermediate	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35714-34010	Gear, Fr Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35719-34010	Gear, Planetary Sun	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35720-34020	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35737-34010	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35738-34010	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35743-34010	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35750-34010	Gear Assy, Center Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35760-0C060	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35761-0C020	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35763-34020	Gear, Center Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35777-0C020	Race, Thrust Bearing, No.7	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35778-0C020	Race, Thrust Bearing, No.8	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35779-0C020	Race, Thrust Bearing, No.9	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35785-34010	Race, Thrust Bearing, No.4	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
35788-34010	Race, Thrust Bearing, No.3	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
90374-54004	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
90374-65002	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
90374-A0017	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
90374-A0019	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
90520-38021	New Genuine Part	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
90520-99137	Ring, Hole Snap (For Rear Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
90520-99139	Ring, Snap(For Center Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
90520-99140	Ring, Snap(For Center Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
90520-A0050	Ring, Hole Snap (For Rear Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.2007 - ] AB60E,AB60F (0701- )USK5#)
