Search › Model › USK56

USK56

Toyota TUNDRA · 2007 · 3,611 parts · 203 categories

3,611 items

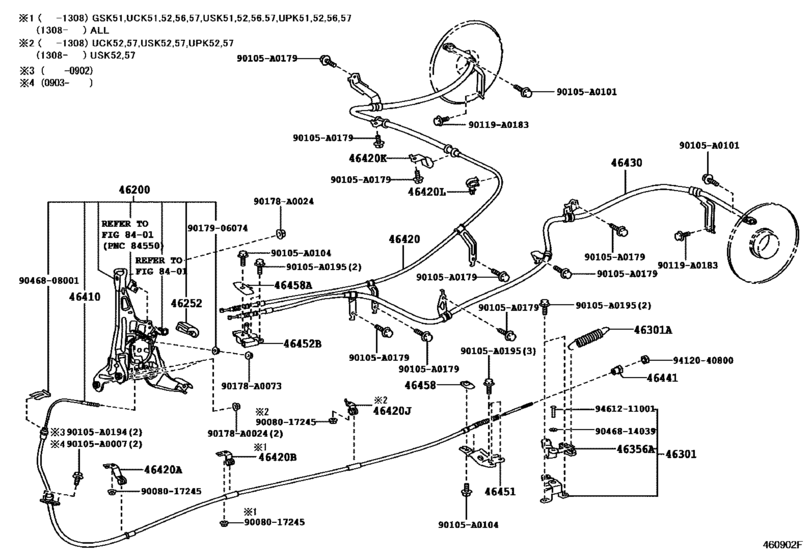

Parking Brake & Cable ([11.2006 - ] (0611- )) 56

#	OEM	Part name
46200	46200-0C010	Pedal Assy, Parking Brake Control
46200	46200-0C020	Pedal Assy, Parking Brake Control
46252	46252-68010	Pad, Parking Pedal
46301	46320-0C010	Lever Sub-Assy, Parking Brake Intermediate
46301	46320-0C011	Lever Sub-Assy, Parking Brake Intermediate
46301	90506-20060	Spring, Tension(For Intermediate Lever)
46356	46356-0C010	Bracket, Intermediate Lever(For Parking Brake)
46356	46356-0C011	Bracket, Intermediate Lever(For Parking Brake)
46410	46410-0C010	Cable Assy, Parking Brake, No.1
46410	46410-0C020	Cable Assy, Parking Brake, No.1
46420	46420-0C061	Cable Assy, Parking Brake, No.2
46420	46420-0C090	Cable Assy, Parking Brake, No.2
46420	46420-0C091	Cable Assy, Parking Brake, No.2
46420	46411-0C030	Clamp, No.1(For Parking Brake Cable)
46420	46411-0C040	Clamp, No.2(For Parking Brake Cable)
46420	46421-0C010	Clamp, No.4(For Parking Brake Cable)
46420	46421-0C030	Clamp, No.5(For Parking Brake Cable)
46430	46430-0C011	Cable Assy, Parking Brake, No.3
46430	46430-0C040	Cable Assy, Parking Brake, No.3
46430	46430-0C041	Cable Assy, Parking Brake, No.3
46441	46441-04010	Nut, Wire Adjusting, No.1
46451	46451-0C010	Bracket, Cable Support
46452	46452-0C010	Bracket, Cable Support, No.2
46458	46458-0C010	Retainer, Cable
46458	46458-0C020	Retainer, Cable
46503	46503-0C012	Plate Sub-Assy, Parking Brake, Rh
46503	46503-0C030	Plate Sub-Assy, Parking Brake, Rh
46504	46504-0C012	Plate Sub-Assy, Parking Brake, Lh
46504	46504-0C030	Plate Sub-Assy, Parking Brake, Lh
46505	46505-0C010	Block Sub-Assy, Parking Brake Anchor
46540	46530-0C010	Shoe Assy, Parking Brake, Rh Or Center No.1
46550	90016-DY002	Spring, Tension, No.1(For Parking Brake Shoe Return)
46550	90016-DY003	Spring, Tension, No.1(For Parking Brake Shoe Return)
46601	46601-0C012	Lever Sub-Assy, Parking Brake Shoe, Rh
46602	46602-0C012	Lever Sub-Assy, Parking Brake Shoe, Lh
47405	46605-06080	Screw Set, Shoe Adjusting, Rh(For Parking Brake)
47406	46606-06080	Screw Set, Shoe Adjusting, Lh(For Parking Brake)
47447	47447-22010	Pin, Shoe Hold Down Spring
47447	90016-DY001	Spring, Compression(For Parking Brake Shoe Hold Down)
47449	46557-0C012	Cup, Shoe Hold Down Spring, No.1(For Parking Brake)
90105	90105-A0007	BOLT FLANGE
90105	90105-A0101	New Genuine Part
90105	90105-A0104	New Genuine Part
90105	90105-A0179	New Genuine Part
90105	90105-A0194	New Genuine Part
90105	90105-A0195	New Genuine Part
90119	90119-A0183	Bolt (For Transmission Control Cable Bracket)
90178	90178-A0024	New Genuine Part
90178	90178-A0073	Nut, Wire Adjusting, No.2
9008017245	90080-17245	New Genuine Part
9017906074	90179-06074	Nut(For Suspension Control Oil Cooler)
9046808001	90468-08001	CLIP
9046814039	90468-14039	CLIP
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9415121201	94151-21201	Nut(For Parking Brake Plate To Rear Axle Housing)
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
46200-0C010	Pedal Assy, Parking Brake Control	Parking Brake & Cable ([11.2006 - ] (0611- ))
46200-0C020	Pedal Assy, Parking Brake Control	Parking Brake & Cable ([11.2006 - ] (0611- ))
46252-68010	Pad, Parking Pedal	Parking Brake & Cable ([11.2006 - ] (0611- ))
46320-0C010	Lever Sub-Assy, Parking Brake Intermediate	Parking Brake & Cable ([11.2006 - ] (0611- ))
46320-0C011	Lever Sub-Assy, Parking Brake Intermediate	Parking Brake & Cable ([11.2006 - ] (0611- ))
46356-0C010	Bracket, Intermediate Lever(For Parking Brake)	Parking Brake & Cable ([11.2006 - ] (0611- ))
46356-0C011	Bracket, Intermediate Lever(For Parking Brake)	Parking Brake & Cable ([11.2006 - ] (0611- ))
46410-0C010	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([11.2006 - ] (0611- ))
46410-0C020	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([11.2006 - ] (0611- ))
46411-0C030	Clamp, No.1(For Parking Brake Cable)	Parking Brake & Cable ([11.2006 - ] (0611- ))
46411-0C040	Clamp, No.2(For Parking Brake Cable)	Parking Brake & Cable ([11.2006 - ] (0611- ))
46420-0C061	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([11.2006 - ] (0611- ))
46420-0C090	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([11.2006 - ] (0611- ))
46420-0C091	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([11.2006 - ] (0611- ))
46421-0C010	Clamp, No.4(For Parking Brake Cable)	Parking Brake & Cable ([11.2006 - ] (0611- ))
46421-0C030	Clamp, No.5(For Parking Brake Cable)	Parking Brake & Cable ([11.2006 - ] (0611- ))
46430-0C011	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([11.2006 - ] (0611- ))
46430-0C040	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([11.2006 - ] (0611- ))
46430-0C041	Cable Assy, Parking Brake, No.3	Parking Brake & Cable ([11.2006 - ] (0611- ))
46441-04010	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([11.2006 - ] (0611- ))
46451-0C010	Bracket, Cable Support	Parking Brake & Cable ([11.2006 - ] (0611- ))
46452-0C010	Bracket, Cable Support, No.2	Parking Brake & Cable ([11.2006 - ] (0611- ))
46458-0C010	Retainer, Cable	Parking Brake & Cable ([11.2006 - ] (0611- ))
46458-0C020	Retainer, Cable	Parking Brake & Cable ([11.2006 - ] (0611- ))
46503-0C012	Plate Sub-Assy, Parking Brake, Rh	Parking Brake & Cable ([11.2006 - ] (0611- ))
46503-0C030	Plate Sub-Assy, Parking Brake, Rh	Parking Brake & Cable ([11.2006 - ] (0611- ))
46504-0C012	Plate Sub-Assy, Parking Brake, Lh	Parking Brake & Cable ([11.2006 - ] (0611- ))
46504-0C030	Plate Sub-Assy, Parking Brake, Lh	Parking Brake & Cable ([11.2006 - ] (0611- ))
46505-0C010	Block Sub-Assy, Parking Brake Anchor	Parking Brake & Cable ([11.2006 - ] (0611- ))
46530-0C010	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([11.2006 - ] (0611- ))
46557-0C012	Cup, Shoe Hold Down Spring, No.1(For Parking Brake)	Parking Brake & Cable ([11.2006 - ] (0611- ))
46601-0C012	Lever Sub-Assy, Parking Brake Shoe, Rh	Parking Brake & Cable ([11.2006 - ] (0611- ))
46602-0C012	Lever Sub-Assy, Parking Brake Shoe, Lh	Parking Brake & Cable ([11.2006 - ] (0611- ))
46605-06080	Screw Set, Shoe Adjusting, Rh(For Parking Brake)	Parking Brake & Cable ([11.2006 - ] (0611- ))
46606-06080	Screw Set, Shoe Adjusting, Lh(For Parking Brake)	Parking Brake & Cable ([11.2006 - ] (0611- ))
47447-22010	Pin, Shoe Hold Down Spring	Parking Brake & Cable ([11.2006 - ] (0611- ))
90016-DY001	Spring, Compression(For Parking Brake Shoe Hold Down)	Parking Brake & Cable ([11.2006 - ] (0611- ))
90016-DY002	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([11.2006 - ] (0611- ))
90016-DY003	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([11.2006 - ] (0611- ))
90080-17245	New Genuine Part	Parking Brake & Cable ([11.2006 - ] (0611- ))
90105-A0007	BOLT FLANGE	Parking Brake & Cable ([11.2006 - ] (0611- ))
90105-A0101	New Genuine Part	Parking Brake & Cable ([11.2006 - ] (0611- ))
90105-A0104	New Genuine Part	Parking Brake & Cable ([11.2006 - ] (0611- ))
90105-A0179	New Genuine Part	Parking Brake & Cable ([11.2006 - ] (0611- ))
90105-A0194	New Genuine Part	Parking Brake & Cable ([11.2006 - ] (0611- ))
90105-A0195	New Genuine Part	Parking Brake & Cable ([11.2006 - ] (0611- ))
90119-A0183	Bolt (For Transmission Control Cable Bracket)	Parking Brake & Cable ([11.2006 - ] (0611- ))
90178-A0024	New Genuine Part	Parking Brake & Cable ([11.2006 - ] (0611- ))
90178-A0073	Nut, Wire Adjusting, No.2	Parking Brake & Cable ([11.2006 - ] (0611- ))
90179-06074	Nut(For Suspension Control Oil Cooler)	Parking Brake & Cable ([11.2006 - ] (0611- ))
90468-08001	CLIP	Parking Brake & Cable ([11.2006 - ] (0611- ))
90468-14039	CLIP	Parking Brake & Cable ([11.2006 - ] (0611- ))
90506-20060	Spring, Tension(For Intermediate Lever)	Parking Brake & Cable ([11.2006 - ] (0611- ))
94120-40800	Nut(For Clutch Pedal Stopper)	Parking Brake & Cable ([11.2006 - ] (0611- ))
94151-21201	Nut(For Parking Brake Plate To Rear Axle Housing)	Parking Brake & Cable ([11.2006 - ] (0611- ))
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Parking Brake & Cable ([11.2006 - ] (0611- ))

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 203
Collected: 2026-08-04
