| 22030-0S010 |
Body Assy, Throttle W/motor |

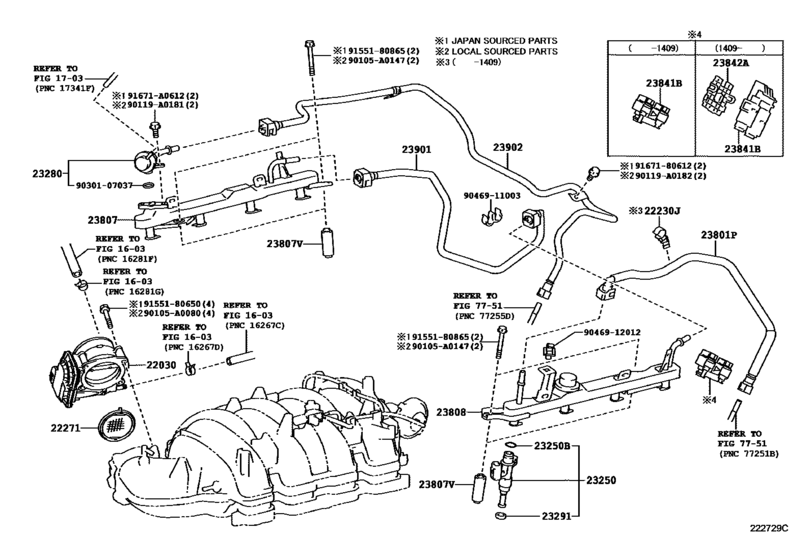

Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 22030-38020 |
Body Assy, Throttle W/motor |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 22271-0S010 |
Gasket, Throttle Body |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23209-09151 |
Injector Assy, Fuel |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23209-39165 |
Injector Assy, Fuel |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23280-38091 |
Regulator Assy, Fuel Pressure |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23291-23010 |
Insulator, Injector Vibration |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23808-38021 |
Pipe Sub-Assy, Fuel Delivery, No.2 |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23814-38131 |
Pipe Sub-Assy, Fuel Delivery |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23841-0S010 |
Clamp, Fuel Pipe, No.1(For Efi) |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23841-0S020 |
Clamp, Fuel Pipe, No.1(For Efi) |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23842-0S010 |
Clamp, Fuel Pipe, No.2(For Efi) |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23891-38020 |
Spacer, No.1(For Delivery Pipe) |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23901-0S010 |
Tube Sub-Assy, Fuel |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23901-0S020 |
Pipe Sub-Assy, Fuel, No.1 |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23901-0S050 |
Pipe Sub-Assy, Fuel, No.1 |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23902-0S010 |
Tube Sub-Assy, Fuel |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23902-0S011 |
Tube Sub-Assy, Fuel |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 23902-38031 |
Tube Sub-Assy, Fuel |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 90105-A0080 |
New Genuine Part |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 90105-A0147 |
New Genuine Part |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 90119-A0181 |
New Genuine Part |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 90119-A0182 |
New Genuine Part |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 90301-07037 |
Ring, O(For Fuel Injector) |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 90301-A0036 |
Ring, O(For Fuel Injector) |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 90464-00856 |
Clamp |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 90469-11003 |
New Genuine Part |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 90469-12012 |
Clamp Or Clip(For Fuel Hose) |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 91551-80650 |
BOLT FLANGE |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 91551-80865 |
Shaft, Clutch Pedal |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 91671-80612 |
Bolt |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
| 91671-A0612 |
BOLT FLANGE |
Fuel Injection System ([09.2011 - ] (1109- )3URFE) |
