USK56

Toyota TUNDRA · 2007 · 3,611 parts · 203 categories

← Back to categories

3,611 items

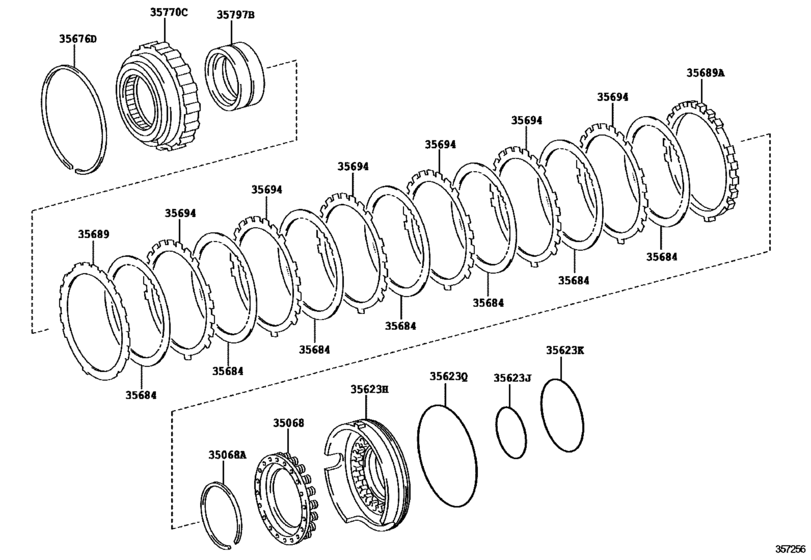

Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#) 18

#	OEM	Part name
35068	35068-0C020	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-A0025	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35623	35623-34010	Piston, 1St & Reverse Brake
35623	90301-67006	Ring, O (For Brake Piston No.2)
35623	90301-99118	Ring, O (For Brake Piston No.2)
35623	90301-99090	Ring, O (For Overdrive Brake Piston)
35676	90521-99130	Ring, Hole Snap (For 2Nd Brake Piston)
35684	35684-0C030	Disc, Brake, No.4
35689	35689-0C110	Flange, Brake, No.4
35689	35689-0C120	Flange, Brake, No.4
35689	35689-0C130	Flange, Brake, No.4
35689	35689-0C140	Flange, Brake, No.4
35689	35689-0C150	Flange, Brake, No.4
35689	35689-0C160	Flange, Brake, No.4
35689	35689-0C100	Flange, Brake, No.4
35694	35694-0C020	Plate, Brake, No.4
35770	35770-0C030	Clutch Assy, 1Way No.3
35797	35797-34030	Race, 1 Way Clutch, Inner

OEM	Part name	Category
35068-0C020	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35623-34010	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35684-0C030	Disc, Brake, No.4	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35689-0C100	Flange, Brake, No.4	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35689-0C110	Flange, Brake, No.4	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35689-0C120	Flange, Brake, No.4	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35689-0C130	Flange, Brake, No.4	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35689-0C140	Flange, Brake, No.4	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35689-0C150	Flange, Brake, No.4	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35689-0C160	Flange, Brake, No.4	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35694-0C020	Plate, Brake, No.4	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35770-0C030	Clutch Assy, 1Way No.3	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
35797-34030	Race, 1 Way Clutch, Inner	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
90301-67006	Ring, O (For Brake Piston No.2)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
90301-99090	Ring, O (For Overdrive Brake Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
90301-99118	Ring, O (For Brake Piston No.2)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
90520-A0025	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
90521-99130	Ring, Hole Snap (For 2Nd Brake Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([01.2007 - ] AB60E (0701- )USK5#)
