USE20

Lexus IS · 2007 · 4,867 parts · 346 categories

4,867 items

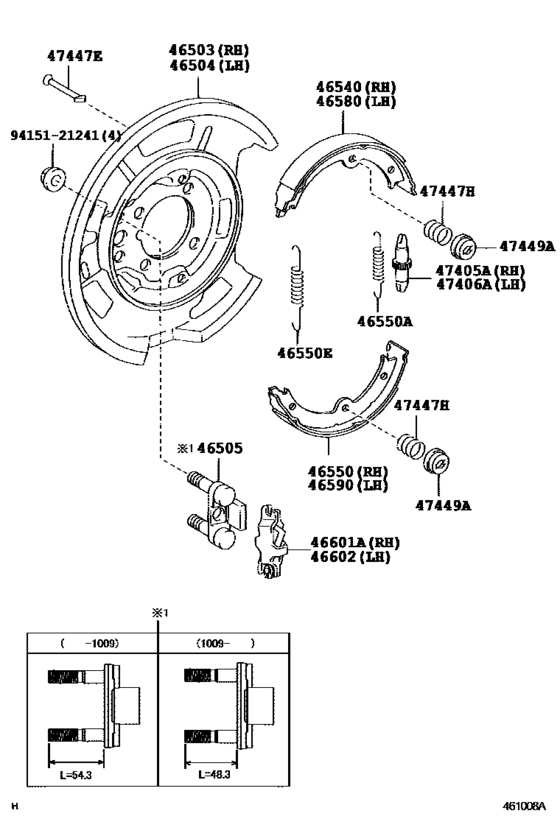

Parking Brake & Cable ([12.2007 - ] (0712- )) 21

#	OEM	Part name
46503	46503-53030	Plate Sub-Assy, Parking Brake, Rh
46504	46504-53030	Plate Sub-Assy, Parking Brake, Lh
46505	46505-30230	Block Sub-Assy, Parking Brake Anchor
46505	46505-50010	Block Sub-Assy, Parking Brake Anchor
46540	46530-30011	Shoe Assy, Parking Brake, Rh Or Center No.1
46540	46530-30020	Shoe Assy, Parking Brake, Rh Or Center No.1
46540	46530-30021	Parking Brake Shoe Assy (1 pc)
46550	90506-14080	Spring, Tension, No.1(For Parking Brake Shoe Return)
46550	90506-23052	Spring, Tension, No.1(For Parking Brake Shoe Return)
46601	46601-30231	Lever Sub-Assy, Parking Brake Shoe, Rh
46601	46601-50050	Lever Sub-Assy, Parking Brake Shoe, Rh
46601	46601-50011	Lever Sub-Assy, Parking Brake Shoe, Rh
46602	46602-30231	Lever Sub-Assy, Parking Brake Shoe, Lh
46602	46602-50050	Lever Sub-Assy, Parking Brake Shoe, Lh
46602	46602-50011	Lever Sub-Assy, Parking Brake Shoe, Lh
47405	47405-32010	Screw Set, Shoe Adjusting, Rh(For Parking Brake)
47406	47406-32010	Screw Set, Shoe Adjusting, Lh(For Parking Brake)
47447	47447-10020	Pin, Shoe Hold Down Spring(For Front Brake)
47447	90501-16118	Spring, Compression(For Parking Brake Shoe Hold Down)
47449	47449-30030	Cup, Brake Shoe Hold Down
9415121241	94151-21241	Nut(For Front Stabilizer Link)

OEM	Part name	Category
46503-53030	Plate Sub-Assy, Parking Brake, Rh	Parking Brake & Cable ([12.2007 - ] (0712- ))
46504-53030	Plate Sub-Assy, Parking Brake, Lh	Parking Brake & Cable ([12.2007 - ] (0712- ))
46505-30230	Block Sub-Assy, Parking Brake Anchor	Parking Brake & Cable ([12.2007 - ] (0712- ))
46505-50010	Block Sub-Assy, Parking Brake Anchor	Parking Brake & Cable ([12.2007 - ] (0712- ))
46530-30011	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([12.2007 - ] (0712- ))
46530-30020	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([12.2007 - ] (0712- ))
46530-30021	Parking Brake Shoe Assy (1 pc)	Parking Brake & Cable ([12.2007 - ] (0712- ))
46601-30231	Lever Sub-Assy, Parking Brake Shoe, Rh	Parking Brake & Cable ([12.2007 - ] (0712- ))
46601-50011	Lever Sub-Assy, Parking Brake Shoe, Rh	Parking Brake & Cable ([12.2007 - ] (0712- ))
46601-50050	Lever Sub-Assy, Parking Brake Shoe, Rh	Parking Brake & Cable ([12.2007 - ] (0712- ))
46602-30231	Lever Sub-Assy, Parking Brake Shoe, Lh	Parking Brake & Cable ([12.2007 - ] (0712- ))
46602-50011	Lever Sub-Assy, Parking Brake Shoe, Lh	Parking Brake & Cable ([12.2007 - ] (0712- ))
46602-50050	Lever Sub-Assy, Parking Brake Shoe, Lh	Parking Brake & Cable ([12.2007 - ] (0712- ))
47405-32010	Screw Set, Shoe Adjusting, Rh(For Parking Brake)	Parking Brake & Cable ([12.2007 - ] (0712- ))
47406-32010	Screw Set, Shoe Adjusting, Lh(For Parking Brake)	Parking Brake & Cable ([12.2007 - ] (0712- ))
47447-10020	Pin, Shoe Hold Down Spring(For Front Brake)	Parking Brake & Cable ([12.2007 - ] (0712- ))
47449-30030	Cup, Brake Shoe Hold Down	Parking Brake & Cable ([12.2007 - ] (0712- ))
90501-16118	Spring, Compression(For Parking Brake Shoe Hold Down)	Parking Brake & Cable ([12.2007 - ] (0712- ))
90506-14080	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([12.2007 - ] (0712- ))
90506-23052	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([12.2007 - ] (0712- ))
94151-21241	Nut(For Front Stabilizer Link)	Parking Brake & Cable ([12.2007 - ] (0712- ))
