USC10

Lexus RC · 2014 · 4,142 parts · 225 categories

← Back to categories

4,142 items

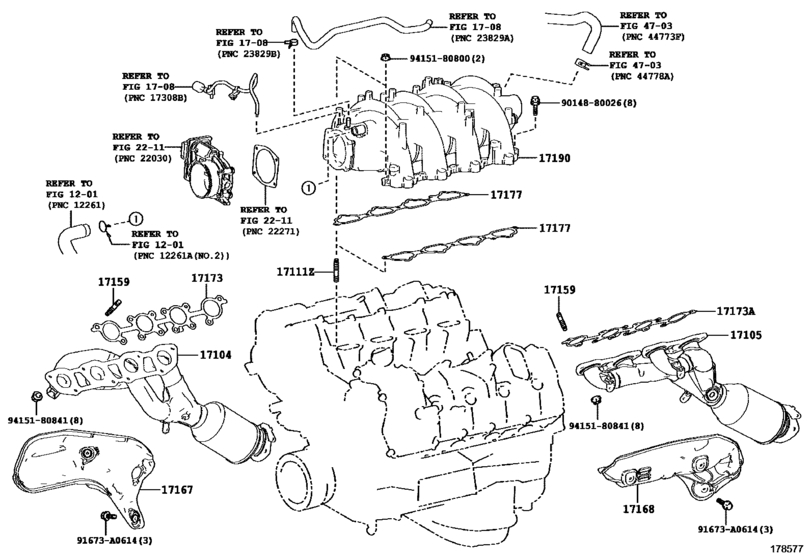

Manifold ([09.2014 - ] (1409- )) 13

#	OEM	Part name
17104	17104-38090	Manifold Sub-Assy, Exhaust, Rh
17105	17105-38090	Manifold Sub-Assy, Exhaust, Lh
17111	90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)
17159	90126-08052	Bolt, Stud(For Oil Pan)
17167	17167-38110	Insulator, Exhaust Manifold Heat, No.1
17168	17168-38110	Insulator, Exhaust Manifold Heat, No.2
17173	17173-38050	Gasket, Exhaust Manifold To Head
17177	17177-38030	Gasket, Intake Manifold To Head, No.1
17190	17190-38010	Tank Assy, Intake Air Surge
91673	91673-A0614	BOLT, FLANGE W-WASER
9014880026	90148-80026	Bolt
9415180800	94151-80800	Nut (For Transmission Control Cable)
9415180841	94151-80841	FLANGE NUT

OEM	Part name	Category
17104-38090	Manifold Sub-Assy, Exhaust, Rh	Manifold ([09.2014 - ] (1409- ))
17105-38090	Manifold Sub-Assy, Exhaust, Lh	Manifold ([09.2014 - ] (1409- ))
17167-38110	Insulator, Exhaust Manifold Heat, No.1	Manifold ([09.2014 - ] (1409- ))
17168-38110	Insulator, Exhaust Manifold Heat, No.2	Manifold ([09.2014 - ] (1409- ))
17173-38050	Gasket, Exhaust Manifold To Head	Manifold ([09.2014 - ] (1409- ))
17177-38030	Gasket, Intake Manifold To Head, No.1	Manifold ([09.2014 - ] (1409- ))
17190-38010	Tank Assy, Intake Air Surge	Manifold ([09.2014 - ] (1409- ))
90126-08026	Bolt, Stud(For Intake Manifold To Cylinder Head)	Manifold ([09.2014 - ] (1409- ))
90126-08052	Bolt, Stud(For Oil Pan)	Manifold ([09.2014 - ] (1409- ))
90148-80026	Bolt	Manifold ([09.2014 - ] (1409- ))
91673-A0614	BOLT, FLANGE W-WASER	Manifold ([09.2014 - ] (1409- ))
94151-80800	Nut (For Transmission Control Cable)	Manifold ([09.2014 - ] (1409- ))
94151-80841	FLANGE NUT	Manifold ([09.2014 - ] (1409- ))
