USC10

Lexus RC · 2014 · 4,142 parts · 225 categories
USC10 ×

← Back to categories

4,142 items

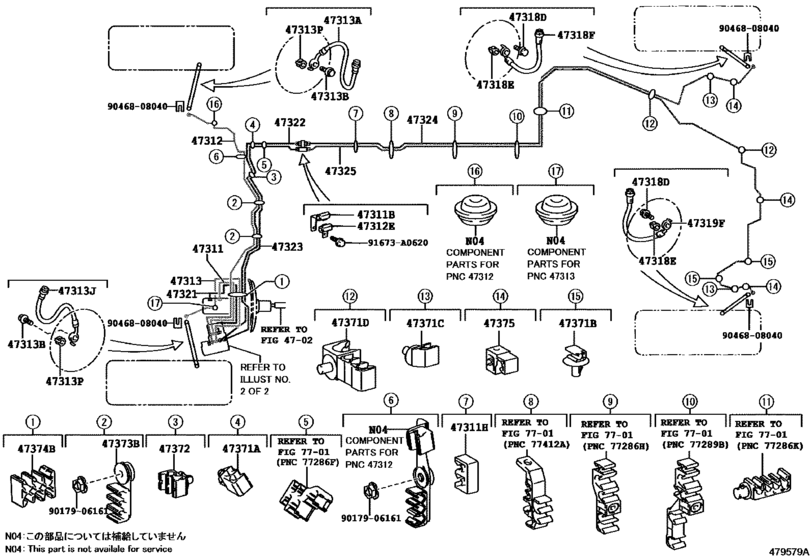

Brake Tube & Clamp ([09.2014 - ] BRAKE TUBE (1409- )LHD) 28
#OEMPart name
47311 47311-24160 Tube, Front Brake, No.1
47311 90412-10297 Way, No.1(For Front Brake Tube)
47311 90480-01621 Grommet(For Front Brake Tube)
47312 47312-24180 Tube, Front Brake, No.2
47312 90412-10292 Way, No.1(For Front Brake Tube)
47313 47313-24200 Tube, Front Brake, No.3
47313 90947-02G57 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47318 90947-02H28 Hose, Flexible(For Rear Rh)
47321 47321-24150 Tube, Rear Brake, No.1
47322 47322-24190 Tube, Rear Brake, No.2
47323 47323-24100 Tube, Rear Brake, No.3
47324 47324-24050 Tube, Rear Brake, No.4
47324 47324-24051 Tube, Rear Brake, No.4
47325 47325-24030 Tube, Rear Brake, No.5
47325 47325-24031 Tube, Rear Brake, No.5
47371 90949-01D13 Clamp, Brake Tube, No.9
47371 90949-01D17 Clamp(For Clutch Master Cylinder Tube)
47371 90949-01D46 Clamp, Brake Tube, No.7
47371 77286-30190 Clamp, Brake Tube, No.8
47372 90949-01D12 Clamp(For Clutch Master Cylinder Tube)
47373 90949-04037 Clamp, Brake Tube, No.6 - BRAKE TUBE, NO.2
47374 90464-00880 Clamp, Brake Tube, No.1
47375 90949-01C82 Clamp(For Clutch Master Cylinder Tube)
91673 91673-A0620 BOLT FLANGE
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046808040 90468-08040 CLIP
