USC10

Lexus RC · 2014 · 4,142 parts · 225 categories

← Back to categories

4,142 items

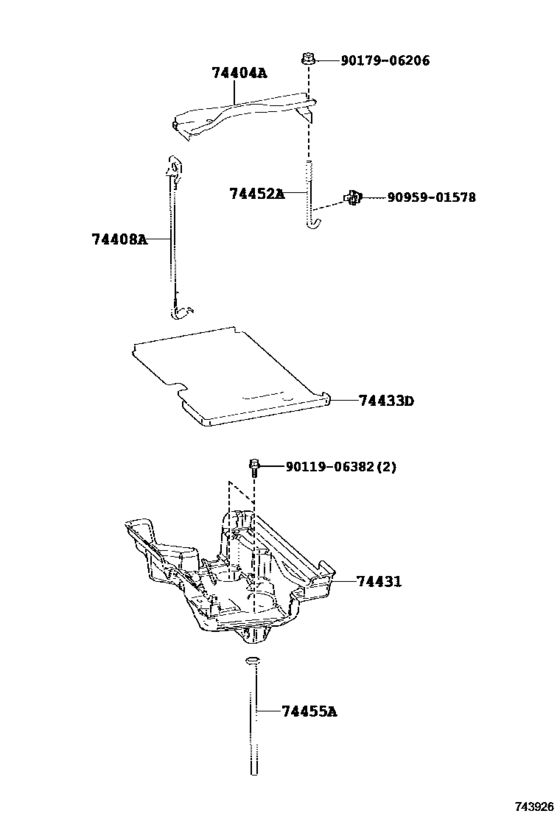

Battery Carrier ([09.2014 - ] (1409- )LHD) 9

#	OEM	Part name
74404	74404-22370	Clamp Sub-Assy, Battery
74408	74408-22031	Bolt Sub-Assy, Battery Clamp, No.2
74431	74431-24060	Tray, Battery
74433	74433-24020	Support, Battery Tray,no.1
74452	74452-30010	Bolt, Battery Clamp, No.2
74455	74455-30020	Hose, Battery Drain
9011906382	90119-06382	Bolt
9017906206	90179-06206	Nut
9095901578	90959-01578	CLAMP

OEM	Part name	Category
74404-22370	Clamp Sub-Assy, Battery	Battery Carrier ([09.2014 - ] (1409- )LHD)
74408-22031	Bolt Sub-Assy, Battery Clamp, No.2	Battery Carrier ([09.2014 - ] (1409- )LHD)
74431-24060	Tray, Battery	Battery Carrier ([09.2014 - ] (1409- )LHD)
74433-24020	Support, Battery Tray,no.1	Battery Carrier ([09.2014 - ] (1409- )LHD)
74452-30010	Bolt, Battery Clamp, No.2	Battery Carrier ([09.2014 - ] (1409- )LHD)
74455-30020	Hose, Battery Drain	Battery Carrier ([09.2014 - ] (1409- )LHD)
90119-06382	Bolt	Battery Carrier ([09.2014 - ] (1409- )LHD)
90179-06206	Nut	Battery Carrier ([09.2014 - ] (1409- )LHD)
90959-01578	CLAMP	Battery Carrier ([09.2014 - ] (1409- )LHD)
