Search › Model › URZ100
URZ100

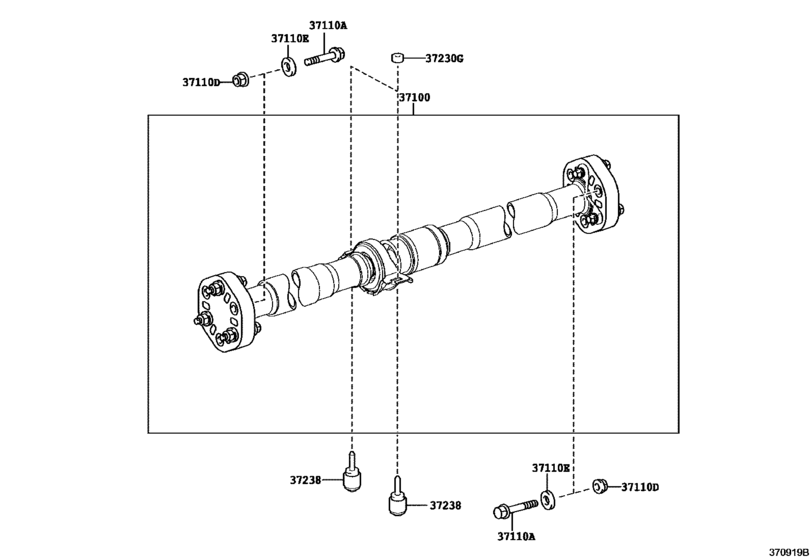

Propeller Shaft & Universal Joint ([03.2017 - ] (1703- )) 7
| # | OEM | Part name |
|---|---|---|
| 37100 | 37100-11020 | Shaft Assy, Propeller W/center Bearing |
| 37110 | 90105-12265 | Bolt, No.1 (For Propeller Shaft & Differential Setting) |
| 37110 | 90179-12128 | Nut, No.1 (For Propeller Shaft & Differential Setting) |
| 37110 | 90560-12059 | Washer, No.1 (For Propeller Shaft & Differential Setting) |
| 37230 | 90201-10017 | Washer, No.2 (For Center Support Bearing) |
| 37230 | 90201-10034 | Washer, No.2 (For Center Support Bearing) |
| 37238 | 37209-30020 | Damper, Center Support Bearing |
| OEM | Part name | Category |
|---|---|---|
| 37100-11020 | Shaft Assy, Propeller W/center Bearing | Propeller Shaft & Universal Joint ([03.2017 - ] (1703- )) |
| 37209-30020 | Damper, Center Support Bearing | Propeller Shaft & Universal Joint ([03.2017 - ] (1703- )) |
| 90105-12265 | Bolt, No.1 (For Propeller Shaft & Differential Setting) | Propeller Shaft & Universal Joint ([03.2017 - ] (1703- )) |
| 90179-12128 | Nut, No.1 (For Propeller Shaft & Differential Setting) | Propeller Shaft & Universal Joint ([03.2017 - ] (1703- )) |
| 90201-10017 | Washer, No.2 (For Center Support Bearing) | Propeller Shaft & Universal Joint ([03.2017 - ] (1703- )) |
| 90201-10034 | Washer, No.2 (For Center Support Bearing) | Propeller Shaft & Universal Joint ([03.2017 - ] (1703- )) |
| 90560-12059 | Washer, No.1 (For Propeller Shaft & Differential Setting) | Propeller Shaft & Universal Joint ([03.2017 - ] (1703- )) |
