Search › Model › URZ100

URZ100

Lexus LC · 2017 · 4,117 parts · 225 categories

4,117 items

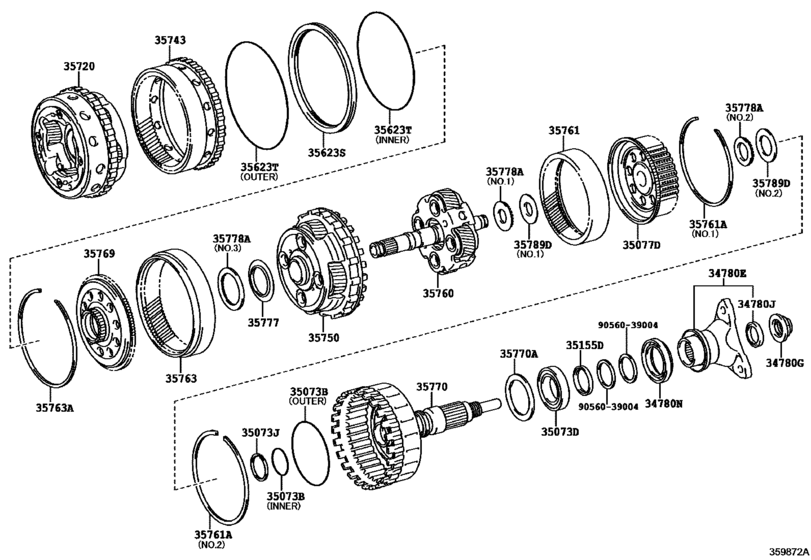

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100) 46

#	OEM	Part name
34780	34780-11010	Yoke Assy, Flange (For Automatic Transmission)
34780	90179-22030	Nut (For Atm Frange Yoke)
34780	90312-33001	Seal, Type V Oil (For Frange Yoke)
34780	90311-50038	Seal, Type T Oil (For Frange Yoke)
35073	90301-43010	Ring, O (For Output Shaft)
35073	90301-99223	Ring, O (For Output Shaft)
35073	90363-42001	Bearing, Radial Ball (For Output Shaft Rear)
35073	90520-38022	Ring, Hole Snap (For Output Shaft)
35077	35077-11010	Flange Sub-Assy, Rr Planetary Ring Gear
35155	35155-50080	Sleeve, Rear Cover
35155	35155-50090	Sleeve, Rear Cover
35155	35155-50100	Sleeve, Rear Cover
35155	35155-50110	Sleeve, Rear Cover
35155	35155-50120	Sleeve, Rear Cover
35155	35155-50130	Sleeve, Rear Cover
35155	35155-50140	Sleeve, Rear Cover
35155	35155-50150	Sleeve, Rear Cover
35155	35155-50160	Sleeve, Rear Cover
35155	35155-50170	Sleeve, Rear Cover
35155	35155-50180	Sleeve, Rear Cover
35155	35155-50190	Sleeve, Rear Cover
35155	35155-50200	Sleeve, Rear Cover
35155	35155-50210	Sleeve, Rear Cover
35155	35155-50230	Sleeve, Rear Cover
35623	35623-11010	Piston,1St & Reverse Brake
35623	90301-99224	Ring, O(For 1St & Reverse Brake Piston)
35623	90301-99225	Ring, O(For 1St & Reverse Brake Piston)
35720	35720-11010	Gear Assy, Front Planetary
35743	35743-11020	Gear, Front Planetary Ring
35750	35750-11020	Gear Assy, Center Planetary
35760	35760-11020	Gear Assy, Rear Planetary
35761	35761-11020	Gear, Rear Planetary Ring
35761	90521-99207	Ring, Hole Snap (For Rear Planetary Ring Gear)
35761	90521-99208	Ring, Hole Snap (For Rear Planetary Ring Gear)
35763	35763-11020	Gear, Center Planetary Ring
35763	90521-99206	Ring, Snap(For Center Planetary Ring Gear)
35769	35769-11010	Flange, Planetary Ring Gear, Ctr
35770	35770-11010	Shaft Assy, Output
35770	90374-58006	Bearing, Thrust (For Output Shaft)
35777	35777-11010	Race, Thrust Bearing, No.7
35778	90374-22011	Bearing, Thrust Needle Roller
35778	90374-30019	Bearing, Thrust Needle Roller
35778	90374-50003	Bearing, Thrust Needle Roller
35789	35789-11120	Race, Thrust Bearing (For Front Planetary Gear Rear)
35789	35789-11130	Race, Thrust Bearing (For Front Planetary Gear Rear)
9056039004	90560-39004	Spacer, No.1 (For Output Shaft Rear Bearing)

OEM	Part name	Category
34780-11010	Yoke Assy, Flange (For Automatic Transmission)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35077-11010	Flange Sub-Assy, Rr Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50080	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50090	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50100	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50110	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50120	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50130	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50140	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50150	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50160	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50170	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50180	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50190	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50200	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50210	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35155-50230	Sleeve, Rear Cover	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35623-11010	Piston,1St & Reverse Brake	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35720-11010	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35743-11020	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35750-11020	Gear Assy, Center Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35760-11020	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35761-11020	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35763-11020	Gear, Center Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35769-11010	Flange, Planetary Ring Gear, Ctr	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35770-11010	Shaft Assy, Output	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35777-11010	Race, Thrust Bearing, No.7	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35789-11120	Race, Thrust Bearing (For Front Planetary Gear Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
35789-11130	Race, Thrust Bearing (For Front Planetary Gear Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90179-22030	Nut (For Atm Frange Yoke)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90301-43010	Ring, O (For Output Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90301-99223	Ring, O (For Output Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90301-99224	Ring, O(For 1St & Reverse Brake Piston)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90301-99225	Ring, O(For 1St & Reverse Brake Piston)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90311-50038	Seal, Type T Oil (For Frange Yoke)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90312-33001	Seal, Type V Oil (For Frange Yoke)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90363-42001	Bearing, Radial Ball (For Output Shaft Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90374-22011	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90374-30019	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90374-50003	Bearing, Thrust Needle Roller	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90374-58006	Bearing, Thrust (For Output Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90520-38022	Ring, Hole Snap (For Output Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90521-99206	Ring, Snap(For Center Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90521-99207	Ring, Hole Snap (For Rear Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90521-99208	Ring, Hole Snap (For Rear Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)
90560-39004	Spacer, No.1 (For Output Shaft Rear Bearing)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.2017 - ] AGA0E (1703- )URZ100)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 225
Collected: 2026-07-23
