URZ100

Lexus LC · 2017 · 4,117 parts · 225 categories
URZ100 ×

← Back to categories

4,117 items

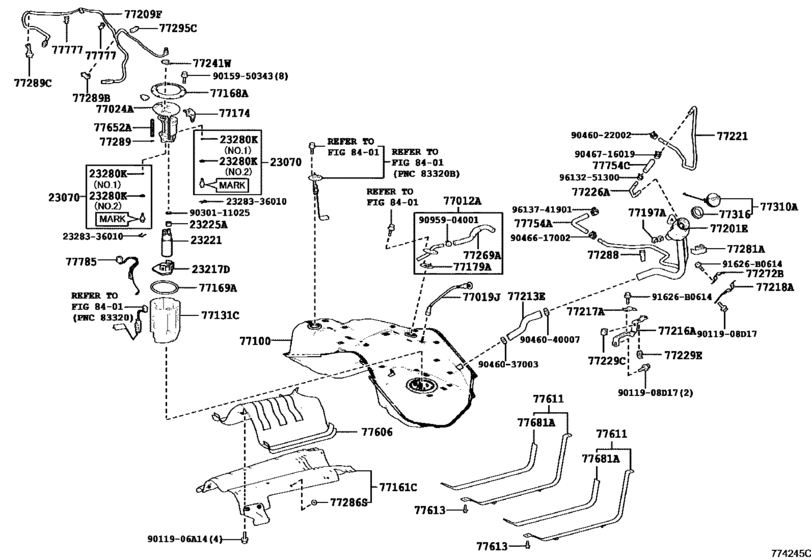

Fuel Tank & Tube ([03.2017 - ] FUEL TANK (1703- )) 64
#OEMPart name
23070 23070-31030 Valve Assy, Fuel Main
23070 23280-38020 Valve Assy, Fuel Main
23217 23217-31080 Filter, Fuel Pump
23221 23221-31130 Pump, Fuel
23225 23225-31010 Spacer, Fuel Pump
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
77012 77012-11040 Tube Sub-Assy, Fuel Tank Breather, No.1
77019 77019-50030 Tube Sub-Assy, Fuel Tank To Canister
77024 77024-11010 Plate Sub-Assy, Fuel Suction
77100 77001-11130 Tank Assy, Fuel
77131 77131-11010 Sub-Tank, Fuel, No.1
77161 77607-11010 Protector, Fuel Tank, Lower
77168 77168-52020 Plate, Fuel Tank Vent Tube Set
77169 77169-52010 Gasket, Fuel Suction Tube Set
77174 77174-48040 Support, Fuel Suction, No.1
77179 77179-20040 Gasket, Fuel Tank Breather Tube
77197 77197-52010 Clamp, Evaporation Vent Tube, No.2
77201 77201-11110 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-11040 Tube Sub-Assy, Fuel Tank Main
77213 77213-11070 Hose, Fuel Tank To Filler Pipe
77216 77216-11020 Support, Fuel Tank Filler Pipe, No.1
77217 77217-11060 Support, Fuel Tank Filler Pipe, No.2
77218 77218-11030 Support, Fuel Tank Filler Pipe, No.3
77221 77227-11020 Tube, Fuel Tank Breather, No.1
77226 77226-11040 Tube, Fuel Tank Breather, No.6
77229 77229-11080 Clamp, Breather Tube
77229 77229-11110 Clamp, Breather Tube
77241 77241-33011 Clip, Tube Joint
77269 77269-11010 Hose, Fuel Tank Breather
77272 77272-11040 Support, Breather Tube, No.1
77281 77229-11120 Clamp, Fuel Filler Pipe
77286 77286-12110 Cushion, Fuel Tank Protector
77288 77229-50080 Clamp, Fuel Filler Pipe
77289 77289-52090 Holder, Fuel Tank Pipe Setting
77289 77289-11030 Clamp, Fuel Tube, No.3
77289 77289-11040 Clamp, Fuel Tube, No.4
77295 77295-35260 Grommet, Fuel Tube
77310 77300-12020 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77606 77606-11020 Protector Sub-Assy, Fuel Tank, No.1
77611 77601-11050 Band, Fuel Tank
77613 90119-10A05 Bolt, Fuel Tank Band Set
77652 77652-22090 Cushion, Fuel Tank, No.2
77681 77681-21020 Seat, Fuel Tank Band, Rh
77754 77754-11060 Hose, Charcoal Canister Outlet, No.2
77754 77754-11050 Hose, Fuel Tank Breather
77777 77778-50020 Bracket, Fuel Tube Clamp
77785 77785-30050 Harness, Fuel Pump
91626 91626-B0614 BOLT, W/WASHER
9011906 90119-06A14 BOLT, W/WASHER
9011908 90119-08D17 BOLT WWASHER
2328336010 23283-36010 Holder, Fuel Pressure Regulator
9015950343 90159-50343 SCREW, W-WASHER
9030111025 90301-11025 Ring, O(For Fuel Pump)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046037003 90460-37003 Clamp, Fuel Hose
9046040007 90460-40007 Clamp (For Fuel Filler Pipe)
9046617002 90466-17002 Clip(For Steering Rack Boot)
9046716019 90467-16019 Clip(For Return No.1)
9095904001 90959-04001 Clip, Fuel Hose
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
9613741901 96137-41901 Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE)
