URZ100

Lexus LC · 2017 · 4,117 parts · 225 categories
URZ100 ×

← Back to categories

4,117 items

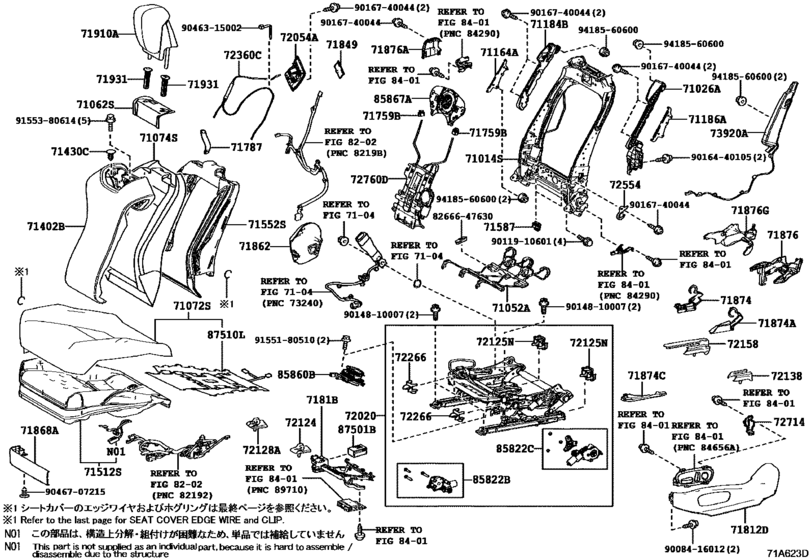

Front Seat & Seat Track ([03.2017 - ] PASSENGER SEAT (1703- )ARL) 123
#OEMPart name
71014 71014-11010 Frame Sub-Assy, Front Seat Back, Lh
71014 71014-11020 Frame Sub-Assy, Front Seat Back, Lh
71026 71026-11010 Support, Front Seat Back, Lh
71026 71026-11020 Support, Front Seat Back, Lh
71052 71051-11010 Spring Sub-Assy, Front Seat Cushion, Rh
71062 71061-11010-C0 Cover Sub-Assy, Front Seat Back, Upper Rh
71062 71061-11010-E1 Cover Sub-Assy, Front Seat Back, Upper Rh
71062 71061-11010-J0 Cover Sub-Assy, Front Seat Back, Upper Rh
71072 71072-11040-C6 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-11040-D6 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-11040-E4 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-11080-A3 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-11080-C7 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-11080-D6 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-11080-E4 Cover, Front Seat Cushion, Lh(For Separate Type)
71074 71074-11010-C7 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-11010-D8 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-11010-E6 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-11050-A7 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-11050-C8 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-11050-D8 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-11050-E6 Cover, Front Seat Back, Lh(For Separate Type)
71164 71163-11010 Bracket, Front Seat Back Support, Lh
71184 71025-11030 Support, Front Seat Back, Lh
71184 71183-11010 Support, Front Seat Back, Lh
71186 71186-11020 Bracket, Front Seat Side Support, Lh
71402 71402-11010-C4 Back Sub-Assy, Front Seat, Lh
71402 71402-11010-D1 Back Sub-Assy, Front Seat, Lh
71402 71402-11010-E1 Back Sub-Assy, Front Seat, Lh
71402 71402-11030-A0 Back Sub-Assy, Front Seat, Lh
71402 71402-11030-C5 Back Sub-Assy, Front Seat, Lh
71402 71402-11030-D1 Back Sub-Assy, Front Seat, Lh
71402 71402-11030-E1 Back Sub-Assy, Front Seat, Lh
71430 67771-26230-C0 Clip
71512 71502-11010 Pad, Front Seat Cushion, Lh (For Separate Type)
71552 71552-11010 Pad, Front Seat Back, Lh(For Separate Type)
71587 71587-47010 Protector, Front Seat Back Edge
71759 71759-52050 Hook, Front Seat Back
71787 71788-11010-A1 Band, Front Seat Back Pocket
71787 71788-11010-C5 Band, Front Seat Back Pocket
71787 71788-11010-D2 Band, Front Seat Back Pocket
71787 71788-11010-E3 Band, Front Seat Back Pocket
71787 71788-11020-C2 Band, Front Seat Back Pocket
71787 71788-11020-D1 Band, Front Seat Back Pocket
71787 71788-11020-E1 Band, Front Seat Back Pocket
71812 71812-11020-C3 Shield, Front Seat Cushion, Lh
71812 71812-11020-E3 Shield, Front Seat Cushion, Lh
71812 71812-11020-J2 Shield, Front Seat Cushion, Lh
71849 71848-11010-A0 Cap, Seat Adjuster Cover, Rh
71849 71848-11010-C1 Cap, Seat Adjuster Cover, Rh
71849 71848-11010-D0 Cap, Seat Adjuster Cover, Rh
71849 71848-11010-E1 Cap, Seat Adjuster Cover, Rh
71849 71848-11010-E2 Cap, Seat Adjuster Cover, Rh
71862 71862-11010-C1 Shield, Front Seat Cushion, Inner Lh
71862 71862-11010-E1 Shield, Front Seat Cushion, Inner Lh
71862 71862-11010-J0 Shield, Front Seat Cushion, Inner Lh
71868 71868-11010-C2 Shield, Front Seat Cushion, Inner No.1 Lh
71868 71868-11010-E3 Shield, Front Seat Cushion, Inner No.1 Lh
71868 71868-11010-J0 Shield, Front Seat Cushion, Inner No.1 Lh
71874 71874-11010-C1 Shield, Front Seat Cushion, Lower Lh
71874 71874-47070 Shield, Front Seat Cushion, Lower Lh
71874 71874-47090 Shield, Front Seat Cushion, Lower
71876 71876-11020-C1 Cover, Reclining Adjuster Inside, Lh
71876 71876-11020-E1 Cover, Reclining Adjuster Inside, Lh
71876 71876-11020-J0 Cover, Reclining Adjuster Inside, Lh
71876 71876-11030 Cover, Reclining Adjuster Inside, Lh
71876 71876-11010-C1 Cover, Reclining Adjuster Inside, Lh (For Lh Seat)
71876 71876-11010-E1 Cover, Reclining Adjuster Inside, Lh (For Lh Seat)
71876 71876-11010-J0 Cover, Reclining Adjuster Inside, Lh (For Lh Seat)
71910 71910-11020-C7 Headrest Assy, Front Seat
71910 71910-11020-C8 Headrest Assy, Front Seat
71910 71910-11020-E3 Headrest Assy, Front Seat
71910 71910-11030-C8 Headrest Assy, Front Seat
71910 71910-11030-C9 Headrest Assy, Front Seat
71910 71910-11030-E3 Headrest Assy, Front Seat
71910 71910-11030-J1 Headrest Assy, Front Seat
71910 71910-11040-C5 Headrest Assy, Front Seat
71910 71910-11040-D4 Headrest Assy, Front Seat
71910 71910-11040-E3 Headrest Assy, Front Seat
71931 71930-47050-C5 Support, Front Seat Headrest
71931 71931-47030-C4 Support, Front Seat Headrest
72020 72020-11030 Adjuster Assy, Front Seat, Lh
72054 72053-11010-A0 Lever Sub-Assy, Reclining Remote Control, Rh
72054 72053-11010-C1 Lever Sub-Assy, Reclining Remote Control, Rh
72054 72053-11010-D0 Lever Sub-Assy, Reclining Remote Control, Rh
72054 72053-11010-E1 Lever Sub-Assy, Reclining Remote Control, Rh
72054 72053-11010-E2 Lever Sub-Assy, Reclining Remote Control, Rh
72124 72124-11010-C1 Cover, Seat Track Bracket, Outer Front Lh
72124 72124-11010-E1 Cover, Seat Track Bracket, Outer Front Lh
72124 72124-11010-J0 Cover, Seat Track Bracket, Outer Front Lh
72125 72125-47020 Cover, Seat Track, Upper Rear No.2
72128 72128-11010-C1 Cover, Seat Track Bracket, Inner Front Lh
72128 72128-11010-E1 Cover, Seat Track Bracket, Inner Front Lh
72128 72128-11010-J0 Cover, Seat Track Bracket, Inner Front Lh
72138 72137-11010-C1 Cover, Seat Track, Outer Rh
72138 72137-11010-E1 Cover, Seat Track, Outer Rh
72138 72137-11010-J0 Cover, Seat Track, Outer Rh
72158 72158-11010-C1 Cover, Seat Track Bracket, Inner Lh
72158 72158-11010-E1 Cover, Seat Track Bracket, Inner Lh
72158 72158-11010-J0 Cover, Seat Track Bracket, Inner Lh
72266 72265-47020 Cover, Seat Track Upper Rail, Rh
72360 72360-11010 Cable Assy, Reclining Adjuster Equalizing Rh
72554 72554-11010 Protector, Reclining Cover, Lh
72714 72714-11010 Bracket, Seat Adjuster Shield Clamp, Lh
72760 72760-11010 Adjuster Assy, Lumbar Support, Lh
73920 73920-11010 Air Bag Assy, Front Seat, Lh (cannot be supplied)
85822 85801-11040 Motor Assy, Power Seat Tilt, Lh
85822 85801-11050 Motor Assy, Power Seat Lifter, Lh
85860 85802-11010 Blower Assy, Seat Cushion Climate Control, Lh
85867 85867-11011 Blower, Seat Back Climate Control, Rh
87501 87501-11010 Control Sub-Assy, Seat Heater, Rh
87510 87510-11020 Heater Assy, Front Seat Cushion, Lh
8266647630 82666-47630 Holder, Connector
9008416012 90084-16012 SCREW
9011910601 90119-10601 BOLT W-WASHER
9014810007 90148-10007 SCREW HEXALOBULAR
9016440105 90164-40105 SCREW BINDING
9016740044 90167-40044 BOLT
9046315002 90463-15002 Clamp (For Accelerator Wire Set)
9046707215 90467-07215 Clip
9155180510 91551-80510 BOLT FLANGE
9155380614 91553-80614 BOLT FLANGE
9418560600 94185-60600 Nut, Wire Adjusting, No.1
