URZ100

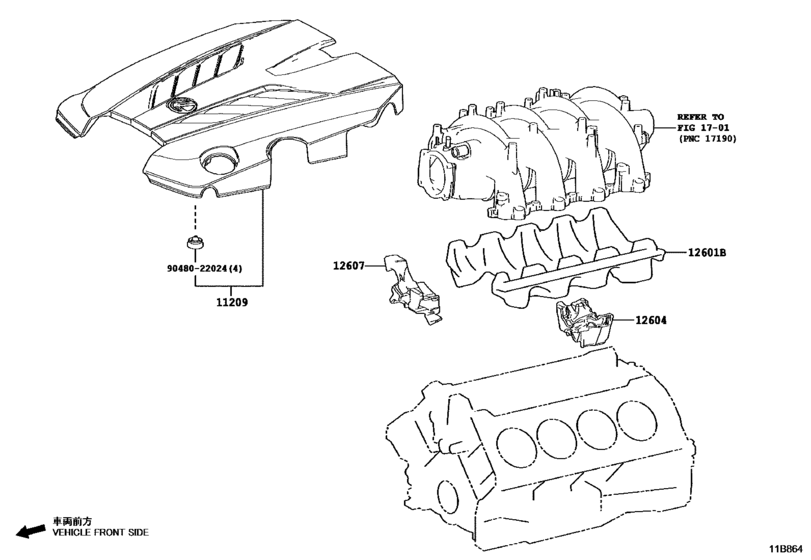

Cylinder Head ([03.2017 - ] ENGINE COVER & BANK COVER (1703- )2URGSE) 6
| # | OEM | Part name |
|---|---|---|
| 11209 | 11209-38170 | Cover Sub-Assy, V-Bank |
| 11209 | 11209-38171 | Engine Cover |
| 12601 | 12601-38040 | Cover Sub-Assy, Engine, No.1 |
| 12604 | 12604-38010 | Cover Sub-Assy, Engine, No.4 |
| 12607 | 12607-38020 | Cover Sub-Assy, Engine, Lh No.2 |
| 9048022024 | 90480-22024 | Grommet |
| OEM | Part name | Category |
|---|---|---|
| 11209-38170 | Cover Sub-Assy, V-Bank | Cylinder Head ([03.2017 - ] ENGINE COVER & BANK COVER (1703- )2URGSE) |
| 11209-38171 | Engine Cover | Cylinder Head ([03.2017 - ] ENGINE COVER & BANK COVER (1703- )2URGSE) |
| 12601-38040 | Cover Sub-Assy, Engine, No.1 | Cylinder Head ([03.2017 - ] ENGINE COVER & BANK COVER (1703- )2URGSE) |
| 12604-38010 | Cover Sub-Assy, Engine, No.4 | Cylinder Head ([03.2017 - ] ENGINE COVER & BANK COVER (1703- )2URGSE) |
| 12607-38020 | Cover Sub-Assy, Engine, Lh No.2 | Cylinder Head ([03.2017 - ] ENGINE COVER & BANK COVER (1703- )2URGSE) |
| 90480-22024 | Grommet | Cylinder Head ([03.2017 - ] ENGINE COVER & BANK COVER (1703- )2URGSE) |
