Search › Model › URZ100
URZ100

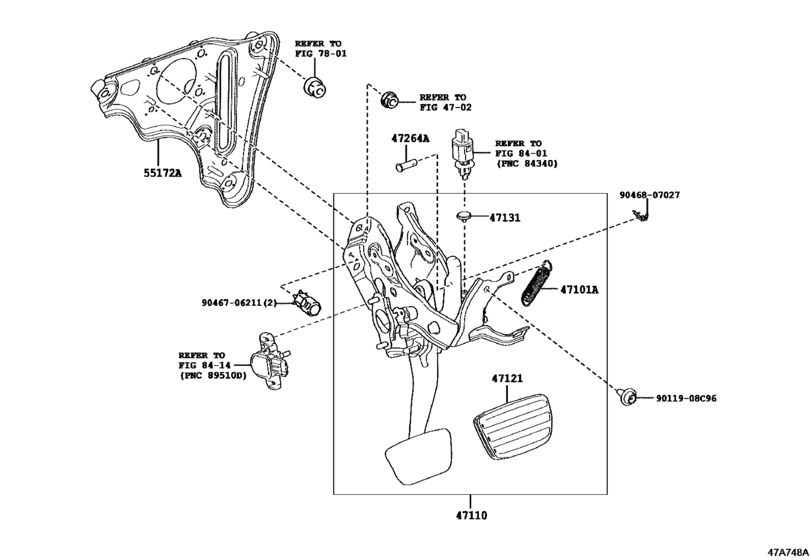

Brake Pedal & Bracket ([03.2017 - ] (1703- )ARL) 9
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-14054 | Spring(For Brake Pedal Return) |
| 47110 | 47110-11020 | Support Assy, Brake Pedal |
| 47121 | 47121-11010 | Pad, Brake Pedal |
| 47131 | 90541-06036 | Cushion, No.1(For Clutch Pedal) |
| 47264 | 90240-08082 | Pin(For Push Rod) |
| 55172 | 55172-11020 | Base, Brake Pedal Support |
| 9011908 | 90119-08C96 | New Genuine Part |
| 9046706211 | 90467-06211 | New Genuine Part |
| 9046807027 | 90468-07027 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 47110-11020 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([03.2017 - ] (1703- )ARL) |
| 47121-11010 | Pad, Brake Pedal | Brake Pedal & Bracket ([03.2017 - ] (1703- )ARL) |
| 55172-11020 | Base, Brake Pedal Support | Brake Pedal & Bracket ([03.2017 - ] (1703- )ARL) |
| 90119-08C96 | New Genuine Part | Brake Pedal & Bracket ([03.2017 - ] (1703- )ARL) |
| 90240-08082 | Pin(For Push Rod) | Brake Pedal & Bracket ([03.2017 - ] (1703- )ARL) |
| 90467-06211 | New Genuine Part | Brake Pedal & Bracket ([03.2017 - ] (1703- )ARL) |
| 90468-07027 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([03.2017 - ] (1703- )ARL) |
| 90507-14054 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([03.2017 - ] (1703- )ARL) |
| 90541-06036 | Cushion, No.1(For Clutch Pedal) | Brake Pedal & Bracket ([03.2017 - ] (1703- )ARL) |
