URZ100

Lexus LC · 2017 · 4,117 parts · 225 categories
URZ100 ×

← Back to categories

4,117 items

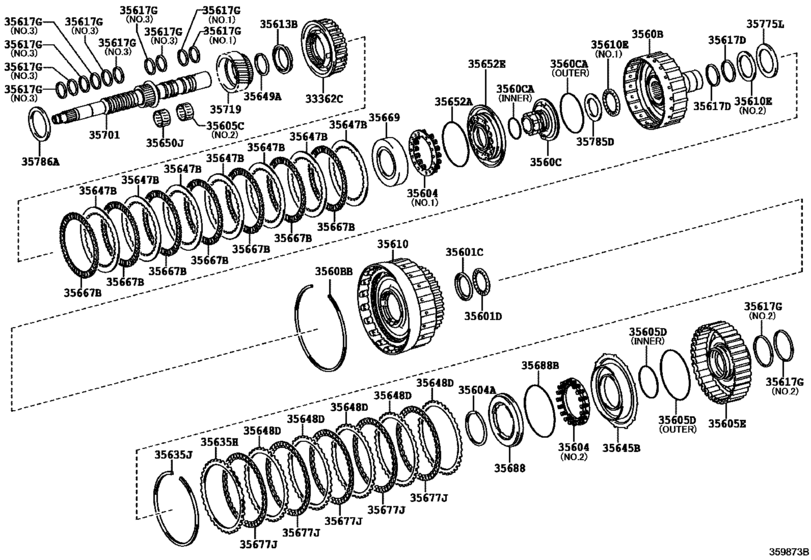

Brake Band & Multiple Disc Clutch (Atm) ([03.2017 - ] AGA0E (1703- )URZ100) 72
#OEMPart name
3560 90521-99201 Ring, Hole Snap(For C-2 Drum)
3560 90302-39001 Ring, D(For C-2 Clutch Reaction Sleeve)
3560 90302-79001 Ring, D(For C-2 Clutch Reaction Sleeve)
33362 33362-11010 Hub, Transmission Clutch, No.2
34638 34638-11010 Piston, C-4 Clutch
35601 35776-11010 Race, Thrust Bearing (For Front Clutch Drum)
35601 90374-43010 Bearing, Thrust Needle Roller (For Front Clutch Drum)
35604 35604-11020 Spring Sub-Assy, Direct Clutch Return
35604 35604-11030 Spring Sub-Assy, Direct Clutch Return
35604 35604-11040 Spring Sub-Assy, Direct Clutch Return
35604 90520-63003 Ring, Shaft Snap (For Direct Clutch Piston)
35605 90364-30015 Bearing, Needle Roller
35605 90364-49001 Bearing, Needle Roller
35605 90301-63007 Ring, O(For Direct Clutch Drum)
35605 90301-99223 Ring, O (For Output Shaft)
35605 35605-11020 Drum Sub-Assy, C-3
35610 35610-11020 Clutch Assy, Front Multiple Disc
35610 90374-47006 Bearing, Thrust Needle Roller (For Front Clutch Disc)
35613 90209-46002 Washer, Clutch Hub Thrust, No.2
35617 35617-11050 Ring, Clutch Drum Oil Seal
35617 35617-11020 Ring, Clutch Drum Oil Seal
35617 35617-11040 Ring, Clutch Drum Oil Seal
35617 35617-11060 Ring, Clutch Drum Oil Seal
35617 35617-60030 Ring, Clutch Drum Oil Seal
35635 35635-11380 Flange, Clutch
35635 35635-11390 Flange, Clutch
35635 35635-11400 Flange, Clutch
35635 35635-11410 Flange, Clutch
35635 35635-11420 Flange, Clutch
35635 35635-11430 Flange, Clutch
35635 35635-11440 Flange, Clutch
35635 35635-11450 Flange, Clutch
35635 35635-11460 Flange, Clutch
35635 90521-99205 Ring, Hole Snap(For C-3 Clutch Flange)
35635 35635-11270 Flange, Forward Clutch
35635 35635-11280 Flange, Forward Clutch
35635 35635-11290 Flange, Forward Clutch
35635 35635-11300 Flange, Forward Clutch
35635 35635-11310 Flange, Forward Clutch
35635 35635-11320 Flange, Forward Clutch
35635 35635-11330 Flange, Forward Clutch
35635 35635-11340 Flange, Forward Clutch
35635 35635-11350 Flange, Forward Clutch
35635 35635-11470 Flange, Forward Clutch
35635 35635-11480 Flange, Forward Clutch
35635 35635-11490 Flange, Forward Clutch
35635 35635-11500 Flange, Forward Clutch
35635 35635-11510 Flange, Forward Clutch
35635 35635-11520 Flange, Forward Clutch
35635 35635-11530 Flange, Forward Clutch
35635 35635-11540 Flange, Forward Clutch
35635 35635-11550 Flange, Forward Clutch
35645 35645-11010 Piston, C-3 Clutch
35647 35647-11020 Plate, Clutch, No.2
35648 35648-11010 Plate, Clutch, No.3
35649 90520-43010 Ring, Hole Snap(For Reverse Clutch Flange)
35652 90302-89001 Ring (For Rear Clutch Outer)
35652 35652-11020 Piston, C-2 Clutch
35666 35666-11010 Balancer, C-4 Clutch
35667 35667-11020 Disk, Clutch, No.2
35669 35669-11020 Balancer, Clutch, No.2
35677 35677-11010 Disc, Clutch, No.3
35688 35699-11010 Balancer, Clutch, No.3
35688 90301-99222 Ring, O (For Clutch Balancer No.3)
35701 35701-11020 Shaft Sub-Assy, Input
35719 35719-11020 Gear, Planetary Sun
35775 35775-11010 Race, Thrust Bearing, No.5
35785 35785-11020 Race, Thrust Bearing, No.4
35786 35786-11010 Race, Thrust Bearing, No.1
35789 35789-50230 Race, Thrust Bearing (For Output Shaft)
35883 35883-11010 Disc, Clutch, No.4
35884 35884-11010 Plate, Clutch, No.4
