URZ100

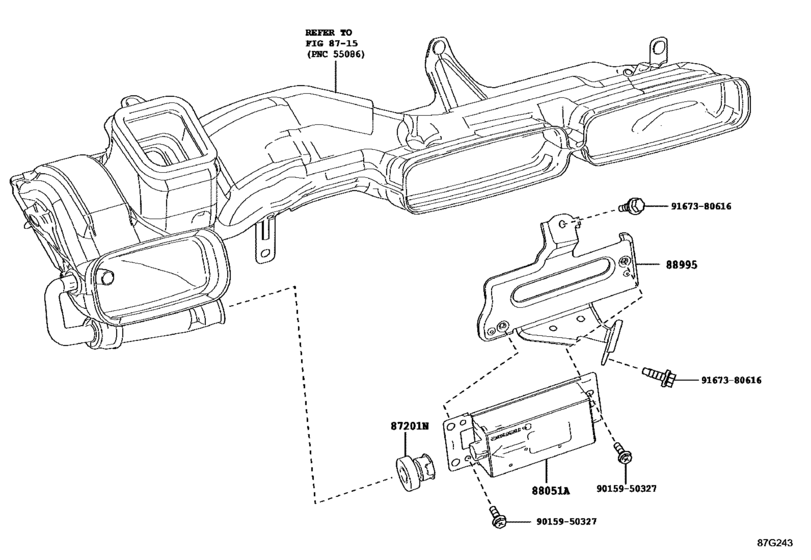

Air Purifier Or Ion Generator ([03.2017 - ] (1703- )LHD) 5
| # | OEM | Part name |
|---|---|---|
| 87201 | 55848-50010 | Duct, Heater To Register, No.6 |
| 88051 | 88051-28060 | Generator Sub-Assy,ion |
| 88995 | 88995-11010 | Bracket,ion Generator, No.1 |
| 9015950327 | 90159-50327 | SCREW WWASHER |
| 9167380616 | 91673-80616 | Bolt, W/washer |
| OEM | Part name | Category |
|---|---|---|
| 55848-50010 | Duct, Heater To Register, No.6 | Air Purifier Or Ion Generator ([03.2017 - ] (1703- )LHD) |
| 88051-28060 | Generator Sub-Assy,ion | Air Purifier Or Ion Generator ([03.2017 - ] (1703- )LHD) |
| 88995-11010 | Bracket,ion Generator, No.1 | Air Purifier Or Ion Generator ([03.2017 - ] (1703- )LHD) |
| 90159-50327 | SCREW WWASHER | Air Purifier Or Ion Generator ([03.2017 - ] (1703- )LHD) |
| 91673-80616 | Bolt, W/washer | Air Purifier Or Ion Generator ([03.2017 - ] (1703- )LHD) |
