Search › Model › URS206
URS206

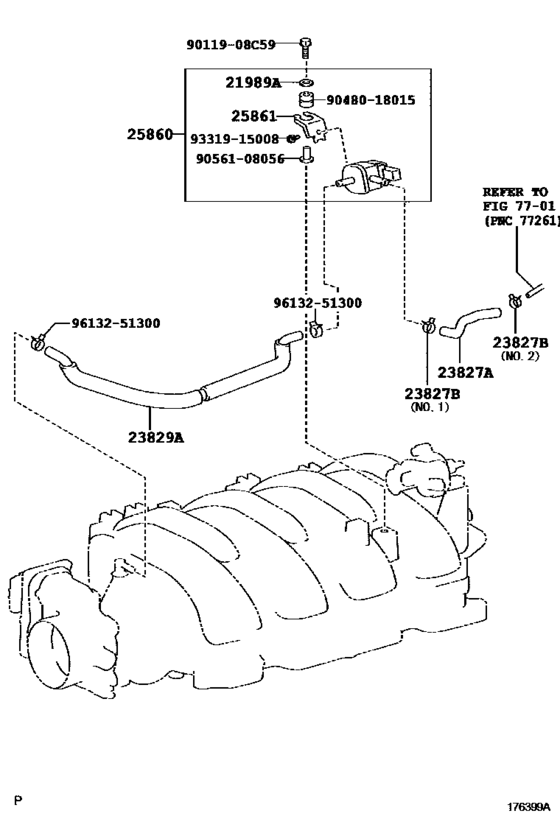

Vacuum Piping ([03.2009 - ] (0903- )1URFSE) 12
| # | OEM | Part name |
|---|---|---|
| 21989 | 21989-38010 | Insulator, Plate |
| 23827 | 23827-38040 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 90467-15022 | Clip Or Clamp(For Ventilation Hose) |
| 23827 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 23829 | 23829-38030 | Hose, Fuel Vapor Feed |
| 23829 | 23829-38032 | HOSE FUEL VAPOR |
| 25860 | 25860-38030 | Valve Assy, Vacuum Switching, No.1 |
| 25861 | 25861-38010 | Bracket, Vacuum Switching Valve |
| 9011908 | 90119-08C59 | New Genuine Part |
| 9048018015 | 90480-18015 | New Genuine Part |
| 9056108056 | 90561-08056 | New Genuine Part |
| 9331915008 | 93319-15008 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 21989-38010 | Insulator, Plate | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 23827-38040 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 23829-38030 | Hose, Fuel Vapor Feed | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 23829-38032 | HOSE FUEL VAPOR | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 25860-38030 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 25861-38010 | Bracket, Vacuum Switching Valve | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 90119-08C59 | New Genuine Part | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 90467-15022 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 90480-18015 | New Genuine Part | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 90561-08056 | New Genuine Part | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 93319-15008 | SCREW | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([03.2009 - ] (0903- )1URFSE) |
