Search › Model › URS206

URS206

Toyota CROWN-MAJESTA · 2009 · 4,711 parts · 198 categories

4,711 items

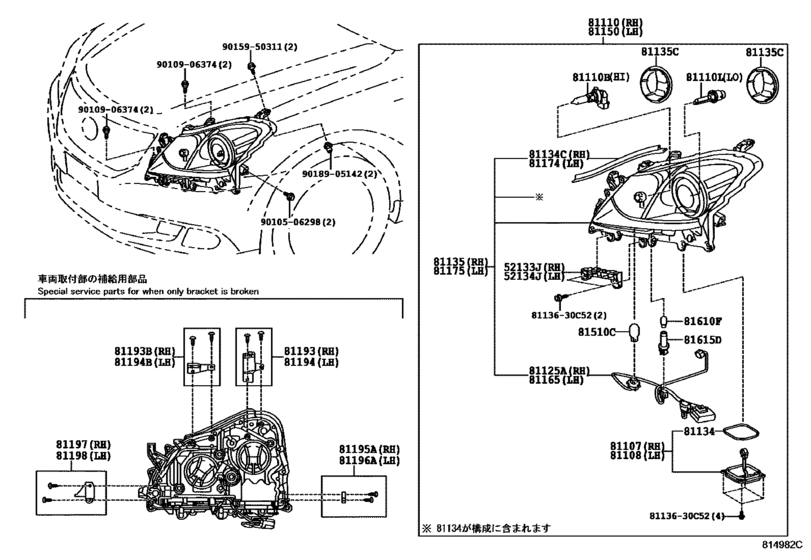

Headlamp ([03.2009 - ] (0903- )) 42

#	OEM	Part name
52133	52133-30140	Reinforcement, Front Bumper Bar, Rh
52134	52134-30120	Reinforcement, Front Bumper Bar, Lh
81107	81107-22A10	Computer Sub-Assy, Headlamp Light Control
81107	81107-33761	Computer Sub-Assy, Headlamp Light Control
81110	81110-30A90	Headlamp Assy, Rh
81110	81110-30E10	Headlamp Assy, Rh
81110	90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)
81110	90981-13081	Bulb(For Headlamp, No.1)
81110	90981-20026	Bulb, Discharge Headlamp
81110	90981-20027	Bulb, Discharge Headlamp (45V 35W), D4S
81125	81125-30A90	Cord, Headlamp, Rh
81125	81125-30E10	Cord, Headlamp, Rh
81134	90075-68007	Gasket, Headlamp
81134	81134-30A90	Gasket, Headlamp Body, Rh
81135	81145-30A90	Unit Assy, Headlamp, Rh
81135	81145-30E10	Unit Assy, Headlamp, Rh
81135	81135-30A60	Cover, Headlamp Back, No.1
81150	81150-30B00	Headlamp Assy, Lh
81150	81150-30B10	Headlamp Assy, Lh
81165	81165-30B00	Cord, Headlamp, Lh
81165	81165-30B10	Cord, Headlamp, Lh
81174	81174-30B00	Gasket, Headlamp Body, Lh
81175	81185-30B00	Unit Assy, Headlamp, Lh
81175	81185-30B10	Unit Assy, Headlamp, Lh
81193	81193-30070	Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH
81193	81193-30080	Retainer, Headlamp Protector, Upper Rh No.2 - HEADLAMP PROTECTOR, UPR RH NO.2
81194	81194-30060	Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH
81194	81194-30070	Retainer, Headlamp Protector, Upper Lh No.2 - HEADLAMP PROTECTOR, UPR LH NO.2
81195	81195-30040	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH
81196	81196-30040	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH
81197	81197-30040	Bracket, Headlamp, Lower Rh - HEADLAMP, LWR RH
81198	81198-30040	Bracket, Headlamp, Lwr Lh
81510	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81610	99132-12050	Bulb (12V 5W)
81610	90080-81053	Bulb(For Clearance Lamp)
81615	81138-22680	Socket, Headlamp
8113630	81136-30C52	Protector, Headlamp, No.1 Rh
9010506298	90105-06298	BOLT FLANGE
9010906374	90109-06374	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
52133-30140	Reinforcement, Front Bumper Bar, Rh	Headlamp ([03.2009 - ] (0903- ))
52134-30120	Reinforcement, Front Bumper Bar, Lh	Headlamp ([03.2009 - ] (0903- ))
81107-22A10	Computer Sub-Assy, Headlamp Light Control	Headlamp ([03.2009 - ] (0903- ))
81107-33761	Computer Sub-Assy, Headlamp Light Control	Headlamp ([03.2009 - ] (0903- ))
81110-30A90	Headlamp Assy, Rh	Headlamp ([03.2009 - ] (0903- ))
81110-30E10	Headlamp Assy, Rh	Headlamp ([03.2009 - ] (0903- ))
81125-30A90	Cord, Headlamp, Rh	Headlamp ([03.2009 - ] (0903- ))
81125-30E10	Cord, Headlamp, Rh	Headlamp ([03.2009 - ] (0903- ))
81134-30A90	Gasket, Headlamp Body, Rh	Headlamp ([03.2009 - ] (0903- ))
81135-30A60	Cover, Headlamp Back, No.1	Headlamp ([03.2009 - ] (0903- ))
81136-30C52	Protector, Headlamp, No.1 Rh	Headlamp ([03.2009 - ] (0903- ))
81138-22680	Socket, Headlamp	Headlamp ([03.2009 - ] (0903- ))
81145-30A90	Unit Assy, Headlamp, Rh	Headlamp ([03.2009 - ] (0903- ))
81145-30E10	Unit Assy, Headlamp, Rh	Headlamp ([03.2009 - ] (0903- ))
81150-30B00	Headlamp Assy, Lh	Headlamp ([03.2009 - ] (0903- ))
81150-30B10	Headlamp Assy, Lh	Headlamp ([03.2009 - ] (0903- ))
81165-30B00	Cord, Headlamp, Lh	Headlamp ([03.2009 - ] (0903- ))
81165-30B10	Cord, Headlamp, Lh	Headlamp ([03.2009 - ] (0903- ))
81174-30B00	Gasket, Headlamp Body, Lh	Headlamp ([03.2009 - ] (0903- ))
81185-30B00	Unit Assy, Headlamp, Lh	Headlamp ([03.2009 - ] (0903- ))
81185-30B10	Unit Assy, Headlamp, Lh	Headlamp ([03.2009 - ] (0903- ))
81193-30070	Retainer, Headlamp Protector, Upper Rh - HEADLAMP PROTECTOR, UPR RH	Headlamp ([03.2009 - ] (0903- ))
81193-30080	Retainer, Headlamp Protector, Upper Rh No.2 - HEADLAMP PROTECTOR, UPR RH NO.2	Headlamp ([03.2009 - ] (0903- ))
81194-30060	Retainer, Headlamp Protector, Upper Lh - HEADLAMP PROTECTOR, UPR LH	Headlamp ([03.2009 - ] (0903- ))
81194-30070	Retainer, Headlamp Protector, Upper Lh No.2 - HEADLAMP PROTECTOR, UPR LH NO.2	Headlamp ([03.2009 - ] (0903- ))
81195-30040	Retainer, Headlamp Protector, Lower Rh - HEADLAMP PROTECTOR, LWR RH	Headlamp ([03.2009 - ] (0903- ))
81196-30040	Retainer, Headlamp Protector, Lower Lh - HEADLAMP PROTECTOR, LWR LH	Headlamp ([03.2009 - ] (0903- ))
81197-30040	Bracket, Headlamp, Lower Rh - HEADLAMP, LWR RH	Headlamp ([03.2009 - ] (0903- ))
81198-30040	Bracket, Headlamp, Lwr Lh	Headlamp ([03.2009 - ] (0903- ))
90075-68007	Gasket, Headlamp	Headlamp ([03.2009 - ] (0903- ))
90080-81053	Bulb(For Clearance Lamp)	Headlamp ([03.2009 - ] (0903- ))
90105-06298	BOLT FLANGE	Headlamp ([03.2009 - ] (0903- ))
90109-06374	BOLT	Headlamp ([03.2009 - ] (0903- ))
90159-50311	SCREW	Headlamp ([03.2009 - ] (0903- ))
90159-A0034	SCREW WWASHER	Headlamp ([03.2009 - ] (0903- ))
90189-05142	GROMMET, SCREW	Headlamp ([03.2009 - ] (0903- ))
90981-13046	Bulb(For Headlamp, No.1) (12V, 65W)	Headlamp ([03.2009 - ] (0903- ))
90981-13081	Bulb(For Headlamp, No.1)	Headlamp ([03.2009 - ] (0903- ))
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Headlamp ([03.2009 - ] (0903- ))
90981-20026	Bulb, Discharge Headlamp	Headlamp ([03.2009 - ] (0903- ))
90981-20027	Bulb, Discharge Headlamp (45V 35W), D4S	Headlamp ([03.2009 - ] (0903- ))
99132-12050	Bulb (12V 5W)	Headlamp ([03.2009 - ] (0903- ))
