Search › Model › URS206
URS206

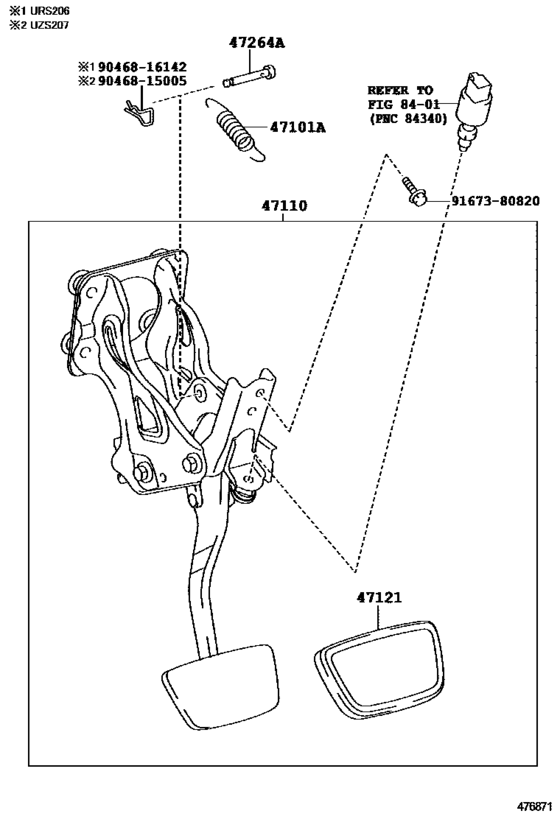

Brake Pedal & Bracket ([03.2009 - ] (0903- )) 8
| # | OEM | Part name |
|---|---|---|
| 47101 | 90507-12045 | Spring(For Brake Pedal Return) |
| 47110 | 47110-30461 | Support Assy, Brake Pedal |
| 47110 | 47110-30462 | Support Assy, Brake Pedal |
| 47121 | 47121-50020 | Pad, Brake Pedal |
| 47264 | 90249-10199 | Pin(For Push Rod) |
| 9046815005 | 90468-15005 | CLIP |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) |
| 9167380820 | 91673-80820 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 47110-30461 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([03.2009 - ] (0903- )) |
| 47110-30462 | Support Assy, Brake Pedal | Brake Pedal & Bracket ([03.2009 - ] (0903- )) |
| 47121-50020 | Pad, Brake Pedal | Brake Pedal & Bracket ([03.2009 - ] (0903- )) |
| 90249-10199 | Pin(For Push Rod) | Brake Pedal & Bracket ([03.2009 - ] (0903- )) |
| 90468-15005 | CLIP | Brake Pedal & Bracket ([03.2009 - ] (0903- )) |
| 90468-16142 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([03.2009 - ] (0903- )) |
| 90507-12045 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([03.2009 - ] (0903- )) |
| 91673-80820 | Bolt (For Transmission Control Cable Bracket) | Brake Pedal & Bracket ([03.2009 - ] (0903- )) |
