Search › Model › URJ200

URJ200

Toyota LAND-CRUISER · 2007 · 6,162 parts · 264 categories

6,162 items

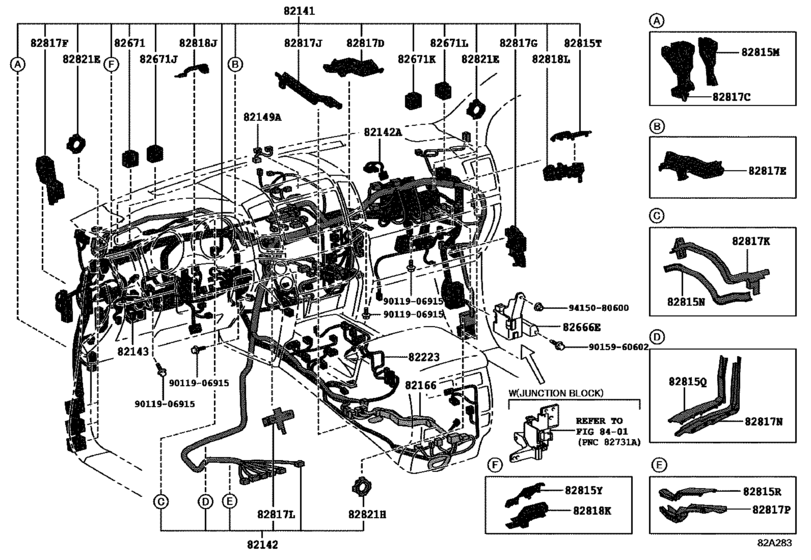

Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD) 59

#	OEM	Part name
82141	82141-6AR90	Wire, Instrument Panel
82141	82141-6AR91	Wire, Instrument Panel
82141	82141-6AR92	Wire, Instrument Panel
82141	82141-6AS60	Wire, Instrument Panel
82141	82141-6AS61	Wire, Instrument Panel
82141	82141-6AS62	Wire, Instrument Panel
82141	82141-6BL50	Wire, Instrument Panel
82141	82141-6BL51	Wire, Instrument Panel
82141	82141-6BL52	Wire, Instrument Panel
82141	82141-6BL90	Wire, Instrument Panel
82141	82141-6BL91	Wire, Instrument Panel
82141	82141-6BL92	Wire, Instrument Panel
82142	82142-60X80	Wire, Instrument Panel, No.2
82142	82142-60X81	Wire, Instrument Panel, No.2
82142	82142-60Y00	Wire, Instrument Panel, No.2
82142	82142-60Y01	Wire, Instrument Panel, No.2
82142	82142-60Y80	Wire, Instrument Panel, No.2
82142	82142-60Y81	Wire, Instrument Panel, No.2
82142	82142-6A780	Wire, Instrument Panel, No.2
82142	82142-6A781	Wire, Instrument Panel, No.2
82142	82142-6A890	Wire, Instrument Panel, No.2
82142	82142-6A891	Wire, Instrument Panel, No.2
82142	82142-33120	Wire, Instrument Panel, No.2
82143	82143-60D50	Wire, Instrument Panel, No.3
82143	82143-60D90	Wire, Instrument Panel, No.3
82166	82166-60C50	Wire, Console Box
82166	82166-60C60	Wire, Console Box
82223	82223-60D30	Wire, Switch
82223	82223-60D40	Wire, Switch
82223	82223-60D90	Wire, Switch
82223	82223-60E00	Wire, Switch
82666	82666-60F30	Holder, Connector No.6
82671	82671-60030	Block, Junction
82671	82671-60040	Block, Junction, No.2
82671	82671-60050	Block, Junction, No.3
82671	82671-60060	Block, Junction, No.4
82815	82815-60100	Cover, Wiring Harness Protector, No.10
82815	82815-60140	Cover, Wiring Harness Protector, No.11
82815	82815-60110	Cover, Wiring Harness Protector, No.13
82815	82815-60120	Cover, Wiring Harness Protector, No.14
82815	82815-60280	Cover, Wiring Harness Protector, No.16
82815	82815-60700	Cover, Wiring Harness Protector, No.4
82817	82817-60A90	Protector, Wiring Harness, No.4
82817	82817-60S50	Protector, Wiring Harness, No.5
82817	82817-60S40	Protector, Wiring Harness, No.6
82817	82817-60S80	Protector, Wiring Harness, No.7
82817	82817-60B50	Protector, Wiring Harness, No.8
82817	82817-60A80	Protector, Wiring Harness, No.9
82817	82817-60B90	Protector, Wiring Harness, No.10
82817	82817-60G10	Protector, Wiring Harness, No.11
82817	82817-60B60	Protector, Wiring Harness, No.13
82817	82817-60B70	Protector, Wiring Harness, No.14
82818	82817-60T30	Protector, Wiring Harness, No.10
82818	82817-60V20	Protector, Wiring Harness, No.11
82818	82817-60T80	Protector, Wiring Harness, No.12
82821	82821-60180	Cover, Connector
9011906915	90119-06915	BOLT W-WASHER
9015960602	90159-60602	SCREW
9415080600	94150-80600	NUT FLANGE

OEM	Part name	Category
82141-6AR90	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6AR91	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6AR92	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6AS60	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6AS61	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6AS62	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6BL50	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6BL51	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6BL52	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6BL90	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6BL91	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82141-6BL92	Wire, Instrument Panel	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-33120	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-60X80	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-60X81	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-60Y00	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-60Y01	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-60Y80	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-60Y81	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-6A780	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-6A781	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-6A890	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82142-6A891	Wire, Instrument Panel, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82143-60D50	Wire, Instrument Panel, No.3	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82143-60D90	Wire, Instrument Panel, No.3	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82166-60C50	Wire, Console Box	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82166-60C60	Wire, Console Box	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82223-60D30	Wire, Switch	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82223-60D40	Wire, Switch	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82223-60D90	Wire, Switch	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82223-60E00	Wire, Switch	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82666-60F30	Holder, Connector No.6	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82671-60030	Block, Junction	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82671-60040	Block, Junction, No.2	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82671-60050	Block, Junction, No.3	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82671-60060	Block, Junction, No.4	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82815-60100	Cover, Wiring Harness Protector, No.10	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82815-60110	Cover, Wiring Harness Protector, No.13	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82815-60120	Cover, Wiring Harness Protector, No.14	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82815-60140	Cover, Wiring Harness Protector, No.11	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82815-60280	Cover, Wiring Harness Protector, No.16	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82815-60700	Cover, Wiring Harness Protector, No.4	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60A80	Protector, Wiring Harness, No.9	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60A90	Protector, Wiring Harness, No.4	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60B50	Protector, Wiring Harness, No.8	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60B60	Protector, Wiring Harness, No.13	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60B70	Protector, Wiring Harness, No.14	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60B90	Protector, Wiring Harness, No.10	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60G10	Protector, Wiring Harness, No.11	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60S40	Protector, Wiring Harness, No.6	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60S50	Protector, Wiring Harness, No.5	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60S80	Protector, Wiring Harness, No.7	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60T30	Protector, Wiring Harness, No.10	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60T80	Protector, Wiring Harness, No.12	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82817-60V20	Protector, Wiring Harness, No.11	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
82821-60180	Cover, Connector	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
90119-06915	BOLT W-WASHER	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
90159-60602	SCREW	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)
94150-80600	NUT FLANGE	Wiring & Clamp ([08.2015 - ] INSTRUMENT PANEL & CONSOLE BOX (1508- )LHD)

Source: Public OEM parts-catalog data
Variants: 1 / 5
Category: 264
Collected: 2026-08-02
