Search › Model › URJ200

URJ200

Toyota LAND-CRUISER · 2007 · 6,162 parts · 264 categories

6,162 items

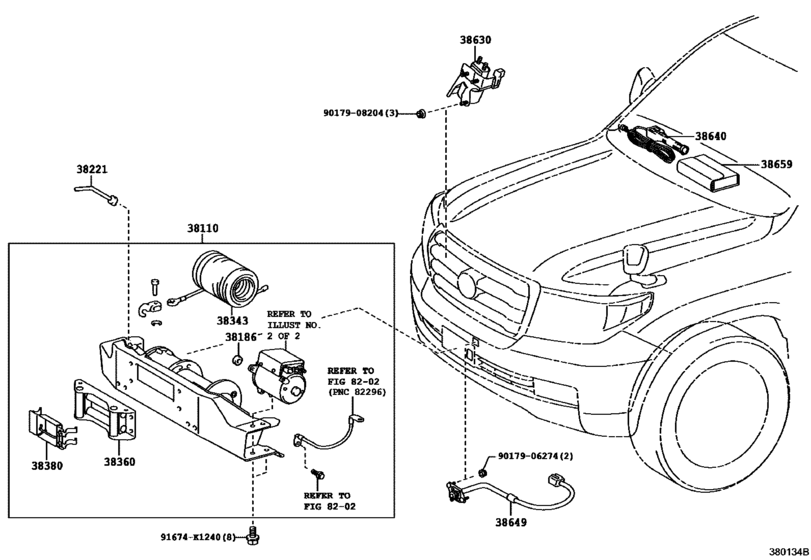

Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C) 47

#	OEM	Part name
28199	28199-15090	Cover, Starter End Frame
38110	38110-60291	Winch Assy
38186	38186-60170	Seal, Gear Case Cover Oil
38221	38221-60240	Lever, Clutch Hub Shift
38343	38343-60171	Winch Wire
38360	38360-60083	Bracket Assy, Winch Roller
38380	38380-60022	Holder Assy, Winch Hook
38600	38600-60101	Motor Assy, W/magnet Switch, Winch
38601	38601-60050	Yoke Sub-Assy, Winch Motor
38603	38603-60050	Armature Sub-Assy, Winch Motor
38603	90099-10130	Bearing, No.1 (For Winch Motor Armature)
38603	90099-10201	Bearing, No.2 (For Winch Motor Armature)
38604	38604-60051	Holder Assy, Winch Motor Brush
38610	38610-60081	Motor Assy, Winch
38611	38611-60011	Switch, Magnet, No.2 (For Winch Motor)
38612	38612-60060	Frame, Winch Motor End
38613	38613-60011	Brush, Winch Motor
38613	28143-46012	Spring, Winch Motor Brush
38614	90099-14023	Ring, O(For Starter Cover)
38618	38618-60080	Frame, Winch Motor Commutator End
38621	38621-60050	Cover, Magnet Switch Winch
38623	38623-60010	Stopper, Wimch Motor
38625	38625-60010	Bolt, Stud Winch Motor
38627	38627-60011	Bushing, Stepped Male Winch Motor
38629	38629-60050	Wire, Winch Motor
38630	38630-60191	Switch Assy, Magnet, No.1
38639	38639-60050	Wire (For Winch Motor)
38640	38640-60030	Switch Assy, Winch Control
38649	38649-60071	Wire, Winch Control
38659	38659-60010	Cover, Winch Control Switch
91674	91674-K1240	BOLT FLANGE
9009300808	90093-00808	New Genuine Part
9009300811	90093-00811	New Genuine Part
9009400606	90094-00606	New Genuine Part
9009900222	90099-00222	New Genuine Part
9009904584	90099-04584	New Genuine Part
9017906274	90179-06274	Nut
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9331116014	93311-16014	Screw
9331914008	93319-14008	SCREW
9338115010	93381-15010	SCREW
9338516012	93385-16012	New Genuine Part
9338516016	93385-16016	New Genuine Part
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9451100800	94511-00800	WASHERSPRING
9461240601	94612-40601	Washer

OEM	Part name	Category
28143-46012	Spring, Winch Motor Brush	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
28199-15090	Cover, Starter End Frame	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38110-60291	Winch Assy	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38186-60170	Seal, Gear Case Cover Oil	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38221-60240	Lever, Clutch Hub Shift	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38343-60171	Winch Wire	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38360-60083	Bracket Assy, Winch Roller	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38380-60022	Holder Assy, Winch Hook	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38600-60101	Motor Assy, W/magnet Switch, Winch	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38601-60050	Yoke Sub-Assy, Winch Motor	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38603-60050	Armature Sub-Assy, Winch Motor	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38604-60051	Holder Assy, Winch Motor Brush	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38610-60081	Motor Assy, Winch	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38611-60011	Switch, Magnet, No.2 (For Winch Motor)	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38612-60060	Frame, Winch Motor End	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38613-60011	Brush, Winch Motor	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38618-60080	Frame, Winch Motor Commutator End	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38621-60050	Cover, Magnet Switch Winch	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38623-60010	Stopper, Wimch Motor	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38625-60010	Bolt, Stud Winch Motor	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38627-60011	Bushing, Stepped Male Winch Motor	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38629-60050	Wire, Winch Motor	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38630-60191	Switch Assy, Magnet, No.1	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38639-60050	Wire (For Winch Motor)	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38640-60030	Switch Assy, Winch Control	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38649-60071	Wire, Winch Control	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
38659-60010	Cover, Winch Control Switch	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90080-18070	NUT, WWASHER	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90093-00808	New Genuine Part	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90093-00811	New Genuine Part	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90094-00606	New Genuine Part	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90099-00222	New Genuine Part	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90099-04584	New Genuine Part	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90099-10130	Bearing, No.1 (For Winch Motor Armature)	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90099-10201	Bearing, No.2 (For Winch Motor Armature)	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90099-14023	Ring, O(For Starter Cover)	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90179-06274	Nut	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
90179-08204	Nut	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
91674-K1240	BOLT FLANGE	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
93311-16014	Screw	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
93319-14008	SCREW	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
93381-15010	SCREW	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
93385-16012	New Genuine Part	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
93385-16016	New Genuine Part	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
94120-40800	Nut(For Clutch Pedal Stopper)	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
94511-00800	WASHERSPRING	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
94612-40601	Washer	Winch ([09.2007 - ] (0709- )VDJ200..LHD..6FC..GXR,VX..GEN ; (0709 - )GRJ200,URJ200..LHD..5F,5FC,8F C)
