Search › Model › URJ150

URJ150

Lexus GX · 2009 · 7,000 parts · 272 categories

7,000 items

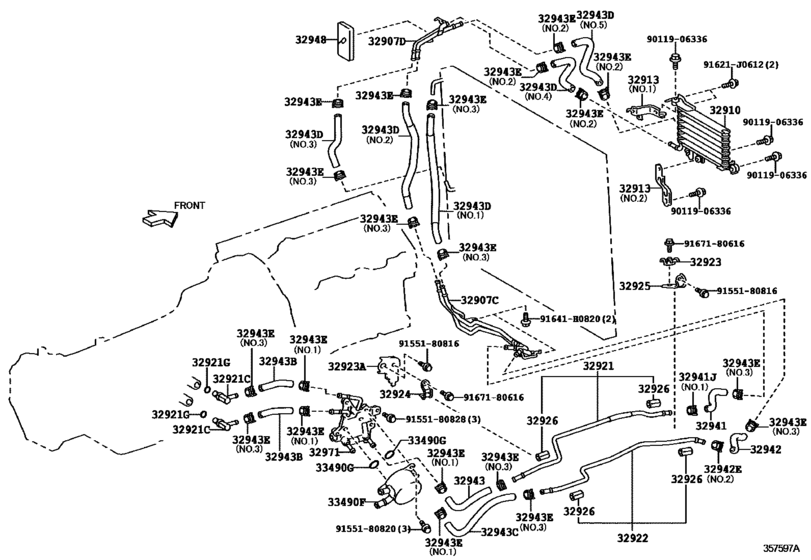

Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150) 46

#	OEM	Part name
32907	32907-60300	Tube, Oil Cooler - OIL COOLER W/O HOSE, NO.1
32907	32907-60301	TUBE SUBASSY OIL
32907	32907-60290	Tube Sub-Assy, Oil Cooler W/o Hose, No.2
32910	32910-60170	Cooler Assy, Oil
32910	32910-60171	Cooler Assy, Oil
32913	32913-60260	Bracket, Oil Cooler
32913	32913-60270	Bracket, Oil Cooler
32921	32921-35420	Tube, Oil Cooler Inlet, No.1
32921	90407-14033	Union(For Oil Cooler Tube)
32921	90407-14034	Union(For Oil Cooler Tube)
32921	90301-11030	Ring, O(For Oil Cooler Tube Union)
32921	32921-60420	Tube, Oil Cooler Inlet, No.1
32922	32922-35450	Tube, Oil Cooler Outlet, No.1
32922	32922-60450	Tube, Oil Cooler Outlet, No.1
32923	90462-12074	Clamp, Automatic Transmission Oil Cooler Tube
32923	32923-35100	Clamp, Automatic Transmission Oil Cooler Tube
32923	32923-60150	Clamp, Automatic Transmission Oil Cooler Tube
32924	32929-50010	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32925	32925-35060	Clamp, Oil Cooler Tube, No.3
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32941	32941-35310	Hose, Oil Cooler Inlet, No.1
32941	32941-60380	Hose, Oil Cooler Inlet, No.1
32941	90466-16004	Clip(For Ventilation Hose No.2)
32942	32942-35130	Hose, Oil Cooler Outlet, No.1
32942	32942-60540	Hose, Oil Cooler Outlet, No.1
32943	32943-35030	Hose, Transmission Oil Cooler, No.1
32943	32943-34040	Hose, Transmission Oil Cooler, No.1
32943	32943-35020	Hose, Transmission Oil Cooler, No.3
32943	32943-35040	Hose, Transmission Oil Cooler, No.4
32943	32943-35050	Hose, Transmission Oil Cooler, No.4
32943	32943-35060	Hose, Transmission Oil Cooler, No.4
32943	32943-60610	Hose, Transmission Oil Cooler, No.4
32943	32943-60620	Hose, Transmission Oil Cooler, No.4
32943	32943-60590	Hose, Transmission Oil Cooler, No.2
32943	32943-60410	Hose, Transmission Oil Cooler, No.3
32948	32948-60020	Seal, Oil Cooler Tube
32971	32971-35010	Thermostat, Transmission Oil
33490	33493-34030	Cooler Assy, Transmission Oil
33490	90301-20012	Ring, O (For Transmission Oil Cooler)
91621	91621-J0612	BOLT W-WASHER
91641	91641-H0820	Bolt
9011906336	90119-06336	SCREW
9155180816	91551-80816	Bolt(For Manual Transmission Oil Separator)
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9155180828	91551-80828	Bolt, W/washer (For Floor Shift)
9167180616	91671-80616	BOLT FLANGE

OEM	Part name	Category
32907-60290	Tube Sub-Assy, Oil Cooler W/o Hose, No.2	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32907-60300	Tube, Oil Cooler - OIL COOLER W/O HOSE, NO.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32907-60301	TUBE SUBASSY OIL	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32910-60170	Cooler Assy, Oil	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32910-60171	Cooler Assy, Oil	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32913-60260	Bracket, Oil Cooler	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32913-60270	Bracket, Oil Cooler	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32921-35420	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32921-60420	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32922-35450	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32922-60450	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32923-35100	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32923-60150	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32925-35060	Clamp, Oil Cooler Tube, No.3	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32929-50010	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32941-35310	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32941-60380	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32942-35130	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32942-60540	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32943-34040	Hose, Transmission Oil Cooler, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32943-35020	Hose, Transmission Oil Cooler, No.3	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32943-35030	Hose, Transmission Oil Cooler, No.1	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32943-35040	Hose, Transmission Oil Cooler, No.4	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32943-35050	Hose, Transmission Oil Cooler, No.4	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32943-35060	Hose, Transmission Oil Cooler, No.4	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32943-60410	Hose, Transmission Oil Cooler, No.3	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32943-60590	Hose, Transmission Oil Cooler, No.2	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32943-60610	Hose, Transmission Oil Cooler, No.4	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32943-60620	Hose, Transmission Oil Cooler, No.4	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32948-60020	Seal, Oil Cooler Tube	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
32971-35010	Thermostat, Transmission Oil	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
33493-34030	Cooler Assy, Transmission Oil	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
90119-06336	SCREW	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
90301-11030	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
90301-20012	Ring, O (For Transmission Oil Cooler)	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
90407-14033	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
90407-14034	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
90462-12074	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
90466-16004	Clip(For Ventilation Hose No.2)	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
91551-80828	Bolt, W/washer (For Floor Shift)	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
91621-J0612	BOLT W-WASHER	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
91641-H0820	Bolt	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
91671-80616	BOLT FLANGE	Oil Cooler & Tube (Atm) ([11.2009 - ] W(AIR OIL COOLER) (0911- )URJ150)
