| 82212-48020 |
Harness Assy, Air Conditioner, No.2 |

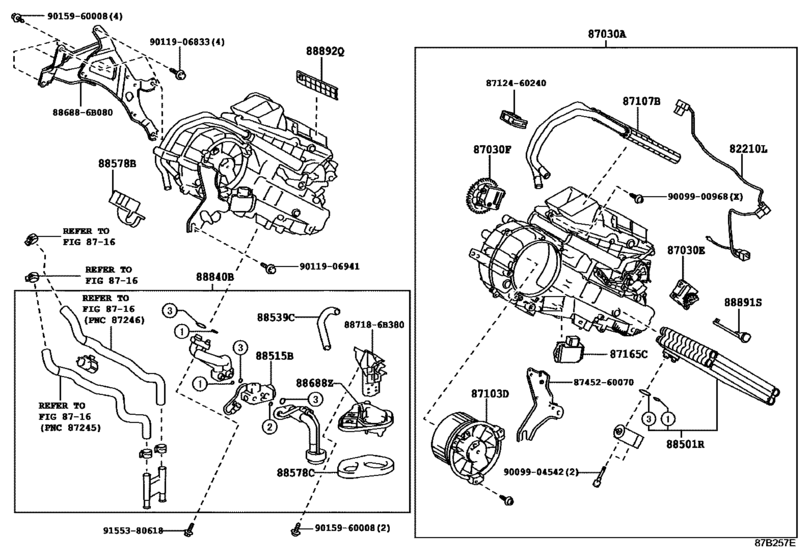

Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 82212-48021 |
Harness Assy, Air Conditioner, No.2 |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 87030-60060 |
Unit Assy, Cooling, Rear |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 87103-28110 |
Motor Sub-Assy, Blower W/fan(For Rear) |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 87103-28111 |
Motor Sub-Assy, Cooling Unit, W/fan |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 87106-28170 |
Damper Servo Sub-Assy, Rear Cooling Unit, No.1 |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 87106-28180 |
Servo Sub-Assy, Damper(For Mode) |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 87106-58030 |
Damper Servo Sub-Assy, Rear Cooling Unit, No.2 |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 87107-60420 |
Unit Sub-Assy, Heater Radiator |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 87124-60240 |
Clamp, Heater |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 87165-28020 |
Control, Blower Motor |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 87452-60070 |
Bracket, Fuel Magnet Valve |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88501-28360 |
Evaporator Sub-Assy (Rear) |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88515-60220 |
Valve, Rear Cooling Unit Expansion |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88539-60290 |
Hose, Cooler Unit Drain, No.2 |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88578-60450 |
Packing, Cooling Unit, No.1 |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88578-60510 |
Packing, Cooling Unit, No.2 |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88688-6B080 |
Bracket, Cooler Diaphragm |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88688-6B230 |
Bracket |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88718-6B380 |
Pipe, Cooler Refrigerant Suction, No.2 |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88840-60160 |
Accessory Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88840-60161 |
Accessory Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88891-20240 |
Cover, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 88892-28020 |
Plate, Cooler |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 90099-00968 |
Screw(For Air Conditioner Unit) |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 90099-04542 |
Bolt(For Cooler Expansion Valve) |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 90119-06833 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 90119-06941 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 90159-60008 |
SCREW |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
| 91553-80618 |
Direct |
Heating & Air Conditioning - Cooler Unit ([11.2009 - ] REAR (0911- )URJ150) |
