Search › Model › URJ150

URJ150

Lexus GX · 2009 · 7,000 parts · 272 categories

7,000 items

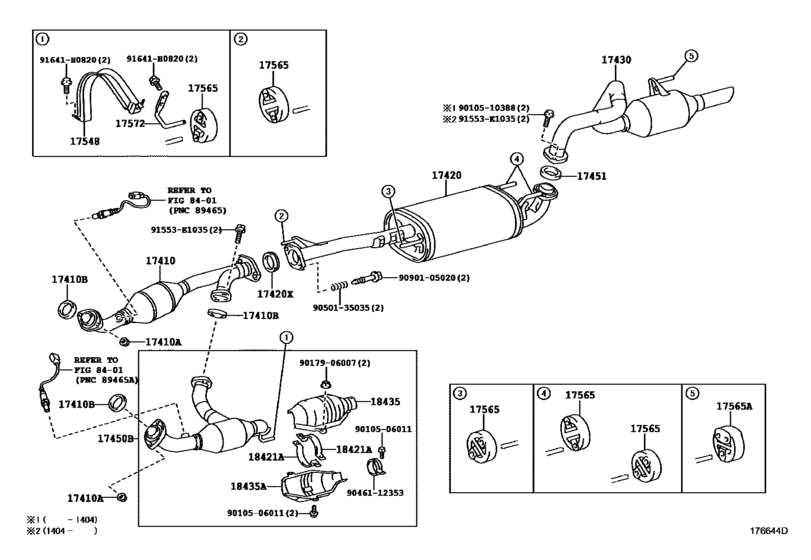

Exhaust Pipe ([11.2009 - ] (0911- )1URFE) 28

#	OEM	Part name
0	91553-E1035	BOLT FLANGE
17410	17410-38390	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06089	Gasket, Exhaust Pipe
17410	17410-38580	Pipe Assy, Exhaust, Front
17420	17420-38160	Pipe Assy, Exhaust, Center
17420	17451-31020	Gasket, Exhaust Pipe
17420	17420-38150	Pipe Assy, Exhaust, Center
17430	17430-38650	Pipe Assy, Exhaust, Tail
17430	17430-38630	Pipe Assy, Exhaust, Tail
17450	17450-38040	Pipe Assy, Exhaust, Front No.2
17450	17450-38160	Pipe Assy, Exhaust, Front No.2
17451	90917-06090	Gasket, Exhaust Pipe
17548	17548-31011	Bracket, Exhaust Pipe Stopper
17565	17565-22040	Support, Exhaust Pipe, No.1
17565	17565-31050	Support, Exhaust Pipe, No.1
17572	17572-38080	Bracket, Exhaust Pipe No.1 Support
18421	18421-38040	Stay, Converter Protector, Lh
18435	18435-38050	Protector, Catalytic Converter
18435	18445-38020	Protector, Monolithic Converter
91641	91641-H0820	Bolt
9010506011	90105-06011	BOLT
9010510388	90105-10388	BOLT
9017906007	90179-06007	Nut
9046112353	90461-12353	Clamp, Exhaust Pipe
9050135035	90501-35035	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)

OEM	Part name	Category
17410-38390	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17410-38580	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17420-38150	Pipe Assy, Exhaust, Center	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17420-38160	Pipe Assy, Exhaust, Center	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17430-38630	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17430-38650	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17450-38040	Pipe Assy, Exhaust, Front No.2	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17450-38160	Pipe Assy, Exhaust, Front No.2	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17451-31020	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17548-31011	Bracket, Exhaust Pipe Stopper	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17565-31050	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
17572-38080	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
18421-38040	Stay, Converter Protector, Lh	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
18435-38050	Protector, Catalytic Converter	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
18445-38020	Protector, Monolithic Converter	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
90105-06011	BOLT	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
90105-10388	BOLT	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
90179-06007	Nut	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
90461-12353	Clamp, Exhaust Pipe	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
90917-06089	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
90917-06090	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
91553-E1035	BOLT FLANGE	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
91641-H0820	Bolt	Exhaust Pipe ([11.2009 - ] (0911- )1URFE)
