Search › Model › URJ150
URJ150

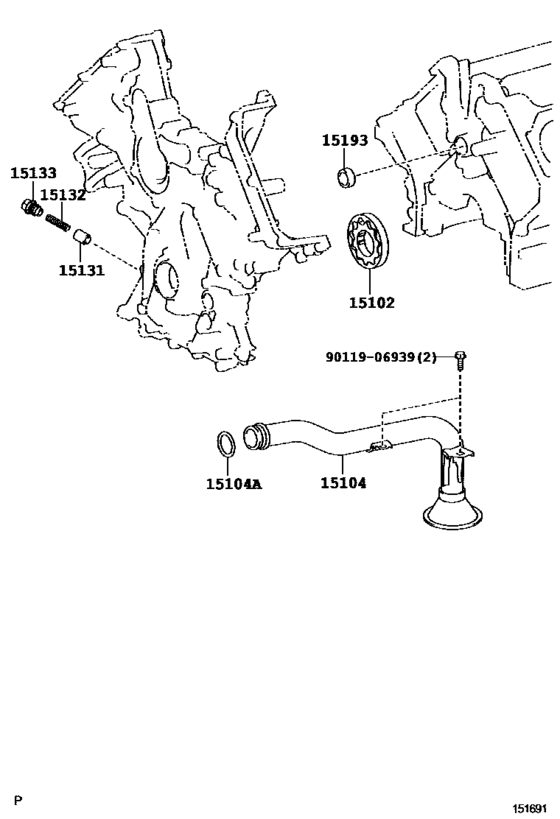

Engine Oil Pump ([11.2009 - ] (0911- )1URFE) 9
| # | OEM | Part name |
|---|---|---|
| 15102 | 15103-38060 | Rotor Set, Oil Pump |
| 15104 | 15104-0S010 | Strainer Sub-Assy, Oil |
| 15104 | 96721-24031 | Ring, O |
| 15104 | 90301-A0032 | Ring, O(For Oil Strainer) |
| 15131 | 15131-38070 | Valve, Oil Pump Relief |
| 15132 | 15132-38070 | Spring, Oil Pump Relief Valve |
| 15133 | 15133-38070 | Plug, Oil Pump Relief Valve |
| 15193 | 15193-38010 | Gasket, Oil Pump |
| 9011906939 | 90119-06939 | Bolt, Hood Lock |
| OEM | Part name | Category |
|---|---|---|
| 15103-38060 | Rotor Set, Oil Pump | Engine Oil Pump ([11.2009 - ] (0911- )1URFE) |
| 15104-0S010 | Strainer Sub-Assy, Oil | Engine Oil Pump ([11.2009 - ] (0911- )1URFE) |
| 15131-38070 | Valve, Oil Pump Relief | Engine Oil Pump ([11.2009 - ] (0911- )1URFE) |
| 15132-38070 | Spring, Oil Pump Relief Valve | Engine Oil Pump ([11.2009 - ] (0911- )1URFE) |
| 15133-38070 | Plug, Oil Pump Relief Valve | Engine Oil Pump ([11.2009 - ] (0911- )1URFE) |
| 15193-38010 | Gasket, Oil Pump | Engine Oil Pump ([11.2009 - ] (0911- )1URFE) |
| 90119-06939 | Bolt, Hood Lock | Engine Oil Pump ([11.2009 - ] (0911- )1URFE) |
| 90301-A0032 | Ring, O(For Oil Strainer) | Engine Oil Pump ([11.2009 - ] (0911- )1URFE) |
| 96721-24031 | Ring, O | Engine Oil Pump ([11.2009 - ] (0911- )1URFE) |
