Search › Model › UPK65

UPK65

Toyota SEQUOIA · 2009 · 5,744 parts · 223 categories

5,744 items

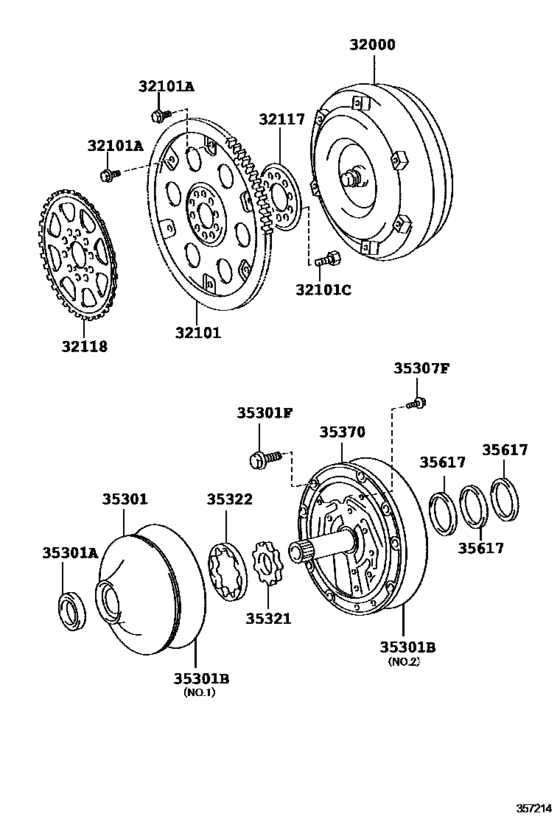

Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#) 31

#	OEM	Part name
32000	32000-0C050	Converter Assy, Torque
32000	32000-35230	Converter Assy, Torque
32101	32101-50021	Gear Sub-Assy, Drive Plate & Ring
32101	90105-10551	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-10552	Bolt(For Drive Plate & Torque Converter Setting)
32101	90910-02129	Bolt, Flywheel Setting
32101	90910-A2002	Bolt, Hexagon(For Drive Plate Setting)
32117	32117-34010	Spacer, Drive Plate, Rear
32118	32118-34020	Rotor, Crankshaft Angle Sensor
35301	35301-0C010	Body Sub-Assy, Front Oil Pump
35301	90311-38083	Seal, Oil (For Front Oil Pump)
35301	90301-99139	Ring, O (For Front Oil Pump Body)
35301	90301-99148	Ring, O (For Front Oil Pump Body)
35301	90105-08451	Bolt (For Front Oil Pump Setting)
35307	90148-60079	Bolt (For Stator Shaft)
35321	35321-0C010	Gear, Front Oil Pump Drive
35321	35321-0C020	Gear, Front Oil Pump Drive
35321	35321-0C030	Gear, Front Oil Pump Drive
35321	35321-0C040	Gear, Front Oil Pump Drive
35321	35321-0C050	Gear, Front Oil Pump Drive
35321	35321-0C060	Gear, Front Oil Pump Drive
35321	35321-0C070	Gear, Front Oil Pump Drive
35322	35322-0C010	Gear, Front Oil Pump Driven
35322	35322-0C020	Gear, Front Oil Pump Driven
35322	35322-0C030	Gear, Front Oil Pump Driven
35322	35322-0C040	Gear, Front Oil Pump Driven
35322	35322-0C050	Gear, Front Oil Pump Driven
35322	35322-0C060	Gear, Front Oil Pump Driven
35322	35322-0C070	Gear, Front Oil Pump Driven
35370	35370-0C010	Shaft Assy, Stator
35617	35617-50030	Ring, Clutch Drum Oil Seal

OEM	Part name	Category
32000-0C050	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
32000-35230	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
32101-50021	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
32117-34010	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
32118-34020	Rotor, Crankshaft Angle Sensor	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35301-0C010	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35321-0C010	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35321-0C020	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35321-0C030	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35321-0C040	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35321-0C050	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35321-0C060	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35321-0C070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35322-0C010	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35322-0C020	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35322-0C030	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35322-0C040	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35322-0C050	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35322-0C060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35322-0C070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35370-0C010	Shaft Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
35617-50030	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
90105-08451	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
90105-10551	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
90105-10552	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
90148-60079	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
90301-99139	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
90301-99148	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
90311-38083	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
90910-02129	Bolt, Flywheel Setting	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
90910-A2002	Bolt, Hexagon(For Drive Plate Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([04.2009 - ] A760E,A760F (0904- )UPK6#)
