UPK65

Toyota SEQUOIA · 2009 · 5,744 parts · 223 categories

← Back to categories

5,744 items

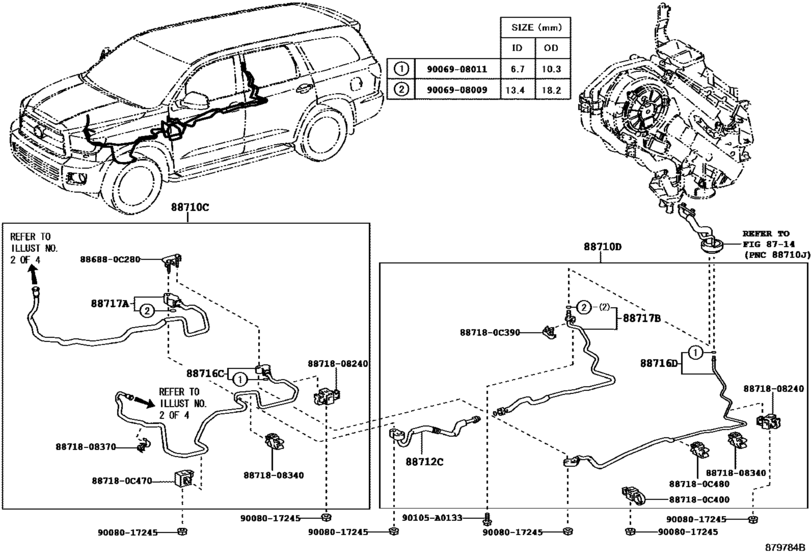

Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- )) 19

#	OEM	Part name
88710	88710-0C140	Tube Assy, Air Conditioner - AIRCONDITIONER
88710	88710-0C150	Tube Assy, Air Conditioner - AIRCONDITIONER
88712	88712-0C150	Hose, Suction
88716	88716-0C280	Pipe, Cooler Refrigerant Liquid, C
88716	88716-0C290	Pipe, Cooler Refrigerant Liquid, D
88717	88717-0C120	Pipe, Cooler Refrigerant Suction, A
88717	88717-0C130	Pipe, Cooler Refrigerant Suction, B
90105	90105-A0133	Bolt(For Cylinder Head Cover)
886880	88688-0C280	Bracket, Cooler Diaphragm
887180	88718-0C390	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0C400	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0C470	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0C480	Pipe, Cooler Refrigerant Suction, No.2
8871808240	88718-08240	Pipe, Cooler Refrigerant Suction, No.2
8871808340	88718-08340	Pipe, Cooler Refrigerant Suction, No.2
8871808370	88718-08370	Pipe, Cooler Refrigerant Suction, No.2
9006908009	90069-08009	GASKET
9006908011	90069-08011	AC ORING
9008017245	90080-17245	New Genuine Part

OEM	Part name	Category
88688-0C280	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88710-0C140	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88710-0C150	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88712-0C150	Hose, Suction	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88716-0C280	Pipe, Cooler Refrigerant Liquid, C	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88716-0C290	Pipe, Cooler Refrigerant Liquid, D	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88717-0C120	Pipe, Cooler Refrigerant Suction, A	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88717-0C130	Pipe, Cooler Refrigerant Suction, B	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88718-08240	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88718-08340	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88718-08370	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88718-0C390	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88718-0C400	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88718-0C470	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
88718-0C480	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
90069-08009	GASKET	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
90069-08011	AC ORING	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
90080-17245	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
90105-A0133	Bolt(For Cylinder Head Cover)	Heating & Air Conditioning - Cooler Piping ([11.2007 - ] REAR PIPING (0711- ))
